TP-Link

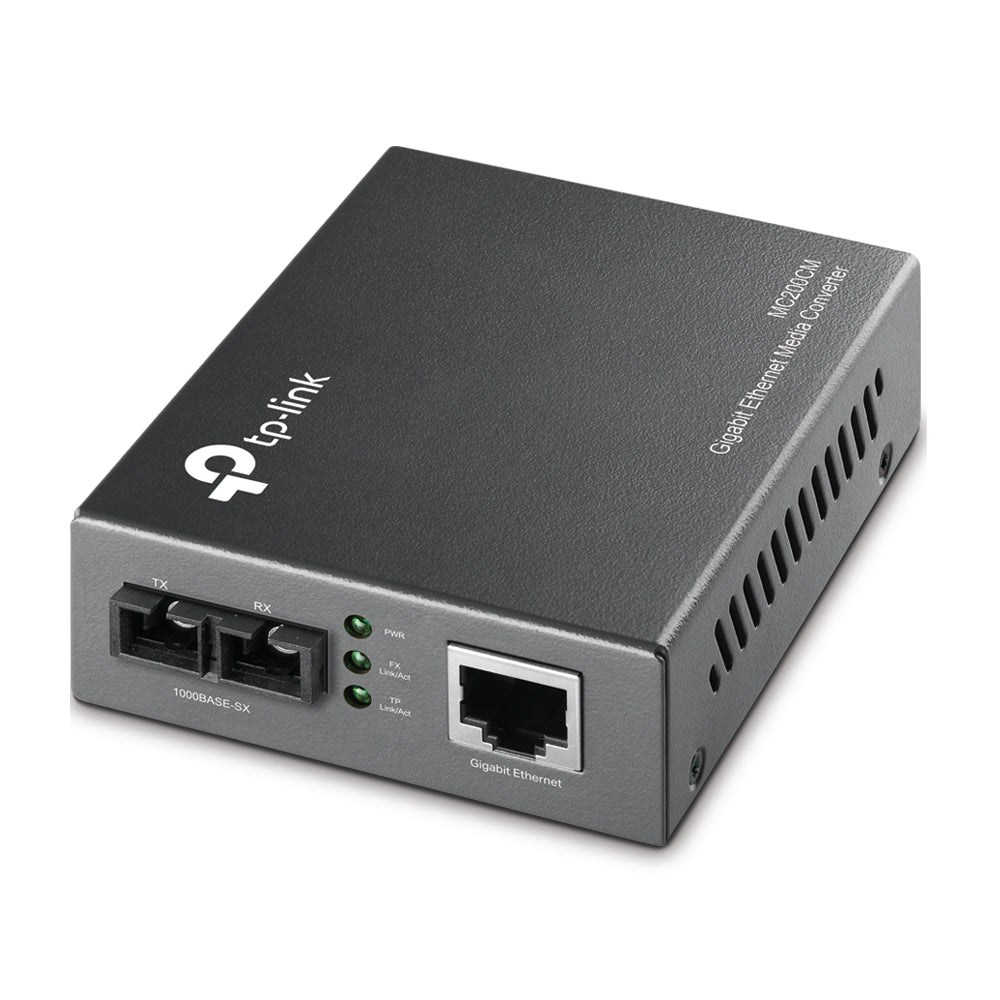

1000Mbps RJ45 to 1000Mbps multi-mode SC fiber Converter
1000Mbps RJ45 to 1000Mbps multi-mode SC fiber Converter
SKU:MC200CM
Low stock: 1 left
Shipping calculated at checkout.
Couldn't load pickup availability
- 1 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Complies with IEEE 802.3ab and IEEE 802.3z
- Extends fiber distance up to 1,800 feet (550m)
| MEDIA CONVERTER & MODULE | |
|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z |
| Basic Function | Auto-negotiation of Half-Duplex / Full-Duplex transfer mode Extends fiber distance up to 1,800 feet (550m) using 50/125um fiber Extends fiber distance up to 720 feet (220m) using 62.5/125um fiber |
| Ports | 1 x 1000M SC/UPC port 1 x 10/100/1000M RJ45 port (Auto MDI/MDIX) |
| Wave Length | 850nm |
| Network Media 1000BASE-SX | Multi-mode Fiber |
| Network Media 1000BASE-T | UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| LED Indicators | PWR, Link/Act |
| Dimensions (W*D*H) | 3.7 × 2.9 × 1.1 in. (95 × 73 × 27 mm) |
| Power Supply | External Power Adapter |
| Max Power Consumption | 1.66W |
| Safety & Emission | FCC, CE, RoHS |
| Environment | Operating Temperature: 0_~40_ (32_~104_) Storage Temperature: -40_~70_ (-40_~158_) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
