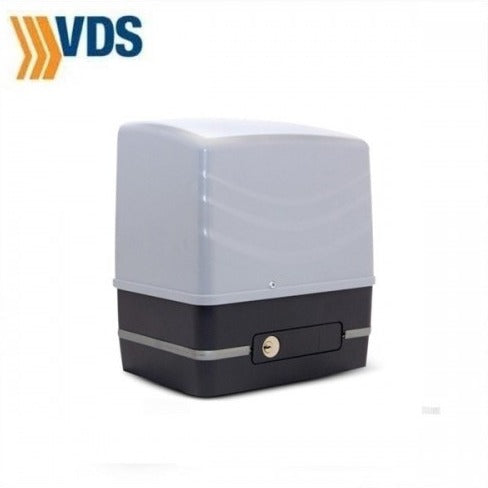

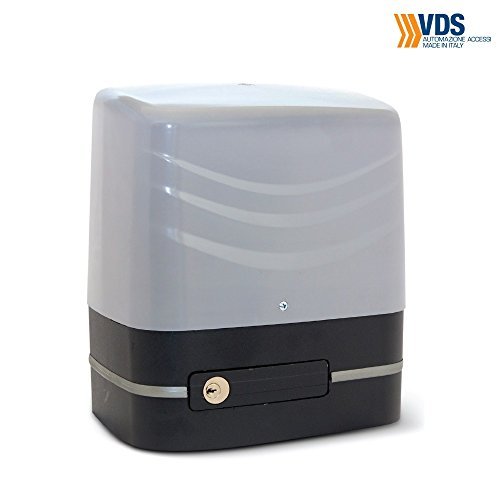

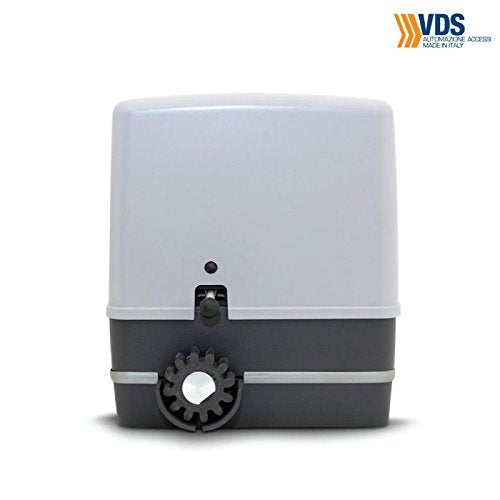

VDS Simply Residential AC Sliding Gate Motor (600kgs) w/built-in Base Bracket Complete Set
VDS Simply Residential AC Sliding Gate Motor (600kgs) w/built-in Base Bracket Complete Set
Low stock: 1 left
VDS SIMPLY-V/CP
VDS Simply Residential AC Sliding gate motor (600kgs) w/built in base bracket complete set c/w :-● 1 pc Sliding Gate Control Panel (3-P-F1)
● 3 pcs 4 Button Transmitter (3-RC12L-TX)
● 1 pc 2 Channel Receiver (3-RC12L-RX)
● 2 pcs Limit Switch Bracket (3-VDS-LSB)
● 4 pcs 1 meter Gear Rack (3-GR-1M)
VDS SIMPLY-VSIMPLY–V Sliding Gates Operator 230V
FEATURES
- Structure in die-cast aluminum, powder painted
- Steel and cast gears obtained from solid
- Lithium grease lubrications of mechanical parts against corrosion, oxidation and rust
- Very quiet operation
- High-performance electric motor
- Release device with customized key
- Available with and without encoder
- Electronic torque control
- Pre- wired and easy programming software
- Available with and without control unit
- Control unit box with air-stop seal against moisture and insects
- Anti-squashing system and slowing down function (en 12453)
- Optional kit battery backup
PERFORMANCE REQUIREMENTS
- Power supply 230Vac
- Operating cycle semi-intensivo 230Vac
- Frequency of use 50% (230Vac)
- Speed 10 mt./min. (230 Vac)
