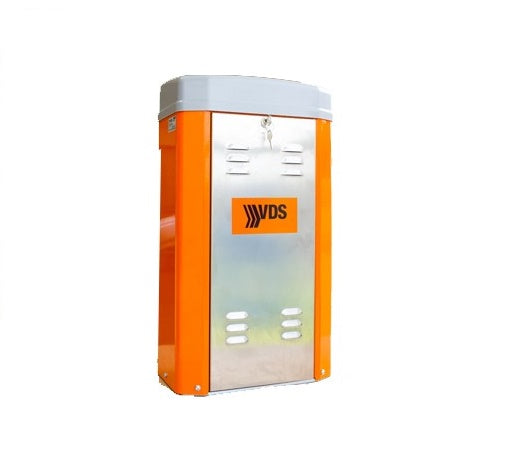

VDS SIMPLY-TOM5000CP - 3 Phase Sliding Gate Operator 415V

VDS SIMPLY-TOM5000CP  3 Phase Sliding gate operator 415V

- 1 pc Sliding Gate Control Panel (3-P-F5)
- 3 pcs 4 Button Transmitter 433Mhz (3-RCS10-TX)
- 1 pc 2 Channel Receiver 433Mhz (3-RCS10-RX)
- 2 pcs Limit Switch Bracket (3-VDS-LSB)
- 2 pcs LS Contactor 240V 3P MC-9b
- 1 pcs LS T.O.R. MT-32/3H7.5 (6A-9A)

Note: Exclude Gear Rack

* Gear Rack model 3-GR-218/1 *

VDS SIMPLY TOM5000

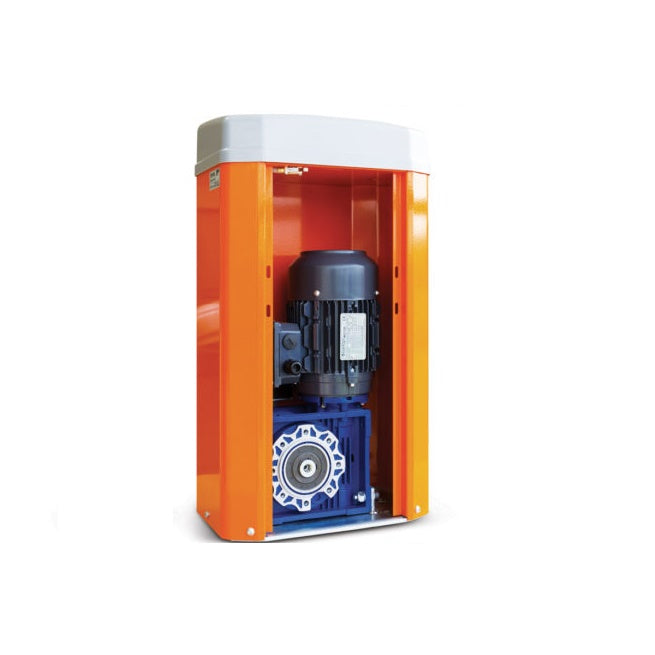

VDS SIMPLY TOM – Sliding Gates Operator 415 Vac

FEATURES

• Structure in painted steel and stainless steel, cover in abs
• Steel and bronze gears obtained from solid
• Air-cooled engine and reduction in bath of oil
• Available with and without control unit
• External control unit with watertight box
• High-performance electric motor
• Available with mechanical limit switches
• Release device with hex wrench
• Very quiet operation
• Motor not provided with clutch, provide with safety equipment
• Safety microswitch motor door
• Three phase motor 415 vac

PERFORMANCE REQUIREMENTS

• Operating cycle intensivo
• Frequency of use 90%
• Speed 8 mt./min.
