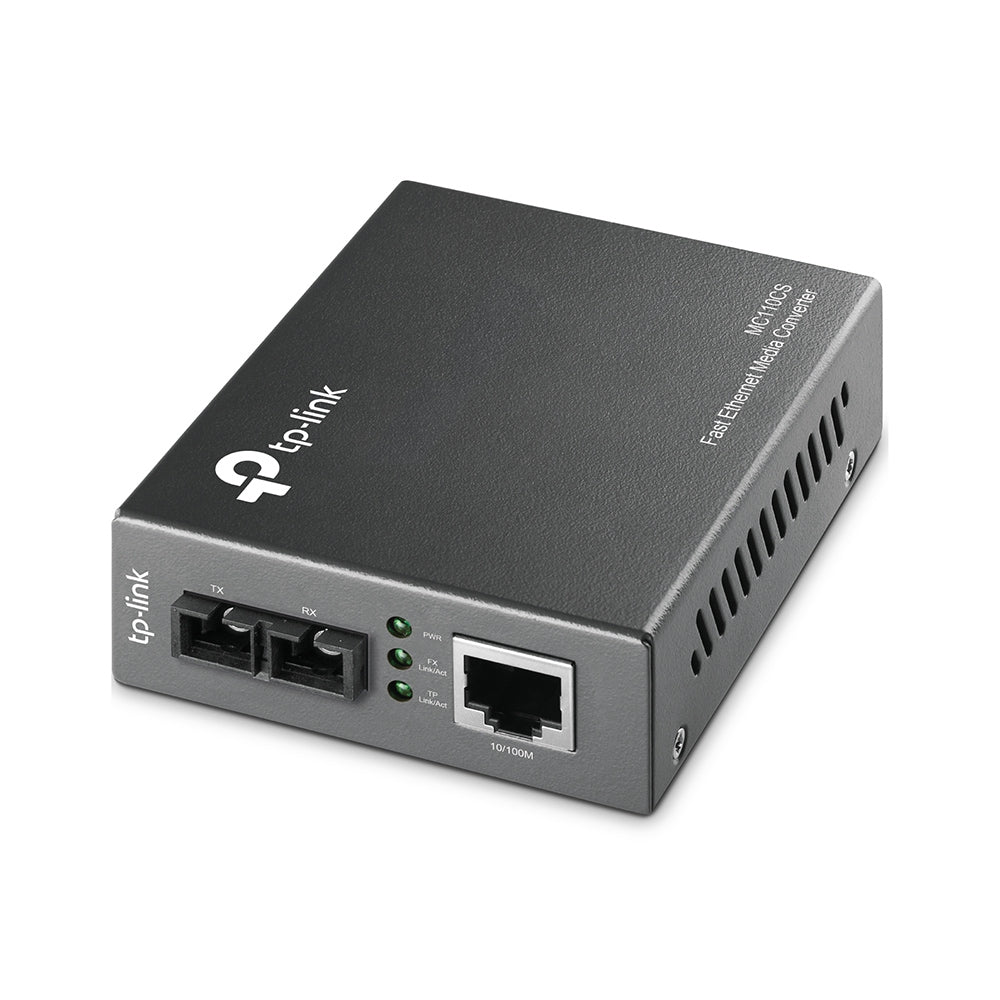

10/100Mbps RJ45 to 100Mbps single-mode SC fiber Converter
10/100Mbps RJ45 to 100Mbps single-mode SC fiber Converter
Low stock: 1 left
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Extends fiber distance up to 12.5 miles (20km)
MEDIA CONVERTER & MODULE | |
---|---|
Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
Basic Function | Half/Full-Duplex transfer mode for FX port Full Duplex Flow Control (IEEE 802.3x) Half Duplex Flow Control (Backpressure) Extends fiber distance up to 12.5 miles (20km) |
Ports | 1 100M SC/UPC port 1 10/100M RJ45 port (Auto MDI/MDIX) |
Wave Length | 1310nm |
Network Media 10BASE-T | UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
Network Media 100BASE-T | UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
Network Media 100BASE-FX | Single-mode Fiber |
LED Indicators | PWR, Link/Act |
Dimensions (W*D*H) | 3.7 × 2.9 × 1.1 in. (95 × 73 × 27 mm) |
Power Supply | External power supply |
Max Power Consumption | 2.4W |
Safety & Emission | FCC, CE, RoHS |
Environment | Operating Temperature: 0_~40_ (32_~104_) Storage Temperature: -40_~70_ (-40_~158_) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
