TP-Link

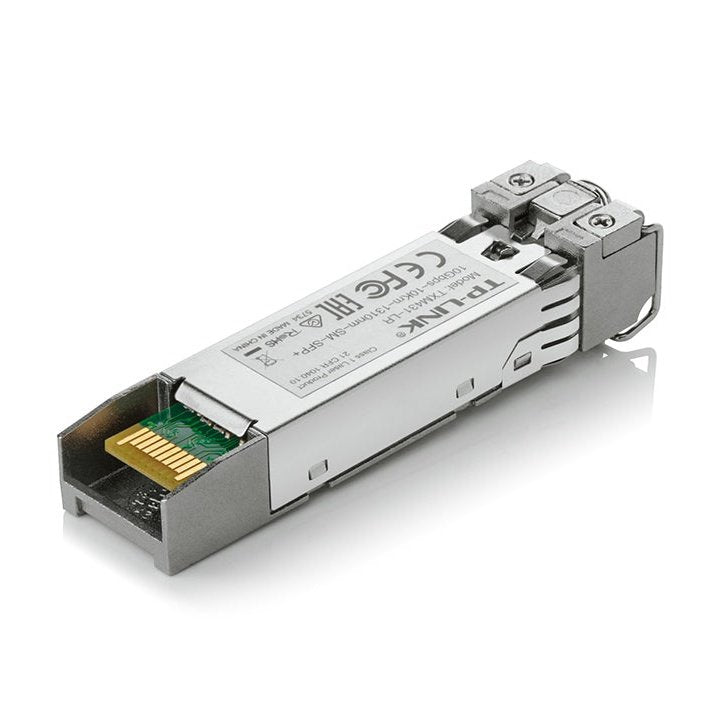

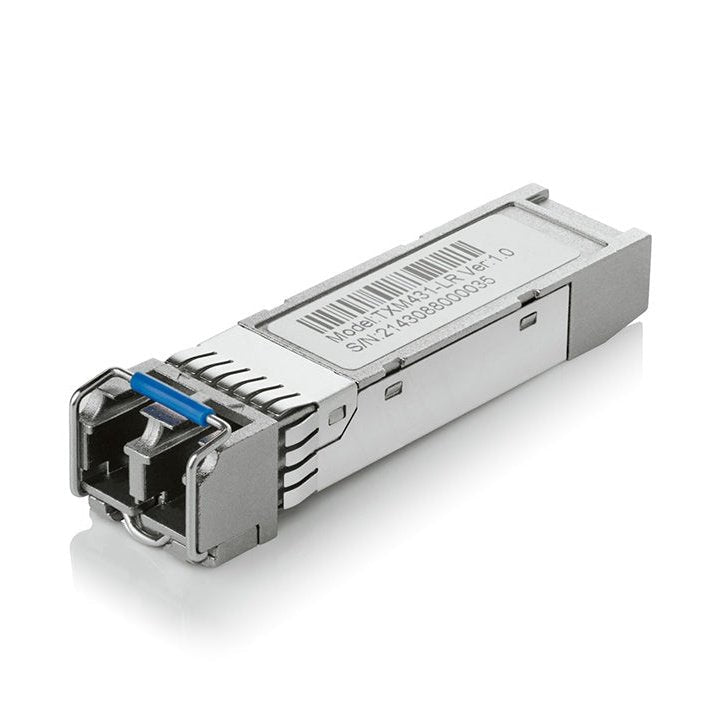

10Gbase-LR SFP+ LC Transceiver
10Gbase-LR SFP+ LC Transceiver
SKU:TXM431-LR
Low stock: 1 left
Shipping calculated at checkout.
Couldn't load pickup availability
- Single-mode SFP+ LC Transceiver
- Hot-Pluggable with maximum flexibility
- Compatible with T3700 series, T2700 series, T1700 series switches and TX432
| TRANSCEIVER | |
|---|---|
| Standards and Protocols | IEEE 802.3ae, CSMA/CD, TCP/IP |
| Wave Length | 1310nm |
| Power Supply | 3.3V |
| Fiber Type | 9/125um Single-mode |
| Max. Cable Length | 10km |
| Data Rate | 10Gbps |
| Port Type | LC/UPC |
| Transmission power | 0.5 dBm(Max) -8.2dBm(Min) |
| Reception power | 0.5dBm(Max) -14.4dBm(Min) |
| Sensitivity | -12.6dBm |
| Safety & Emission | FCC, CE |
| Environment | Operating Temperature: 0_~70_ (32_~158_) Storage Temperature: -40_~80_ (-40_~176_) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
