TP-Link

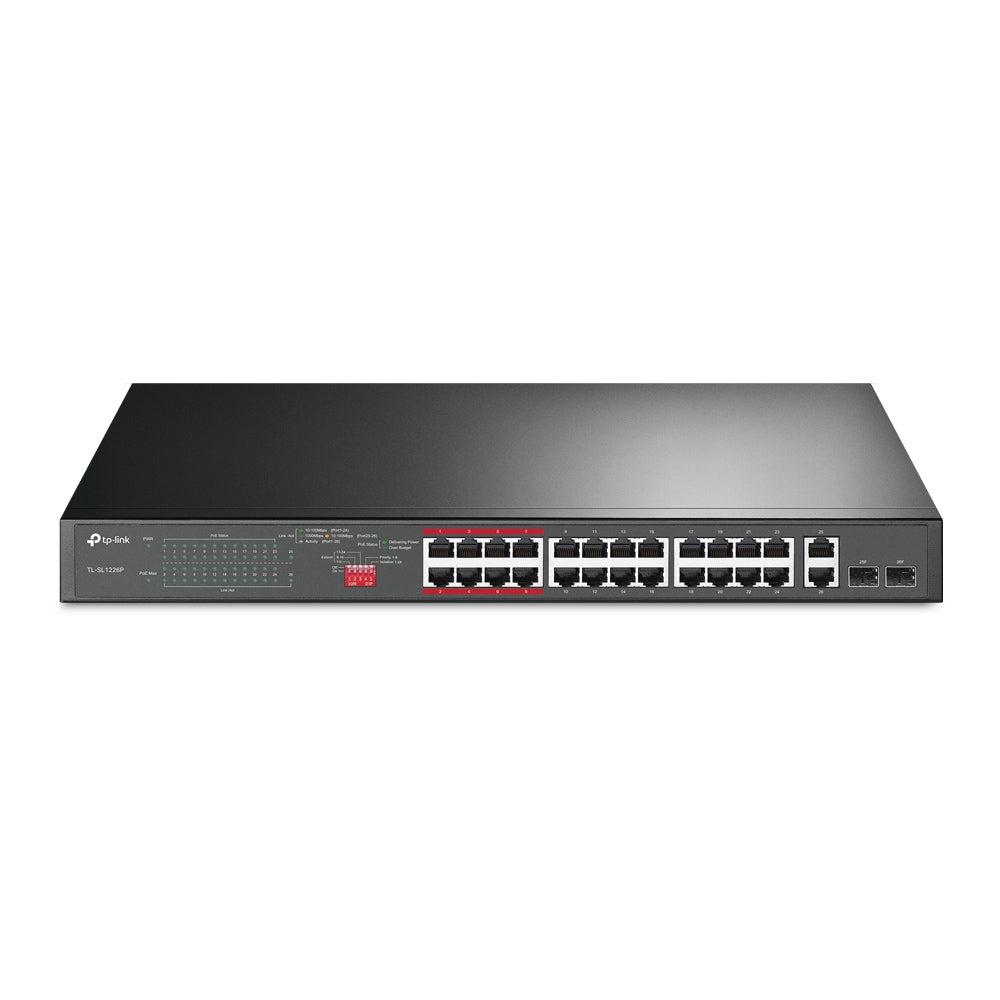

26-Port 10/100Mbps PoE+ Switch
26-Port 10/100Mbps PoE+ Switch
SKU:TL-SL1226P
Low stock: 1 left
Shipping calculated at checkout.
Couldn't load pickup availability
- 24× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots

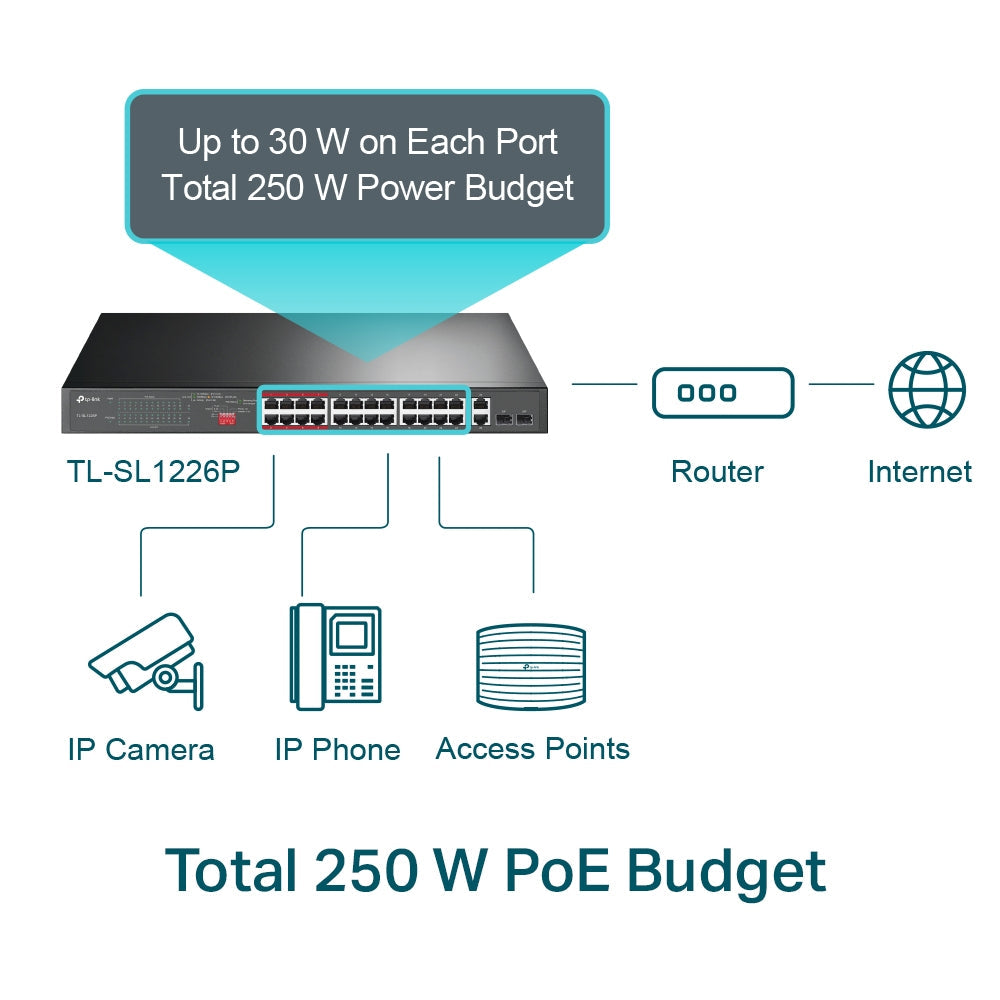

- High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*
- Up to 250 m data and power PoE transmission range under Extend Mode**, ideal for surveillance system

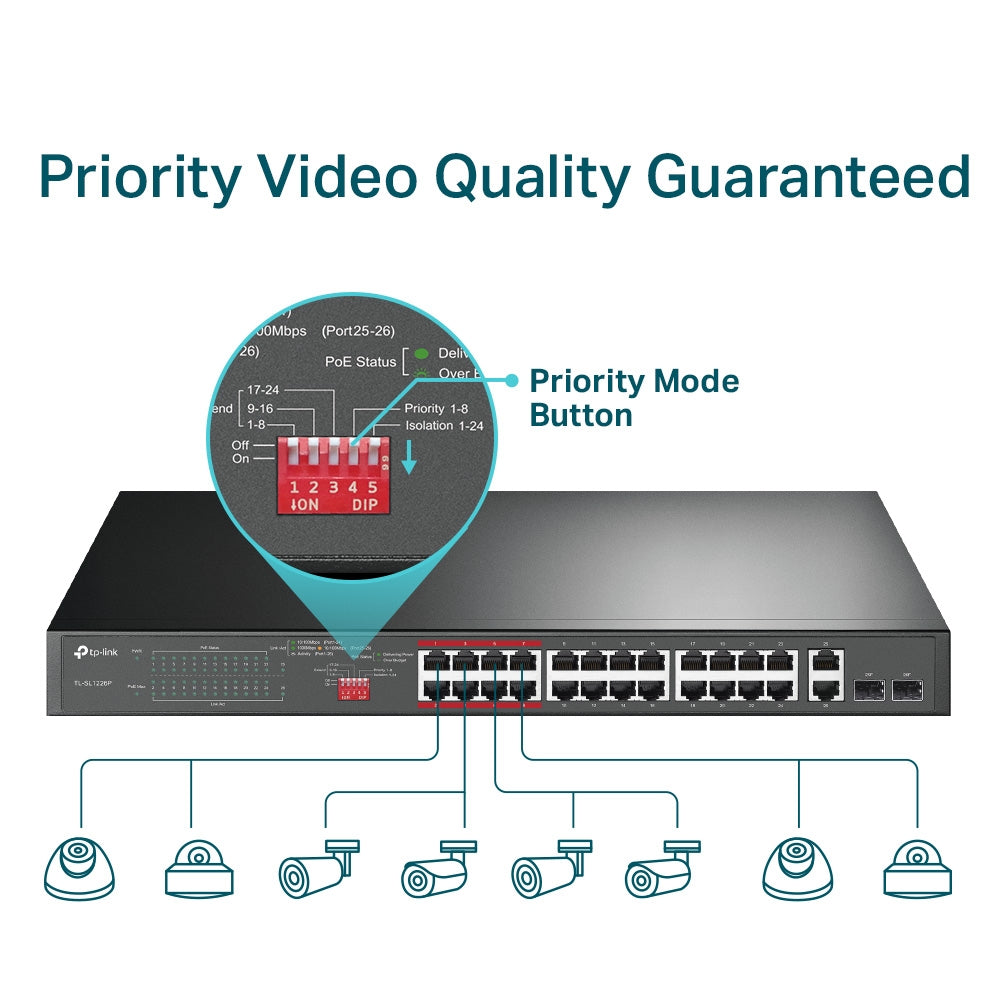

- Priority Mode ensures high priority of ports 1–8 to guarantees the quality of sensitive applications like video monitor
- Isolation Mode allows one-click client traffic separation for higher security and performance

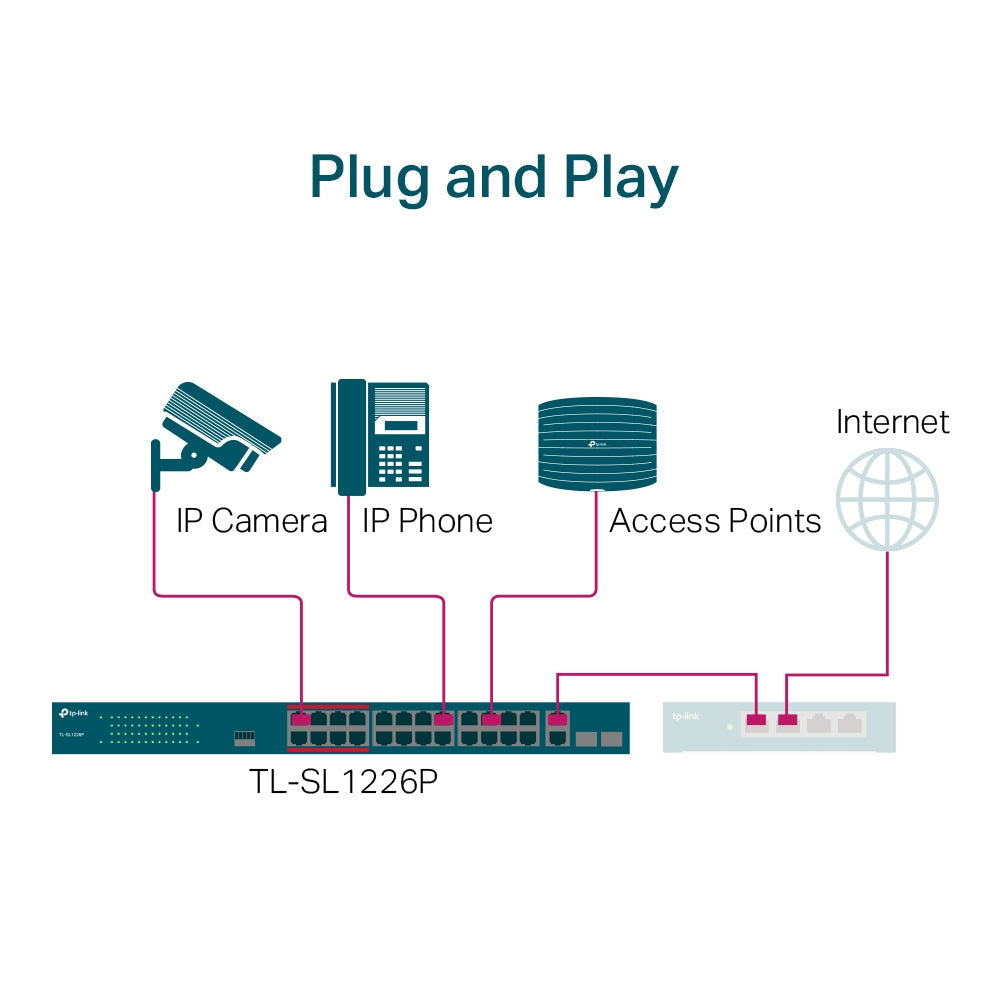

- Plug and play, with no configuration and installation needed
| HARDWARE FEATURES | |
|---|---|
| Interface |
|
| Network Media |
|
| Fan Quantity | 2 Fans |
| Physical Security Lock | Yes |
| Power Supply | 100-240 VAC, 50/60 Hz |
| Backup Bandwidth | 8.8 Gbps |
| PoE+ Ports(RJ45) |
|
| Mac Address Table | 8 K |
| Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
| Max Power Consumption | 18.32 W (220/50 Hz. no PD connected) 294 W (220/50 Hz. with 250 W PD connected) |
| Max Heat Dissipation | 62.47 BTU/h (no PD connected) 1002.54 BTU/h (with 250 W PD connected) |
| SOFTWARE FEATURES | |
|---|---|
| Advanced Features |
|
| Transmission Method | Store-And-Forward |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents |
|
| Environment |
|
