TVT

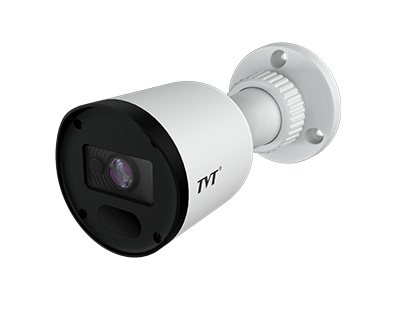

2MP HD Analog IR Bullet Camera

2MP HD Analog IR Bullet Camera

SKU:TD-7420AS2L

Low stock: 1 left

Regular price Login to see prices
Regular price Login to see prices Sale price Login to see prices
Sale Sold out
Shipping calculated at checkout.
TVT 1080P Resolution Turbo HD Output ,2 MPx,up to 15m IR Distance,
Bullet Camera with 3.6MM Lens.
● 1 pc Built-In Cable Management Bracket
FEATURES
  • 1080P real-time image, high resolution, true color
  • AHD / TVI / CVI /CVBS standard and lossless video output
  • Up to 1000 TVL resolution
  • CMOS progressive scan, perfectly capture the moving object
  • Support OSD menu
  • High speed, long distance and real time transmission
  • Auto color to B / W at low illumination
  • Support ICR switch, true day / night, digital WDR
  • Support noise reduction function
  • 10 ~ 20m IR night view distance
  • IP66 ingress protection
  • Support COC
SPECIFICATIONS
Model  TD-7420AS2L
Camera
Image Sensor 1 / 3.2"CMOS
Resolution 2MP
Image Size 1920 x 1080
Video Output AHD / TVI /CVI/CVBS
Image System PAL / NTSC
Electronic Shutter Auto; 1 / 50s ~ 1 / 100000s ( PAL );
1 / 60s ~ 1 / 100000s ( NTSC )
IR Distance 10 ~20 m
Frame Rate 30fps(60Hz); 25fps (50Hz)
Min. Illumination 0 lux (IR ON)
Lens 3.6 mm
Lens Mount M12
S / N Ratio ≥52dB ( AGC OFF )
Ingress Protection IP 66
Functions
Function Control OSD ( COC Control )
Day & Night ICR
Digital WDR Yes
Digital NR Yes
AGC Yes
Auto White Balance Yes
BLC Yes
FLC Yes
Defog No
HLC No
Sharpness Yes
Mirror Yes
Smart IR Yes
Image Setting Yes
Defect Correction Auto
Language Chinese and English
Angle Adjustment Pan: 0°~360°; Tilt: 0°~90°; Rotation: 0°~360°
Others
Power Supply DC12V ( ± 10% )
Power Consumption IR OFF : < 1W; IR ON : < 3W
Working Environment - 30 °C ~ 50 °C, 10 % ~ 90 %(relative humidity)

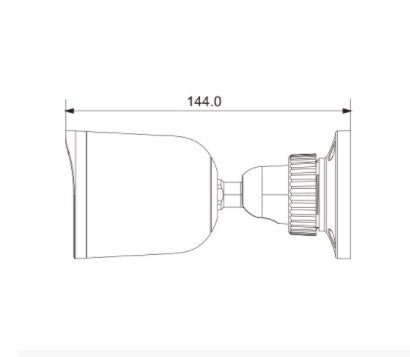

Dimensions ( mm ) Ф 65 x 144
Weight ( net ) Approx. 0.15KG
