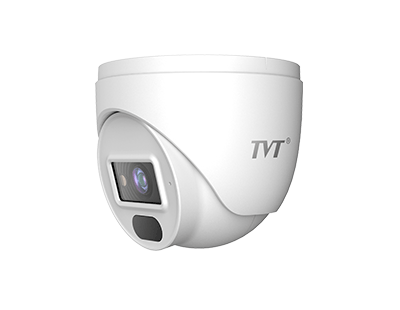

2MP IR Water-proof Turret Network Camera
2MP IR Water-proof Turret Network Camera
SKU:TD-9524S3BL
Low stock: 1 left
Shipping calculated at checkout.
Couldn't load pickup availability
TVT 1080P Network Camera ,2 MPx,up to 15m IR Distance, Dome Camera
with 2.8MM Lens.
FEATURES - 2MP (1920 × 1080) H.265 coding
- Max.resolution: 1920 1080
- ICR auto switch, true day / night, ROI coding
- 3D DNR, digital WDR, HLC, BLC, defog
- 10~20m IR night view distance
- PoE power supply (optional)
- 1CH built-in MIC
- IP 67 ingress protection
- Support dual streams
- Support mobile surveillance by smart phones with iOS and Android OS
- Intelligent analytics: video blur detection, scene change detection, line crossing detection and region intrusion detection
| Model | TD-9524S3BL | |||
| Camera | ||||
| Image Sensor | 1 / 2.8"CMOS | |||
| Image Size | 1920×1080 | |||
| Electronic Shutter | 1 s ~ 1 / 100000 s | |||
| Iris Type | Fixed Iris | |||
| Min. Illumination | 0.0126lux @F1.2, AGC ON; 0 lux with IR | |||
| 0.0462 lux @ F2.2, AGC ON; 0 lux with IR | ||||
| Lens | 2.8 mm @F2.2, H.FoV: 97.8°; V.FoV:52.9°; D.FoV:117.9° | |||
| 3.6 mm @F2.2, H.FoV: 82.5°; V.FoV:44.9°; D.FoV:99.3° | ||||
| Focus | Fixed | |||
| Lens Mount | M12 | |||
| Wide Dynamic Range | Digital WDR | |||
| BLC | Yes | |||
| HLC | Yes | |||
| Defog | Yes | |||
| Digital NR | 3D DNR | |||
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360° | |||
| Image | ||||
| Video Compression | H.265 / H.264 | |||
| H.265 Compression Standard | Main Profile@Leve4.1 High Tier | |||
| Resolution | 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF | |||
| Main Stream | 60Hz : 1080P/720P(1~30fps); 50Hz : 1080P/720P(1~25fps) | |||
| Sub Stream | 60Hz : D1/CIF(1~30fps); 50Hz: D1/CIF/(1~25fps) | |||
| Bit Rate | 64 Kbps ~ 4 Mbps | |||
| Bit Rate Type | VBR / CBR | |||
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast,Wide Dynamic, Sharpness, NR,etc. adjustable through client software or web browser | |||
| ROI | Each ROI to be configured separately | |||
| Audio Compression | G711A/U | |||
| Interfaces | ||||
| Network | RJ45 | |||
| Video Output | No | |||
| Audio | 1CH built-in MIC | |||
| Storage | No | |||
| Reset | No | |||
| Functions | ||||
| Remote Monitoring | Web Browser/TVT NVMS2.0/NVR/mobile APP | |||
| Online Connection | Support simultaneous monitoring for up to 3 users; Support multi-stream real time transmission | |||
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPs, QoS | |||
| Interface Protocol | ONVIF | |||
| Storage | Network remote storage | |||
| Smart Alarm | Motion detection | |||
| Intelligent Analytics | Region intrusion detection, video blur detection, scene change detection, line crossing detection | |||
| General Function | Watermark, IP address filtering, video mask, heartbeat, illegal login lock | |||
| PoE | Yes, IEEE802.3af | |||
| IR Distance | 10 ~ 20m | |||
| Ingress Protection | IP67 | |||
| DORI Distance | ||||
| Lens | Detect | Observe | Recognize | Identify |
| 2.8mm | 43.42m(142.45ft) | 17.37m(56.98ft) | 8.68m(28.47ft) | 4.34m(14.23ft) |
| 3.6mm | 52.28m(171.52ft) | 20.91m(68.6ft) | 10.46m(34.31ft) | 5.23m(17.15ft) |
| Others | ||||
| Power Supply | DC12V(PoE power supply optional) | |||
| Power Consumption | < 4 W | |||
| Operating Environment | - 20 °C ~ 55 °C (-4°F~131°F) | |||
| Humidity: less than 95 % (non-condensing) | ||||

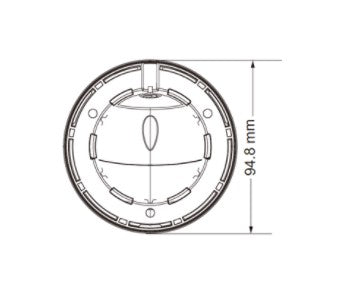

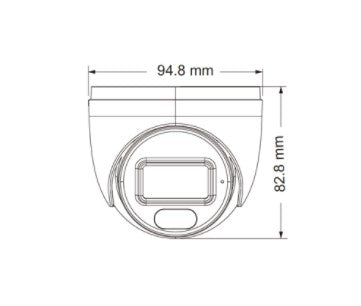

| Dimensions ( mm ) | Φ 94.8 × 82.8 | |||
| Weight ( net ) | Approx. 0.287KG | |||
| Installation | Ceiling mounting ( Wall mounting available with the junction box and bracket ) | |||
| Certificate | CE, FCC | |||
| Environmental Protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
