TP-Link
5-port Fast Ethernet Multi-Wan Router for Small Office and Net Café
5-port Fast Ethernet Multi-Wan Router for Small Office and Net Café
SKU:TL-R470T+
Low stock: 1 left
Shipping calculated at checkout.
Couldn't load pickup availability
- Up to 4 WAN 10/100 ports for multiple Internet connections. Load balancing by bandwidth distribution, by type of application, or simply failover when the main connection is disturbed1
- Web interface portal authentication evaluate and authenticate all the accesses to the Internet for better access and bandwidth management
- Marshals bandwidth resource to specific clients based on their unique application environments
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3, 802.3u, 802.3x, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DDNS |

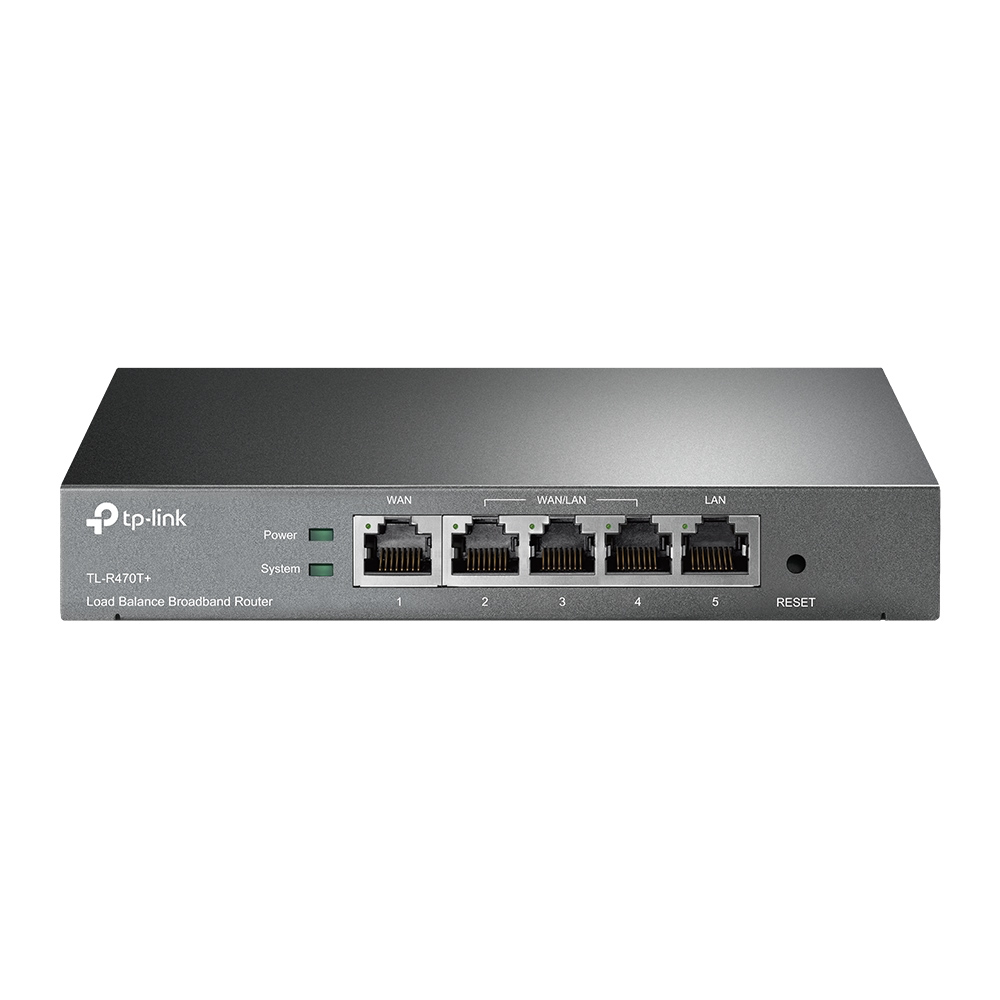

| Interface | 1 Fixed 10/100 Ethernet WAN Port 1 Fixed 10/100 Ethernet LAN Port 3 Changeable 10/100 Ethernet WAN/LAN Ports |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) |
| Button | Reset Button |

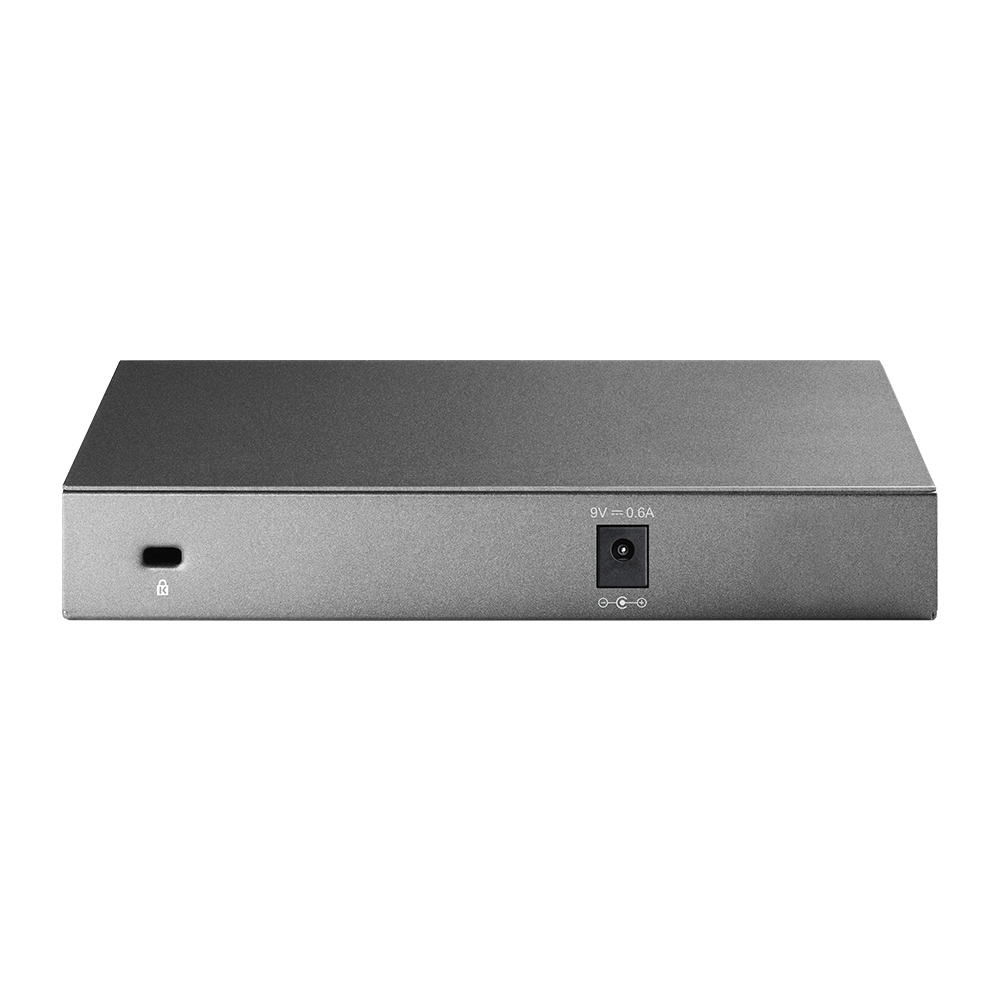

| Power Supply | External 9V/0.6A DC Adapter |
| Flash | 16MB |
| DRAM | 128MB |
| LED | PWR, SYS, WAN, LAN, WAN/LAN |
| Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in. (158 × 101 × 25mm) |
| PERFORMANCE | |
|---|---|
| Concurrent Session | 10K |
| BASIC FUNCTIONS | |
|---|---|
| WAN Connection Type | Static/Dynamic IP, PPPoE, PPTP, L2TP, Dual Access, Bigpond Cable |
| DHCP | DHCP Server/Client, DHCP Address Reservation |
| MAC Clone | Modify WAN/LAN MAC Address |
| Switch Setting | Rate Control, Port Configuration, Port VLAN |
| ADVANCED FUNCTIONS | |
|---|---|
| ACL | IP/MAC/URL/WEB Filtering |
| IGMP | IGMP Proxy/IGMP Snooping |
| Forwarding | Virtual Server, Port Triggering, DMZ |
| Load Balance | Policy Routing, Link Backup |
| Routing | Static Routing |
| Security | FTP/SIP/PPTP/IPsec/H.323 ALG, DoS Defence, Ping of Death, IP/MAC Binding |
| Traffic Control | Bandwidth Control, Session Limit |
| MANAGEMENT | |
|---|---|
| Service | Dynamic DNS, UPnP |
| Maintenance | System Time Setting Daylight Saving Time SNMP Diagnostics Firmware Upgrade Factory Defaults/Reboot Backup/Restore System Log Remote Management System Statistics |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | TL-R470T+ Power Adapter RJ-45 Ethernet Cable Quick Installation Guide |
| Environment | Operating Temperature: 0_~40_ (32_~104_) Storage Temperature: -40_~70_ (-40_~158_) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
