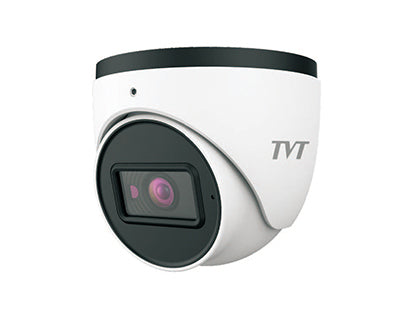

5MP Full-color HD Analog Turret Camera

5MP Full-color HD Analog Turret Camera

SKU:TD-7554AS2

Low stock: 1 left

Regular price Login to see prices
Regular price Login to see prices Sale price Login to see prices
Sale Sold out
Shipping calculated at checkout.
TVT Resolution Turbo HD Output, 5MP,up to 15m IR Distance, Dome
Camera with 3.6MM Lens (4 IN 1 )
FEATURES
  • 5MP @20fps/4MP real-time image, high resolution, true color
  • AHD / TVI / CVI lossless high-defintion video output
  • Up to 1500 TVL resolution
  • CMOS progressive scan, perfectly capture the moving object
  • Support OSD menu
  • High speed, long distance and real time transmission
  • Auto color to B / W at low illumination
  • Support ICR switch, true day / night
  • 20 ~ 30m IR night view distance
  • Support COC
  • Support coaxial audio transmission
  • IP67
SPECIFICATIONS
Model  TD-7554AS2
Camera
Image Sensor 1 / 2.5 "CMOS
Resolution 5MP
Image Size 2560 x 1936
Video Output AHD / TVI /CVI
Image System PAL / NTSC
Electronic Shutter Auto
IR Distance 20 ~30 m
Frame Rate 5MP@20fps /4MP@30fps
Min. Illumination 0 lux with IR
Lens 3.6 mm
Lens Mount M12
S / N Ratio ≥52dB ( AGC OFF )
Protection Grade IP 67
Functions
Function Control OSD ( COC Control )
Day & Night ICR
Digital WDR No
Digital NR Yes, 2D DNR
Global Exposure Yes
Central Exposure Yes
AGC No
Auto White Balance Yes
BLC Yes
Front Light Compensation No
Contrast Yes
Sharpness Yes
Smart IR No
Image Setting Yes
Defect Correction Auto
Language Chinese/English
Angle Adjustment Pan: 0°~360°; Tilt: 0°~75°; Rotation: 0°~360°
Others
Power Supply DC12V ( ± 10% )
Power Consumption IR OFF : < 1W; IR ON : < 3W
Working Environment - 30 °C ~ 50 °C, 10 % ~ 90 %(relative humidity)

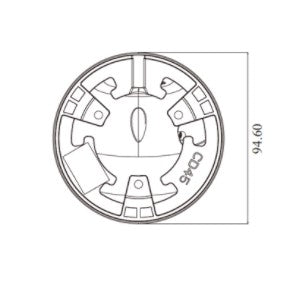

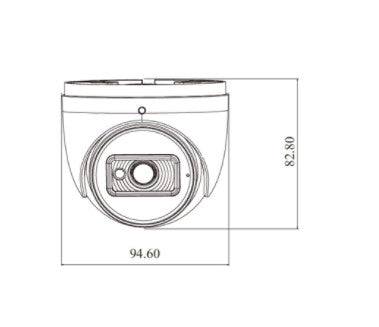

Dimensions ( mm ) Ф 94.6 x 82.8
Weight ( net ) Approx. 0.39KG
