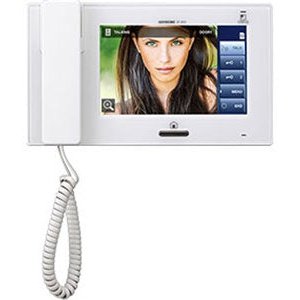

7" Video Master Station with Touchscreen LCD

MASTER STATION WITH TOUCHSCREEN LCD

• Power consumption : 340mA (max.)
• Video Monitor : 7" TFT color LCD
• Type of communication : Open voice hands-free auto-voice actuation, Handset Simultaneous Communication
• Mounting : Surface 3-gang box wall mount or desk mount using MCW-S/A (sold separately)
• Wire Type :
  • Door Station to Master Station: 2-cond., mid cap, solid, non shielded
  • Power Supply to Master Station: 2-cond., mid cap, solid, non shielded
  • Master Station to JP-8Z/Sub Master: Cat-5e or Cat-6
• Wire Distance :
  • Door Station to Master Station: 165' (22AWG), 330' (18AWG)
  • Master Station to Distribution Adaptor: 650'
  • Power Supply to Master Station: 16'(22AWG) 33'(18AWG)
• Door Release Contact : 24V AC/DC, 0.5A (N/O dry closure contact)
• Temperature Rating :  0-40°C (32-104°F)
• Dimensions : 145(H) x 256(W) x 48(D)mm

VIDEO MASTER STATION

Part Number : JP-4MED

• 7″ Touchscreen LCD
• Hands-free (VOX) or handset (duplex) communication
• Selective door release controls
• Room to room calling
• Monitor door station with the touch of a button
• Hearing aid T-Mode compatibility
• Digital pan, tilt, and zoom
• Brightness control
• Connects to JP-4MED or JP-8Z with a single Cat-5e cable
• Internal / Built-In picture memory: record max. 20 calls (6 images per call) with up to 5 calls protected from overwriting
  SD / SDHC card: record max. 1,000 calls (40 images per call) with up to 100 calls protected from overwriting
