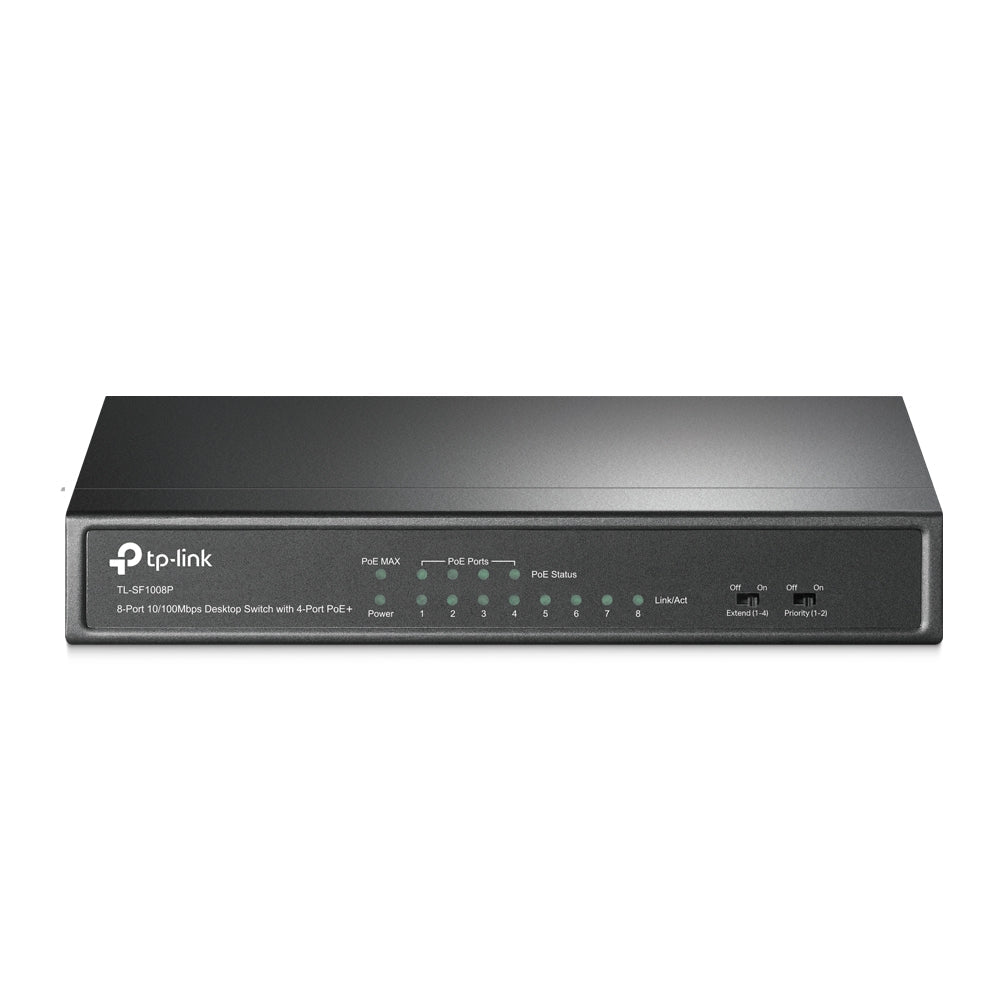

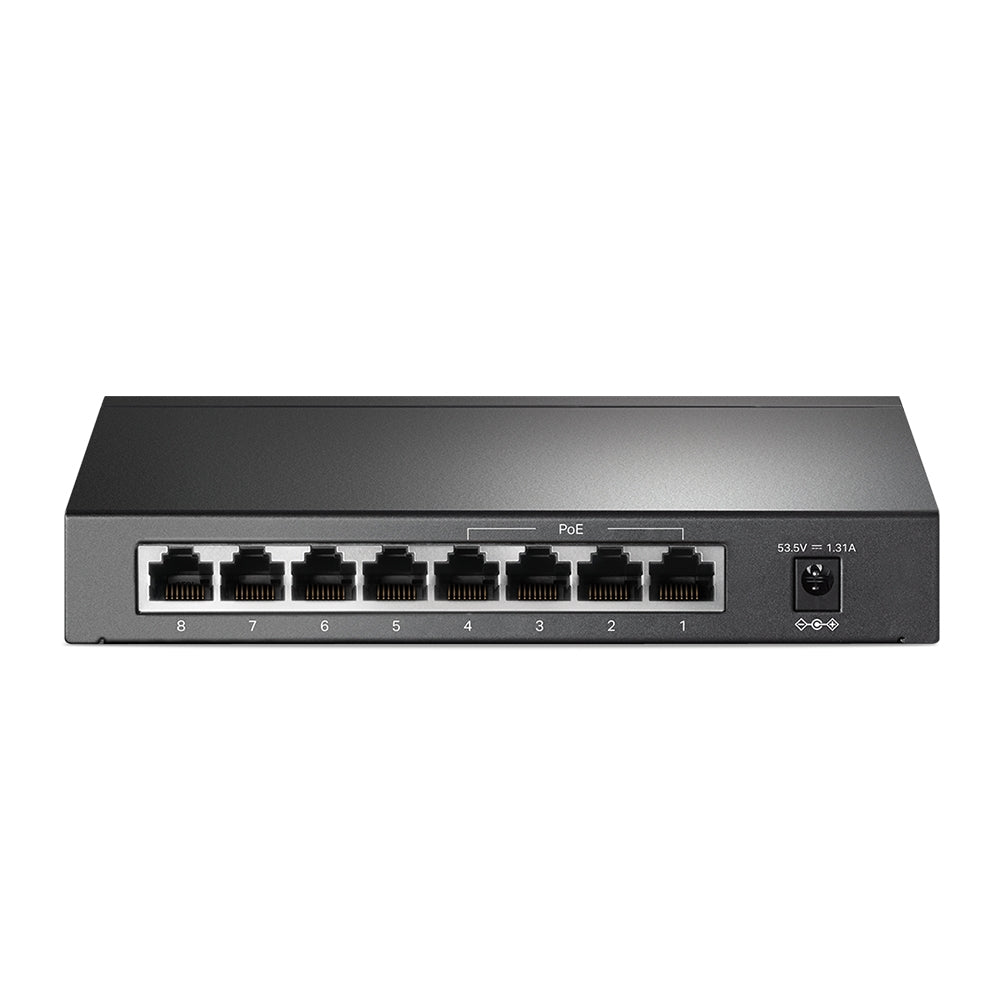

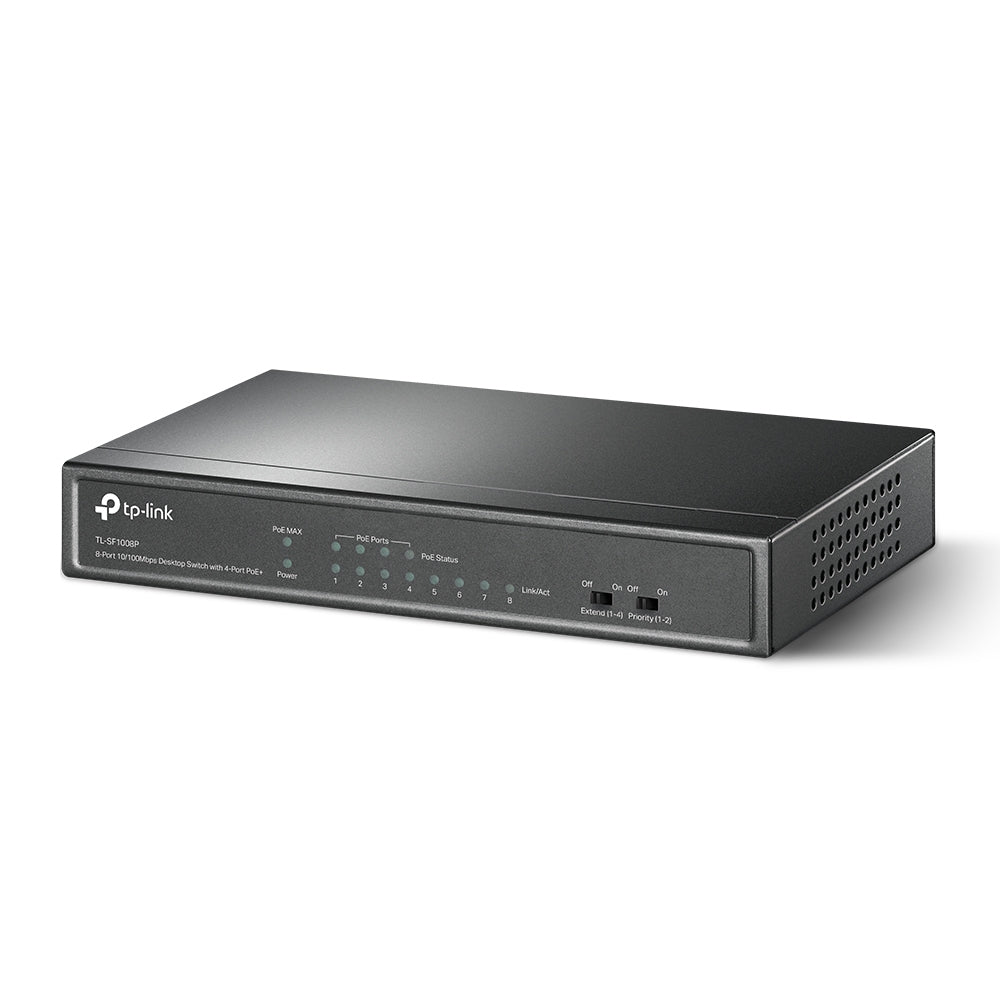

8-port 10/100Mbps Desktop PoE Switch
8-port 10/100Mbps Desktop PoE Switch
Low stock: 1 left
- 8× 10/100 Mbps RJ45 ports
- 4× PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 66 W for all PoE ports*
- Up to 250m data and power transmitting range under Extend Mode**
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
- Plug and play with no configuration required
HARDWARE FEATURES | |
---|---|
Interface | 8× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af/at PoE+ ports) AUTO Negotiation/AUTO MDI/MDIX |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
Fan Quantity | Fanless |
Physical Security Lock | Yes |
External Power Supply | External Power Adapter (Output: 53.5 V DC / 1.31 A) |
Packet Forwarding Rate | 1.1904 Mpps |
PoE Ports (RJ45) | Standard: 802.3 af/at compliant PoE Ports: Ports 1–4 Power Supply: 66 W |
Mac Address Table | 2K |
Jumbo Frame | 2 KB |
Switching Capacity | 1.6 Gbps |
Dimensions ( W x D x H ) | 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm) |
Max Power Consumption | 2.3 W (220 V/ 50 Hz. no PD connected) 73 W (220 V/ 50 Hz. with 66 W PD connected) |
Max Heat Dissipation | 7.84 BTU/h(no PD connected) 248.93 BTU/h(with 66 W PD connected) |
SOFTWARE FEATURES | |
---|---|
Transmission Method | Store-And-Forward |
Advanced Functions | Compatible With IEEE 802.3af/at Compliant PDs Extend Mode Button (Ports 1–4) Priority Mode Button (Ports 1–2) Mac Address Auto-Learning and Auto-Aging IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode |
OTHERS | |
---|---|
Certification | FCC, CE, RoHS |
Package Contents | TL-SF1008P, Power Adapter, Installation Guide |
Environment | Operating Temperature: 0–40 _ (32–104 _) Storage Temperature: -40–70 _ (-40–158 _) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
