TP-Link

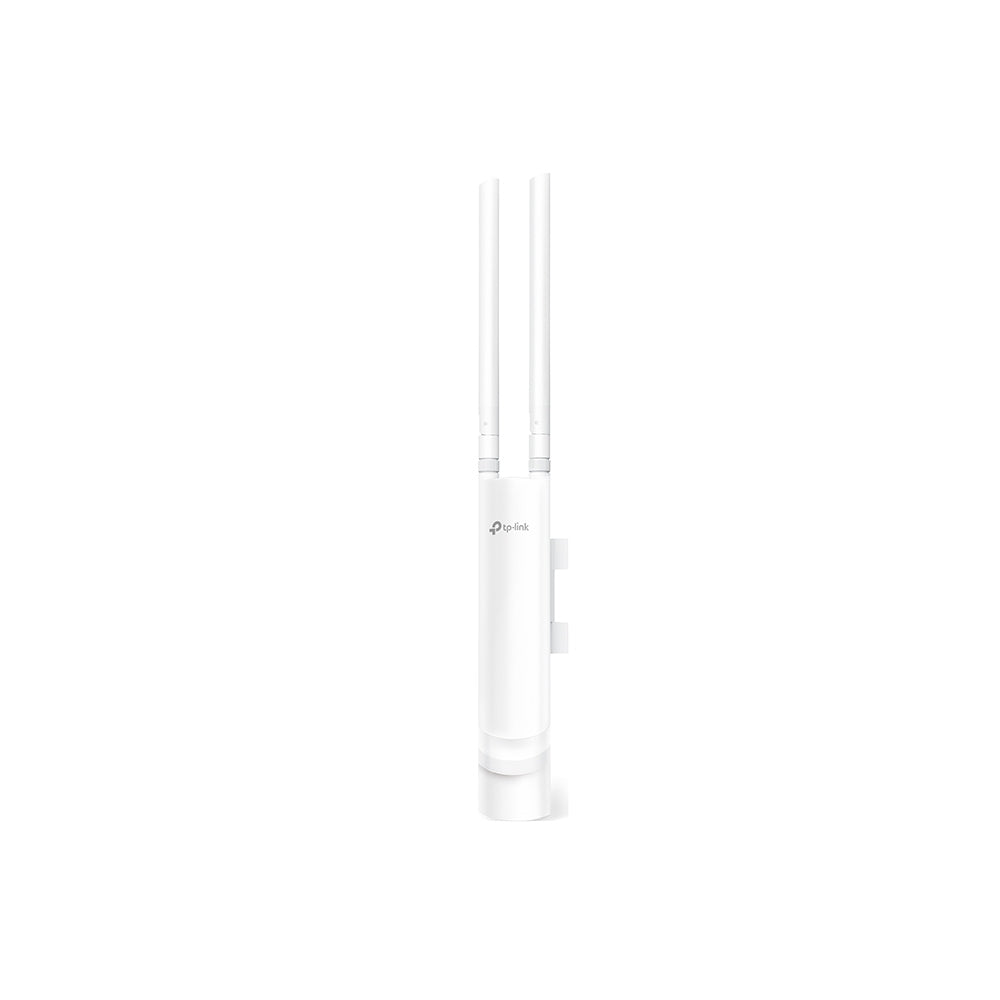

AC1200 Dual Band Wall-Plate Access Point

AC1200 Dual Band Wall-Plate Access Point

SKU:EAP225-Outdoor

Low stock: 1 left

Regular price Login to see prices
Regular price Login to see prices Sale price Login to see prices
Sale Sold out
Shipping calculated at checkout.
  • Durable, weatherproof enclosure for outdoor Wi-Fi applications
  • Up to 1200Mbps1 with 2×2 MIMO technology
  • Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient
  • Supports Seamless Roaming to smooth the video playbacks and voice calls when moving between locations
  • High transmission power and high gain antennas provide a long-range coverage area
  • Cloud centralized management and Omada app for ultra convenience and easy management
  • Captive portal provides a convenient method for guest authentication
  • Facebook Wi-Fi and SMS authentication help to boost your business
  • 802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation
Specifications
HARDWARE FEATURES

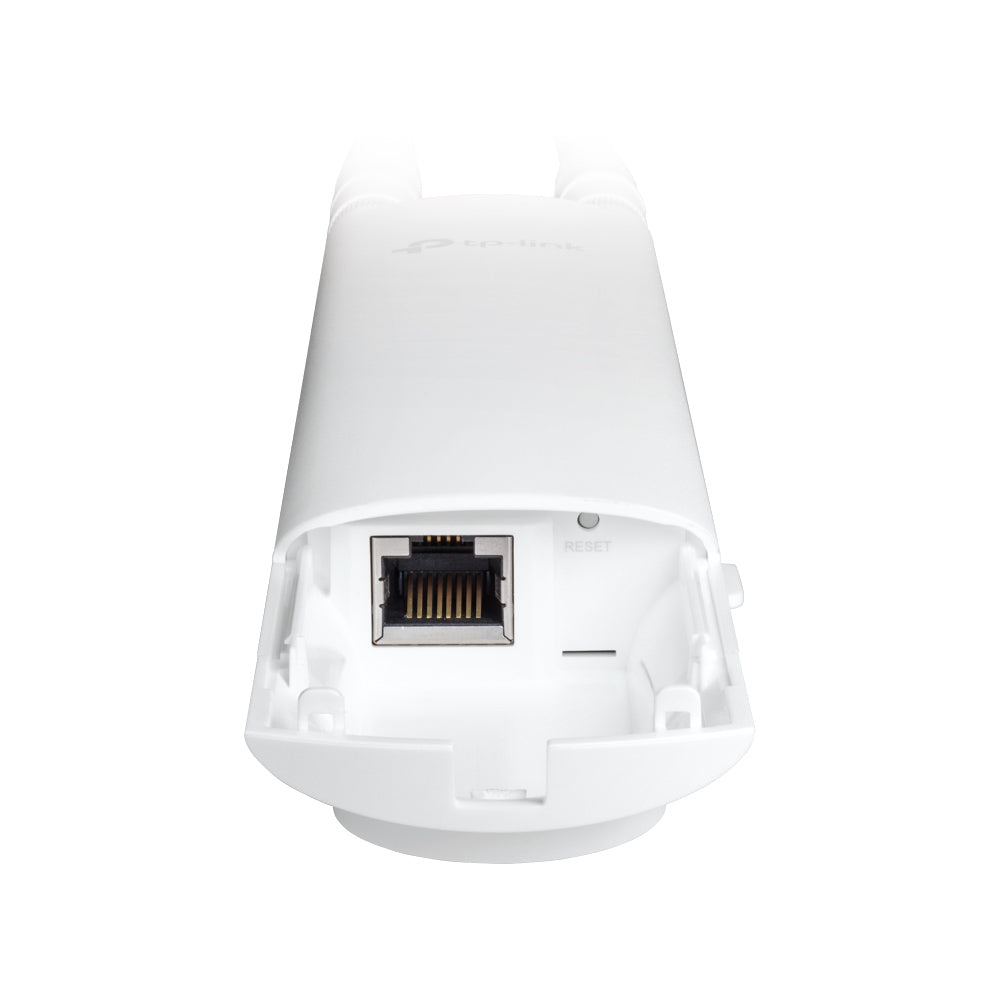

Interface 1x Gigabit Ethernet RJ-45 port
Button Reset
Power Supply 802.3af PoE and 24 Passive PoE(PoE injector included)
Power Consumption 10.5W
Dimensions ( W x D x H ) 8.5 × 1.8 × 1.1in.
(215 × 46 × 27 mm)
Antenna 2.4GHz: 2 × 3dBi
5GHz: 2 × 4dBi
Weatherproof Enclosure IP65

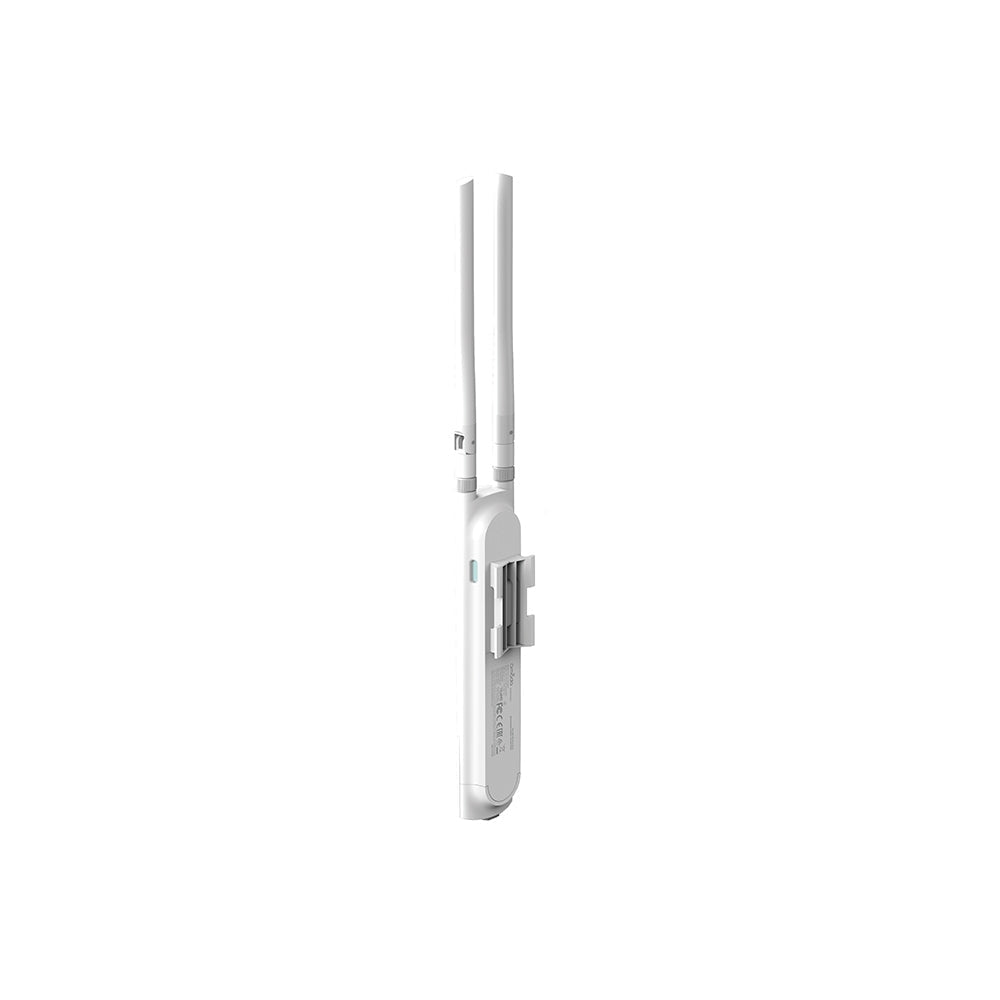

Mounting Pole/Wall mount (mounting kit included)



WIRELESS FEATURES
Wireless Standards IEEE 802.11a/b/g/n/ac
Frequency 2.4GHz, 5GHz
Signal Rate 802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)
802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 5.5, 11Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Functions Multiple SSIDs_Up to 16 SSIDs, 8 for each band_
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control _Adjust Transmit Power on dBm_
QoS(WMM)
MU-MIMO
Airtime Fairness
Beamforming
Band Steering
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
Transmission Power 23dBm, max. (2.4GHz)
22dBm, max. (5GHz)
Specifications
MANAGEMENT
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Omada Controller Software Yes
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts Yes
Management MAC Access Control Yes
SNMP v1, v2c
System Logging Local/Remote Syslog Yes
SSH Yes
Web-based Management Yes
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes



OTHERS
Certification FCC
RoHS

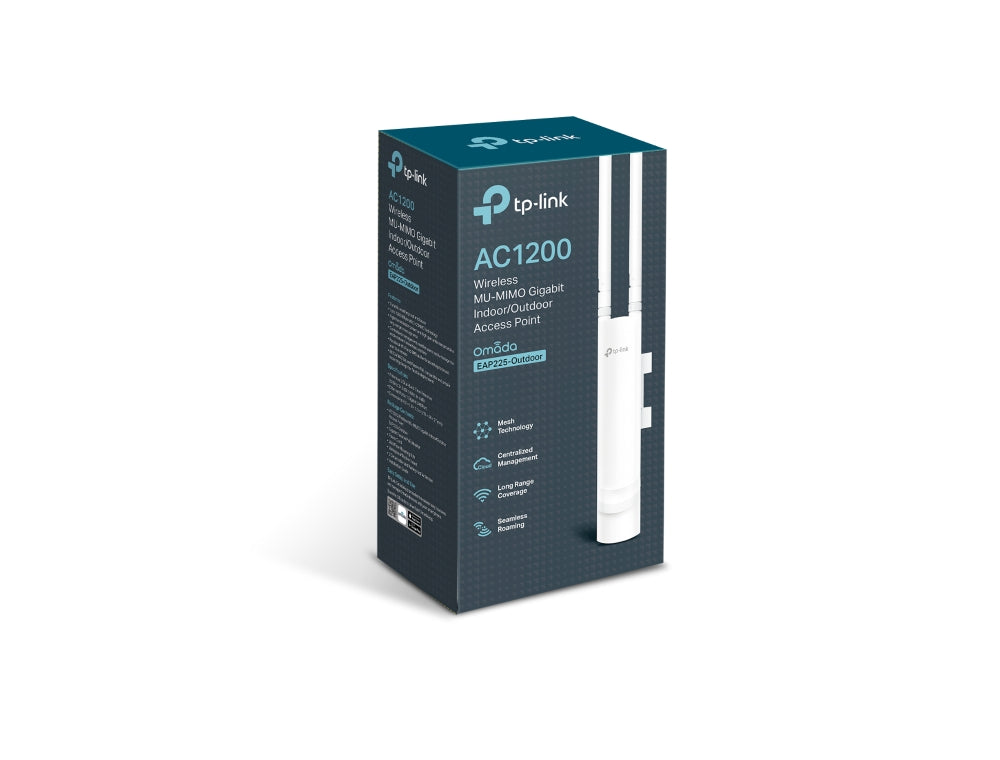

Package Contents AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
Passive PoE Injector
Power Cord
Mounting Kits
Installation Guide
Waterproof Rubber Insert
Waterproof Antenna
Environment Operating Temperature: -30_~70_ (-22_~158_)
Storage Temperature: -40_~70_ (-40_~158_)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing



View full details
