TP-Link

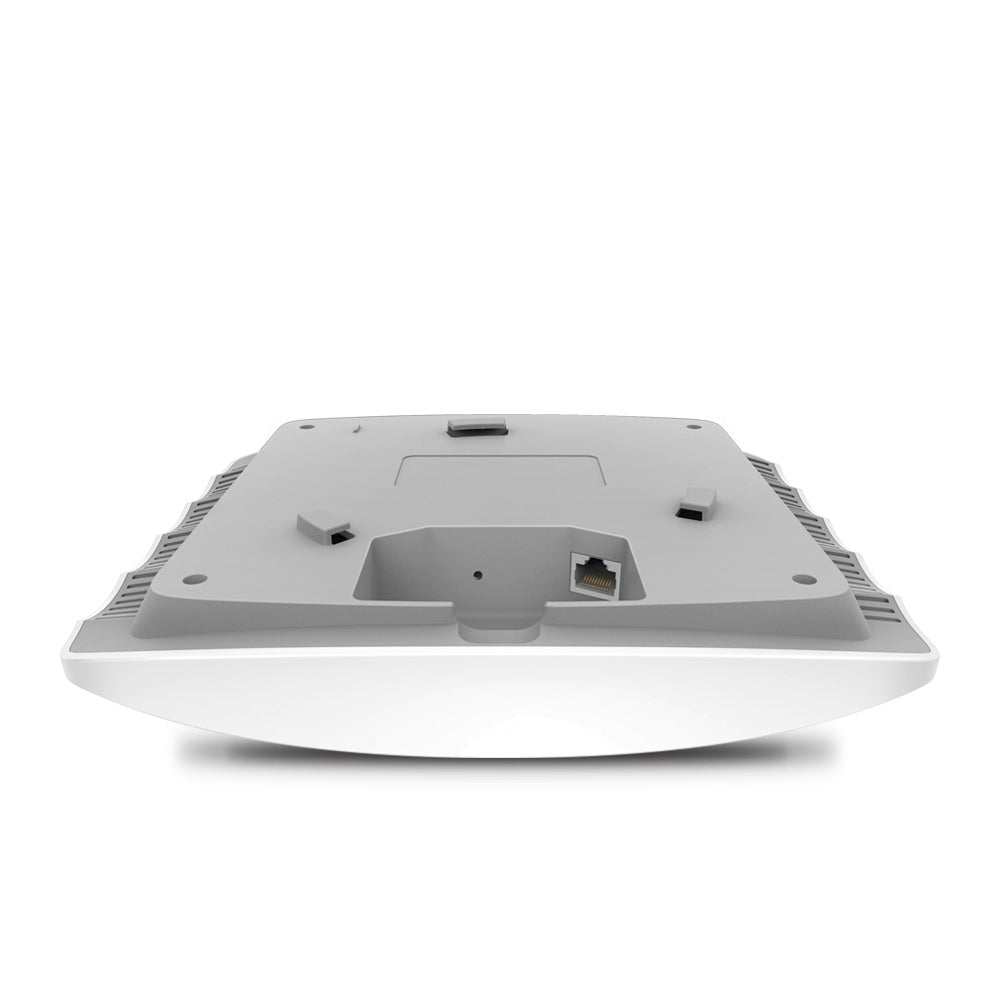

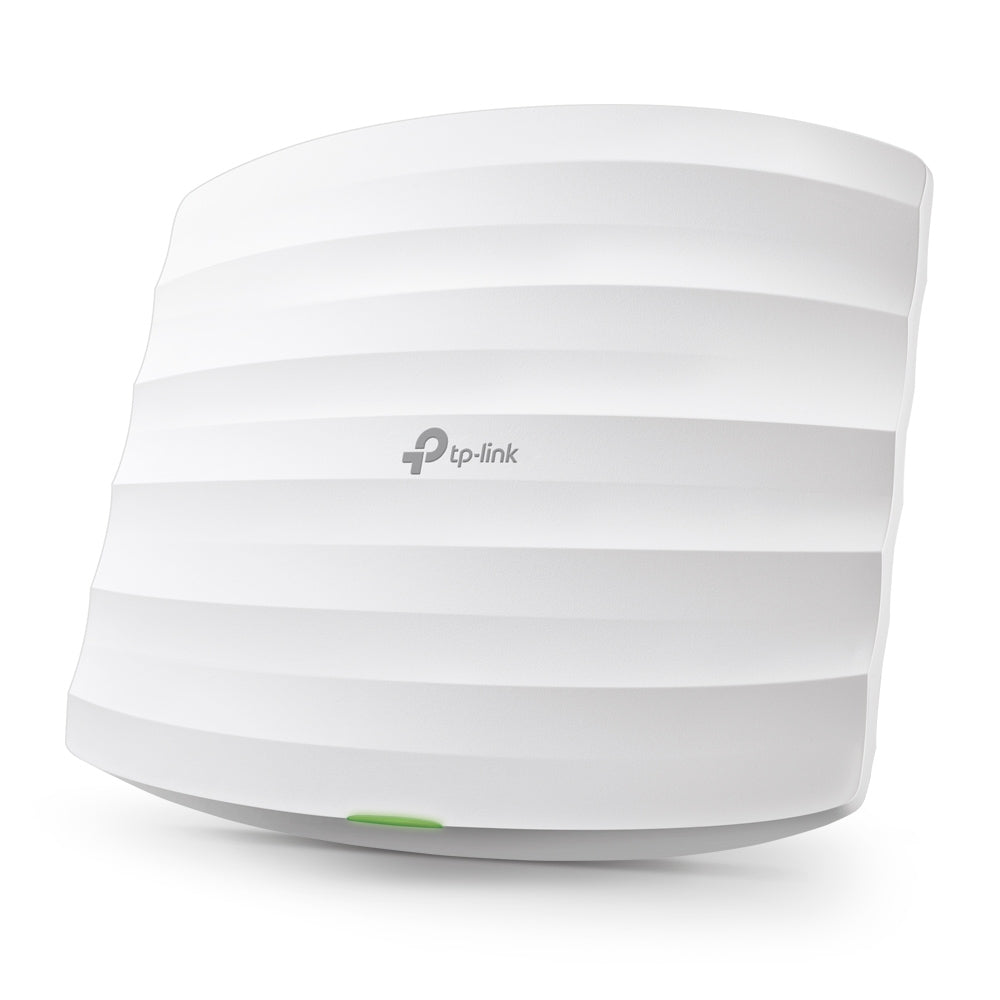

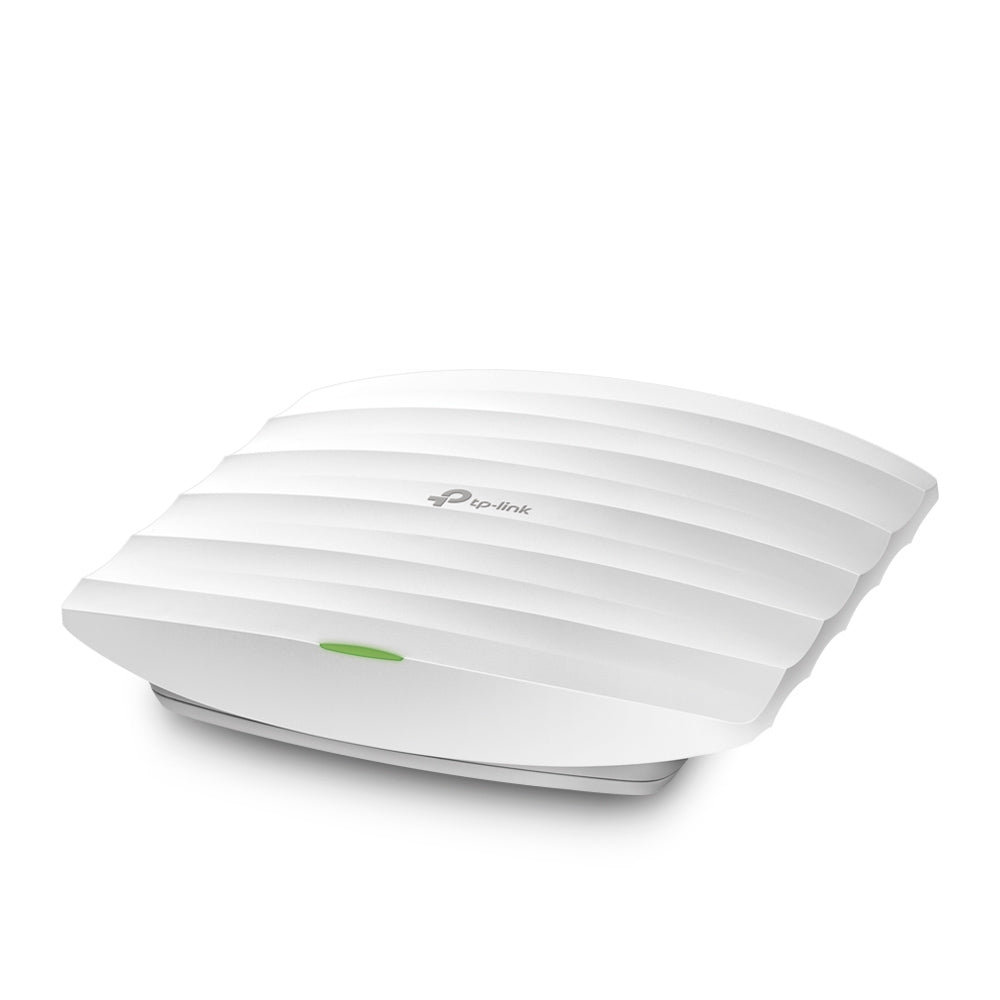

AC1350 Dual Band Ceiling Mount Access Point

AC1350 Dual Band Ceiling Mount Access Point

SKU:EAP225

Low stock: 1 left

Regular price Login to see prices
Regular price Login to see prices Sale price Login to see prices
Sale Sold out
Shipping calculated at checkout.
  • Simultaneous 450Mbps1 on 2.4GHz and 867Mbps1 on 5GHz totals 1317Mbps1 Wi-Fi speeds
  • EAP Controller Software lets administrators easily manage hundreds of EAPs
  • Compatibility with 802.3af and Passive PoE support makes deployment effortless and flexible
  • Captive portal provides a convenient method for guest authentication
  • Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
  • MU-MIMO2 means access points simultaneously transfer data with multiple devices, speeding up connections
  • Beamforming concentrates signal towards where you need it most, providing a fast and stable Wi-Fi experience
  • Supports management VLAN for an enhanced network management
  • Schedules can be set so access points automatically reboot and Wi-Fi turns on/off at the times you choose
Specifications
HARDWARE FEATURES
Interface Gigabit Ethernet (RJ-45) Port x 1
(Support IEEE802.3af or passive PoE)
Physical Security Lock Yes
Button Reset
Power Supply 802.3af/at PoE PoE or passive PoE
Power Consumption 12.6W
Dimensions 8.1 × 7.1 × 1.5 in
(206 × 182 × 37 mm)
Antenna Type 3 Internal Omni
2.4GHz: 4dBi
5GHz: 5dBi
Mounting Ceiling mount or wall mount (mounting kit included)



WIRELESS FEATURES
Wireless Standards IEEE 802.11ac/n/g/b/a
Frequency 2.4GHz and 5GHz
Signal Rate 5GHz:Up to 867Mbps*
2.4GHz:Up to 450Mbps*
Wireless Functions Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Seamless Roaming
Band Steering
Load Balance
MU-MIMO*
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
Transmission Power ≤24dBm(2.4GHz)
≤22dBm(5GHz)
Specifications
MANAGEMENT
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1,v2c
System Logging Local/Remote Syslog Local/Remote Syslog
Telnet Yes
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes



OTHERS
Certification FCC, RoHS
Package Contents AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225
Passive PoE Adapter
Power Cord
Mounting Kit
Installation Guide
Environment Operating Temperature: 0_~40_ (32_~104_)
Storage Temperature: -40_~70_ (-40_~158_)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
