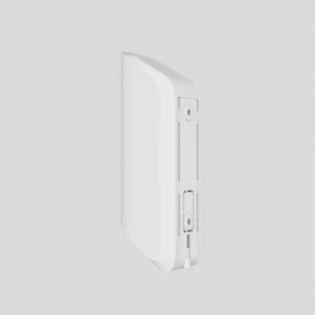

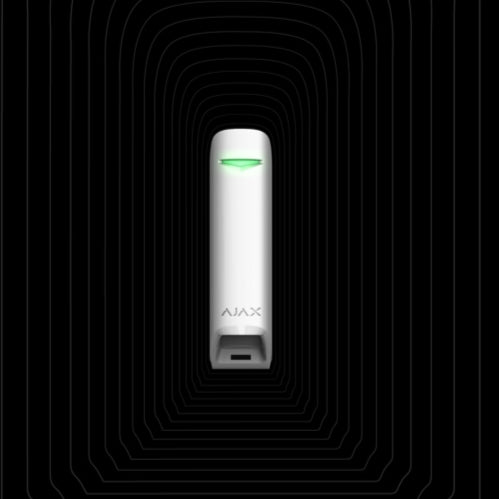

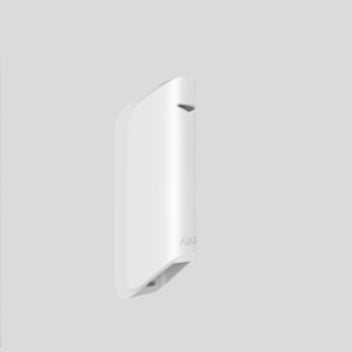

AJAX-MOTION CURTAIN (WHITE)

SPECIFICATIONS

Classification: Radio-interlinked photoelectric security detector

Type of detector: Wireless

Motion detection distance: Adjustable (from 6 to 15 meters)

Installation method: Indoors only

Compatibility: Operates with all Ajax hubs, and range extenders

Sensing element: Two PIR sensors

False alarm reduction: Available, Correlation Signal Processing

Alarm signal delivery time: 0.15 seconds

Detection angles: Horizontally — 6°, Vertically — 90°

Time for motion detection: From 0.3 to 2 m/s

Sensitivity: Adjustable, 3 levels

Recommended installation height: 2.4 meters

Power supply: Battery: CR123A, 3 V

Battery life: Up to 3 years

Jeweller radio technology:

• Communication range with detectors — up to 1,700 m in an open space
• Two-way communication between devices
• Operating frequencies — 868.0-868.6 MHz
• Self-adjusting RF output power — up to 20 mW
• Block encryption based on AES algorithm
• Detector polling period — 12−300 s
• Frequency hopping

Temperature sensor: Available

Operating temperature range: From −10°С to +40°С

Operating humidity: Up to 95%

Anti-sabotage: Fraud protection, Jamming notification, Tamper-resistant

Remote configuration and testing: +

Protection class: IP54

Dimensions: 34 × 44 × 34 mm

Weight: 118 g
