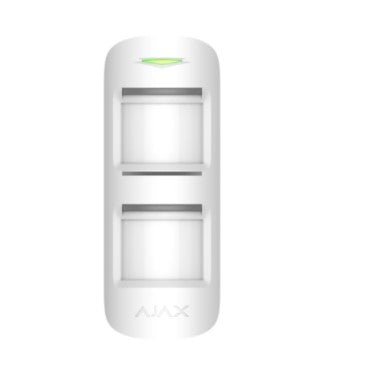

AJAX MOTION OUTDOOR

SPECIFICATIONS

Classification: Electro-optical radio channel security detector

Type of detector: Wireless

Installation method: Outdoors/indoors

Color: Only white

Recommended installation height: 0.8 — 1.3 m

Compatibility: Operates with all Ajax hubs, and range extenders

Sensing element: Two PIR sensors

Alarm signal delivery time: 0.15 s

Motion detection distance: Adjustable, up to 3–15 m

Detection angle: Horizontal — 90°

Time for motion detection: From 0.3 to 2 m/s

Sensitivity: Adjustable, 3 levels

Pet immunity: Weight — not relevant, Height — up to 80 cm

Anti-sabotage: Anti-masking, Protection against forgery, Jamming detection, Tamper-resistant

Power supply: Battery: 2 × CR123A batteries, 3 V, pre-installed
Optional mains supply: 5–28 V DC

Battery life: Up to 5 years

Jeweller radio technology:

• Communication range with the central unit — up to 1,700 m in an open space
• Two-way communication between devices
• Operating frequencies — 868.0−868.6 MHz
• Self-adjusting RF output power — up to 20 Mw
• Block encryption based on AES algorithm
• Detector polling period — 12—300 s

Temperature sensor: Available

Operating temperature range: From -25°С to +60°С

Permissible humidity: Up to 95%

Protection class: IP55

Remote set up and testing: +

Dimensions: 183 × 70 × 65 mm

Weight: 322 g
