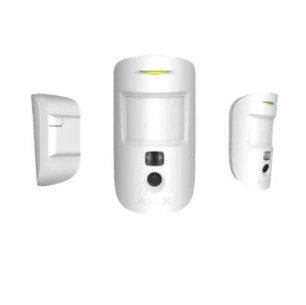

AJAX MOTIONCAM



SPECIFICATIONS

Classification; Electro-optical combined radio channel security detector with a photo camera

Detector type: Wireless

Installation: Indoors

Motion detection distance: Up to 12 m

Pet immunity:

• Weight: up to 20 kg
• Height: up to 50 cm

Compatibility: Only with Hub 2, Hub 2 Plus

Sensing element: PIR sensor

Detection angles:

• Horizontal — 88.5°
• Vertical — 80°

Time for motion detection: From 0.3 to 2 m/s

Camera view angle: 90°

Alarm signal delivery time: 0.15 sec

Photo verification:

• Time to deliver a photograph with default settings: up to 9 sec
• Photo quality: up to 640 × 480
• Pictures in a series: 1-5 pcs


IR backlight for night mode pictures: Available

Sensitivity: Adjustable, 3 levels

Recommended installation height: 2.4 m

Power supply: Batteries: CR123A (×2), 3 V

Battery life: Up to 4 years (up to 2.5 years if “Delay when entering” setting is activated)
Jeweller radio technology:

• Communication range with detectors: up to 1,700 m in the line of sight
• Two-way communication between devices
• Operating frequencies: 868.0 - 868.6 MHz
• Self-adjusting RF output power: up to 20 Mw
• Block encryption based on AES algorithm
• Detector polling period: 12−300 s
• Frequency hopping

Wings radio technology: Transmission of visual alarm verifications

Temperature sensor: Available

Operating temperature range:

• From 0°C to +40°C (manufacture date up to June 1, 2020)
• From -10°C to +40°C (manufacture date from June 1, 2020)

Operating humidity: Up to 75%

Anti-sabotage:

• Fraud protection
• Jamming notification
• Tamper-resistant

CMS compatibility: CMS connectivity: Contact ID, SIA (DC-09)

Remote configuration and testing: +

Protection class: IP50

Dimensions: 135 × 70 × 60 mm

Weight: 167 g
