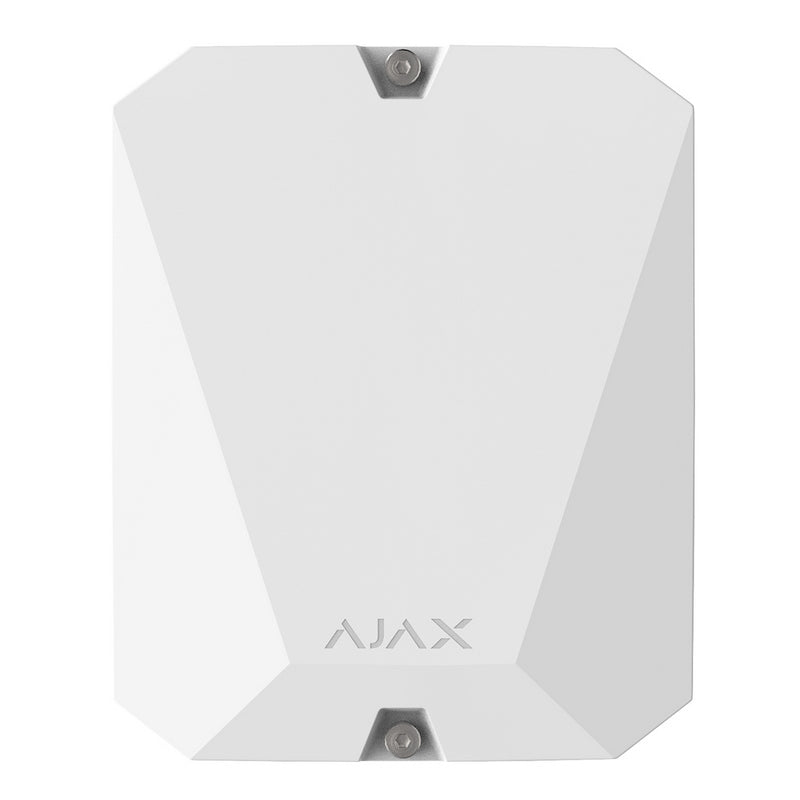

AJAX MULTITRANSMITTER

Number of alarm/tamper zones: 18

Supported detector contact types: NO, NC (without R), EOL (NC with R), EOL (NO with R)

Resistance of the EOL resistor: 1 kΩ to 7.5 kΩ

Alarm signals processing mode: Pulsed or bistable

Main power supply: 110–255 V, 50/60 Hz

Backup power: 12 V DC

Supported battery type: Battery with 4 or 7 A⋅h capacity (not included), dimensions 150 × 64 × 94 mm

Detector power supply: 12 V DC, up to 1 A for all detector power supply outputs

Protection against dismantling: Tamper

Radio signal frequency band: 868.0–868.6 MHz or 868.7–869.2 MHz, depending on the sales region

Compatibility: Operates with all Ajax hubs, and range extenders

Maximum radio signal power: Up to 7.29 mW (25 mW limit)

Radio signal range: Up to 2,000 m in the line of sight

Operating temperature range: From -10°С to +40°С

Operating humidity: Up to 75%

Dimensions: 196 × 238 × 100 mm

Weight: 805 g
