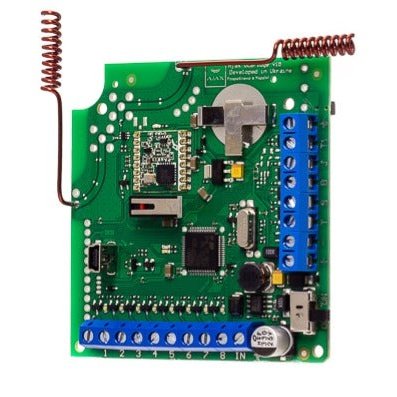

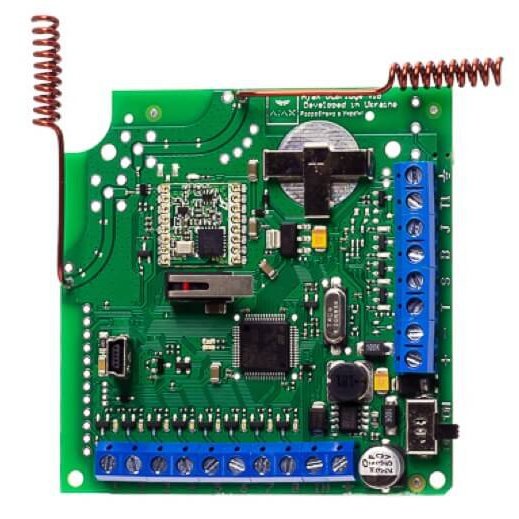

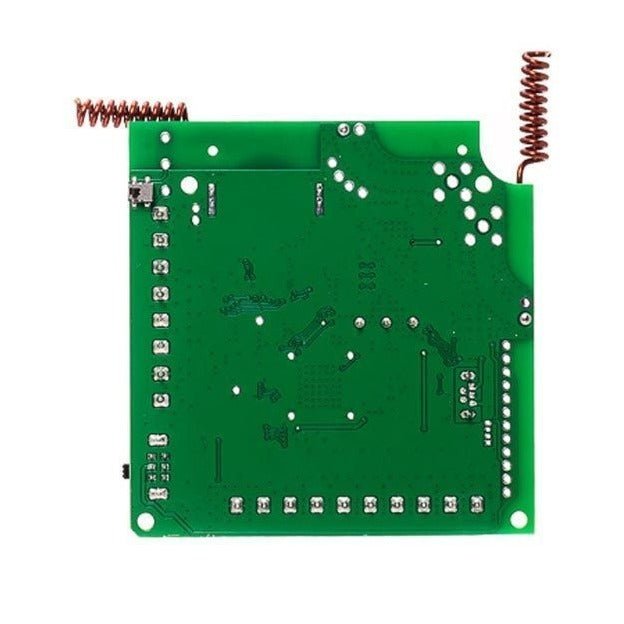

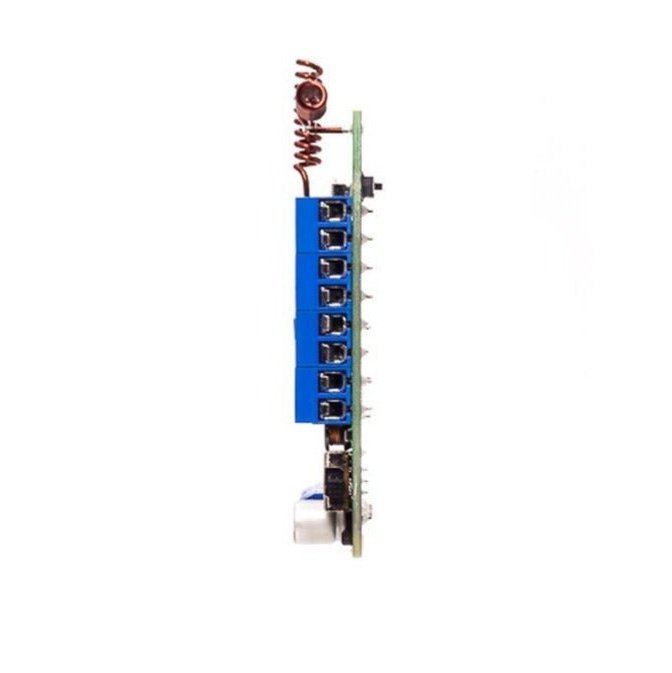

AJAX ocBridge Plus

Ajax ocBridge Plus turns any wired security system into a wireless one
by giving it access to the advantages of Ajax detectors, while antenna
diversity and frequency hopping provide additional protection from
radio noise or jamming.

● Jeweller wireless technology allows for expanding to a network of devices
up to 2,000 meters away in open space or across several floors of a
business center.
● Supports 8 security areas and 4 service areas
● Can work with up to 100 devices simultaneously
● Detectors are customizable using a radio channel
● Connects to a third-party security system using 12 transistor outputs

Receiver module for connecting Ajax detectors to wired and hybrid security systems. The device is integrated into any central unit with wired security areas.

Principle of operation

When the detector activates, the device closes or opens the transistor outputs. The wired central unit records the event and raises an alarm.

Features

The device allows setting up the detector, performing radio communication tests and detection areas tests using PC.
