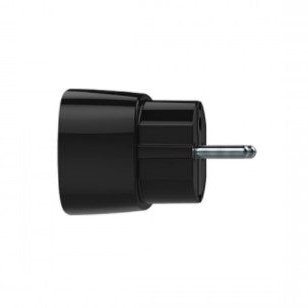

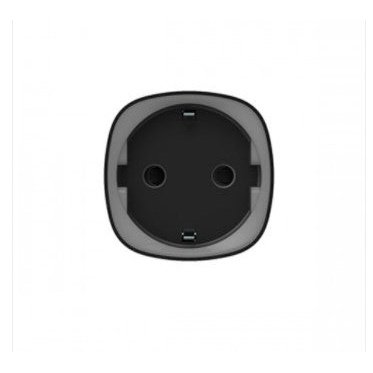

AJAX SOCKET

SPECIFICATIONS

Classification: Smart socket

Device type: Remote-controlled

Installation method: In outlet

Compatibility with hubs: All hubs

Compatibility with range extenders: All radio signal range extenders

Actuating element: Electromagnetic relay

Service life: At least 200,000 switches

Power supply voltage range: 110–230 V~ ± 10%; 50/60 Hz

Output power (resistive load at 230 V): Up to 2.5 kW

Device energy consumption: ≤ 1 W

Maximum current protection: Yes, 11 A if the protection is turned on, 13 A if the protection is turned off

Maximum temperature protection: Yes, +85°С, The socket turns off automatically if the temperature is exceed

Overvoltage protection: Yes, min — 184 V~, max — 253 V~

Electric shock protection class: Class I (with grounding terminal)

Energy consumption parameter check: Yes (current, voltage, power consumption)

Load indicator: Yes

Maximum load current: 11 A (continuous), 13 A (up to 5 sec)

Alarm signal delivery time: 0.15 sec

Load indicator: Yes. The option of adjusting the brightness of the LED frame of the device (high or low)

Operation modes: Pulse (firmware version 5.54.1.0 or higher. Manufacture date from March 4, 2020). Bistable.

Contact state (firmware version 5.54.1.0 or higher): Normally open. Normally closed.

LED indication: Adjustable (LED frame, 7 colours)

Adjustable pulse duration (firmware version 5.54.1.0 or higher): 0.5 to 255 sec

Jeweller radio technology:

• Communication range with central unit — up to 1,000 m in an open space
• Two-way communication between devices
• Operating frequencies:
  866.0 – 866.5 MHz
  868.0 – 868.6 MHz
  868.7 – 869.2 MHz
  905.0 – 926.5 MHz
  915.85 – 926.5 MHz
  921.0 – 922.0 MHz
  (depends on the region of sale)
• Self-adjusting RF output power — up to 25 mW
• Block encryption with floating key
• Device authentication
• Verification of each communication session
• Detector scanning period from12 to 300 sec

Anti-sabotage: Protection against forgery, Jamming detection

Remote setting and testing: +

Operating temperature range: From 0°С to +40°С

Operating humidity: Up to 75%

Ingress protection: IP20

Overall dimensions: 65.5 × 45 × 45 mm (with plug)

Weight: 58 g
