AJAX-SPECTRUM/T

Spectrum PA WS WALL STD with Avs Battery 3.6Volts 2.6AH c/w

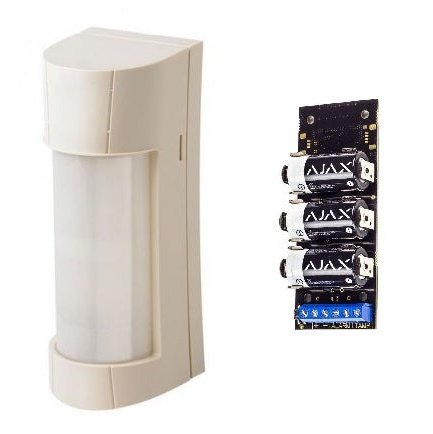

● 1pcs Ajax Transmitter and battery(CR123 - 3pcs)

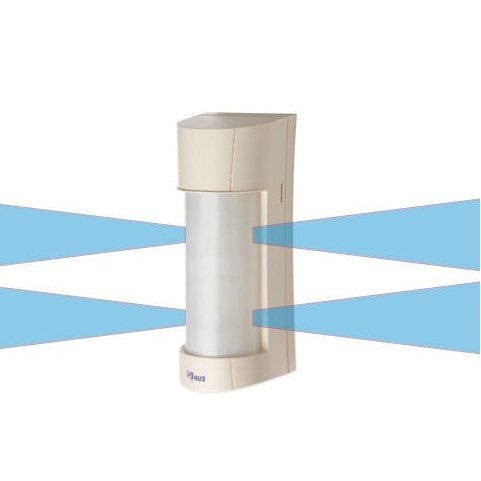

● Curtain double side detection 12 meters on both sides

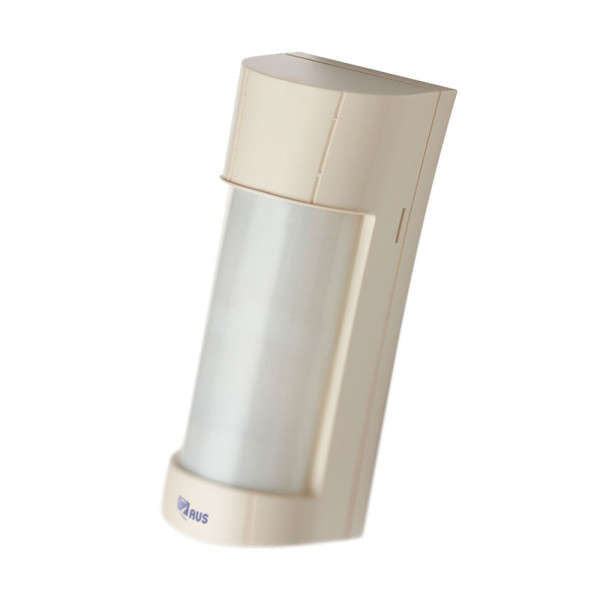

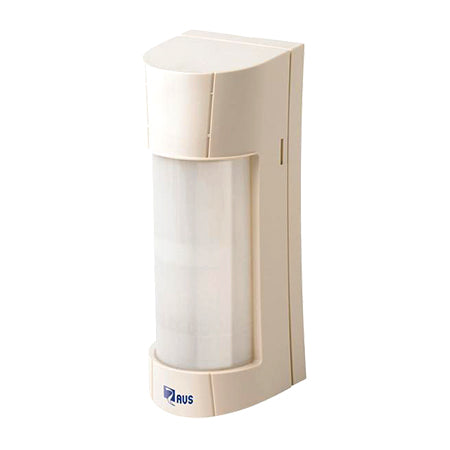

SPECTRUM PA WS WALL

Bidirectional wireless double side double PIR outdoor detector

•  Detection through double side (right + left) and double PIR
• Detection range from 3 to 12 meters per side
• Digital temperature compensation\
• Light filter
• Detection angle up to 100°
• Orientation horizontal plane 180°
• Installation heigh: 1,2 meters with standard lens - 2,2 meters with SSL optional lens
• PET Immunity up to 70 cm from the ground
• Power consumption in hush: 15 μA - Power consumption in allarm: 34 mA
• Frequency: FM 868 MHz
• Multi frequency bidirectional
• Radio coverage: up to 200 m. in open airWireless report for alarmWireless report for tamper
• Wireless report for low battery
• Wireless report for survival
• Data sent: self-test, detector model, battery voltage
• Working temperature
• Easy programming: self-learning on CP
• Parameters settings via CP, laptop (with XWIN software) or APP MYAVSMANAGER
• Walk test with led and buzzer activation
• Power supply: 3.6 Vdc, 2.2 A Lithium battery
• Battery life: 2 years with energy saving function activated
• Dimensions (DxWxH): 68,3 x 75,4 x 189,4 mm
• Protection class: IP 55

AJAX Transmitter

AJAX-SPECTRUM/T
