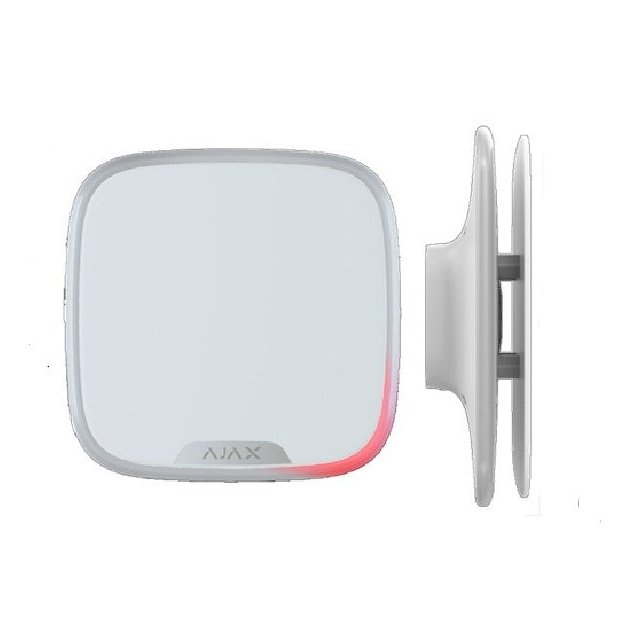

AJAX StreetSiren DoubleDeck

SPECIFICATIONS

Classification: Warning device with LED indicators (outdoor siren)

Type of siren: Wireless

Installation method: Outdoors/indoors

Compatibility: Operates with all Ajax hubs, and range extenders

Type of notification: Sound/light

Sound volume level: Adjustable, 85−113 dB at a distance of 1 m

Alarm duration: Adjustable, 3–180 s

Indication of armed/disarmed status: Available

Power supply:

• Battery: Four CR123A batteries, 3 V
• Mains supply: DC 12 V±20%

Battery life: Up to 5 years

Jeweller radio technology:

• Communication range with central unit — up to 1,500 m in an open space
• Two-way communication between devices
• Operating frequencies — 868.0−868.6 MHz
• Self-adjusting RF output power — up to 25 Mw
• Block encryption based on AES algorithm
• Detector polling period — 12−300 s

Temperature sensor: Available

Operating temperature range: From −25°С to +50°С

Permissible humidity: Up to 95%

Ingress protection rating: IP54

Anti-sabotage:

• Forgery prevention
• Jamming detection
• Tamper-resistant

Remote configuring and testing: Available

Dimensions: 200 × 200 × 51 mm

Weight: 528 g
