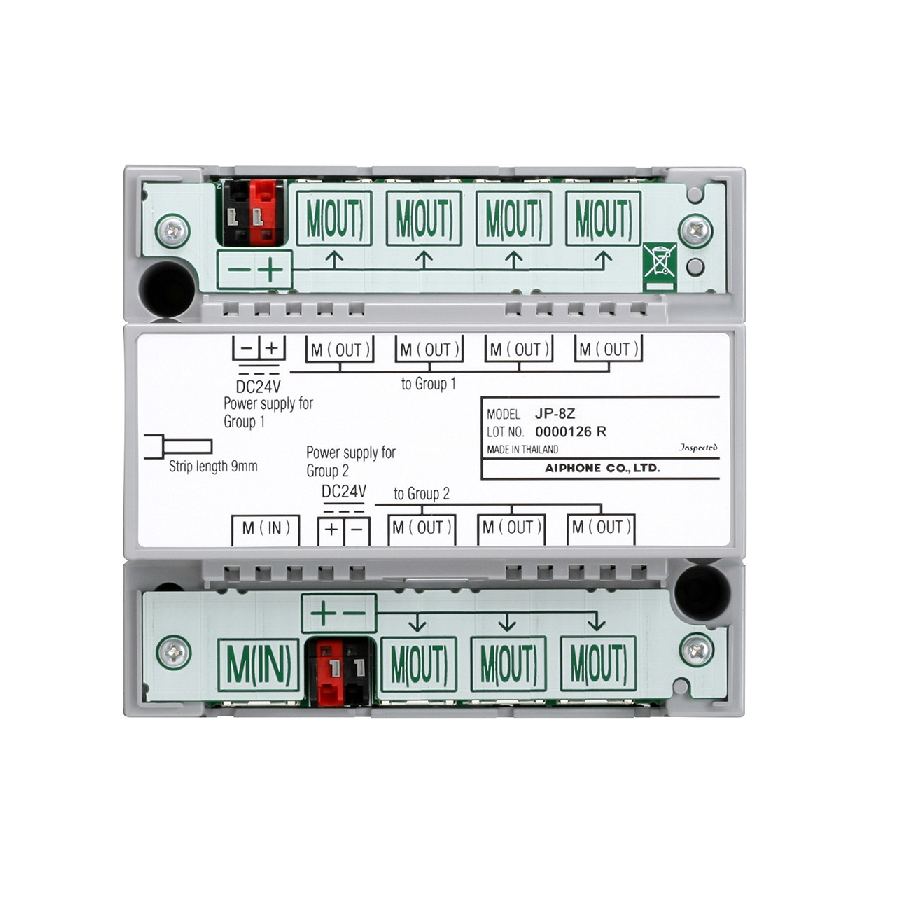

Distribution Adaptor for Video Sub Master Stations

• Wire Type : JP-8Z to JP-4MED/JP-4HD: Cat-5e or Cat-6
• Power Supply to JP-8Z : 2-cond., mid cap, solid, non shielded
• Wire Distance :
  • JP-8Z to JP-4HD: 165'
  • JP-4MED to JP-8Z: 650'
  • JP-8Z to PS-2420UL: 33'
• Temperature Rating :  0-40°C (32-104°F)
• Dimensions : 109(H) x 124(W) x 62(D)mm

DISTRIBUTION ADAPTOR

Part Number : JP-8Z

• Homerun up to 7 Sub Master Stations

Installation Guide

JP SERIES INSTALLATION MANUAL

Catalogue

JP-8Z DISTRIBUTION ADAPTOR SPEC SHEET
