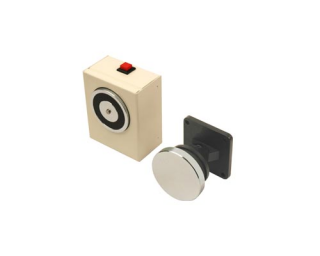

Electromagnetic Door Holder

• Voltage Input : 12 VDC / 24 VDC
• Current Draw : 12V / 100mA ; 24V / 50mA (±5%)
• Holding Force : Up to 150 lbs (70 kg)
• Anti-Rust Surface Treatment : Blue Zinc Plating
• Operating Temperature : 0~55° C ( 32~131° F)
• Operating Humidity : 0~95% ( non condensing)
• Weight : 0.7 kg (±1%)
• Dimensions : Magnet – (H)85x(W)70x(T)40 mm
                             Armature – (Ф)55x(T)8 mm

Part Number : DH-1224

• Dual Voltage Selectable (12 VDC or 24 VDC)
• Emergency Release Button / Test Button
• Floor and Wall Mounting Direction
• Low Current Consumption
• Reliable Fail-Safe Mechanism
• Durable and Silence Operation
• Cosmetic Powder Coat Casing
• Compact Size for Most Type of Swing Doors
• Anti-Residual Magnetism Kick Off Button

EBELCO DH-1224 DOOR HOLDER
