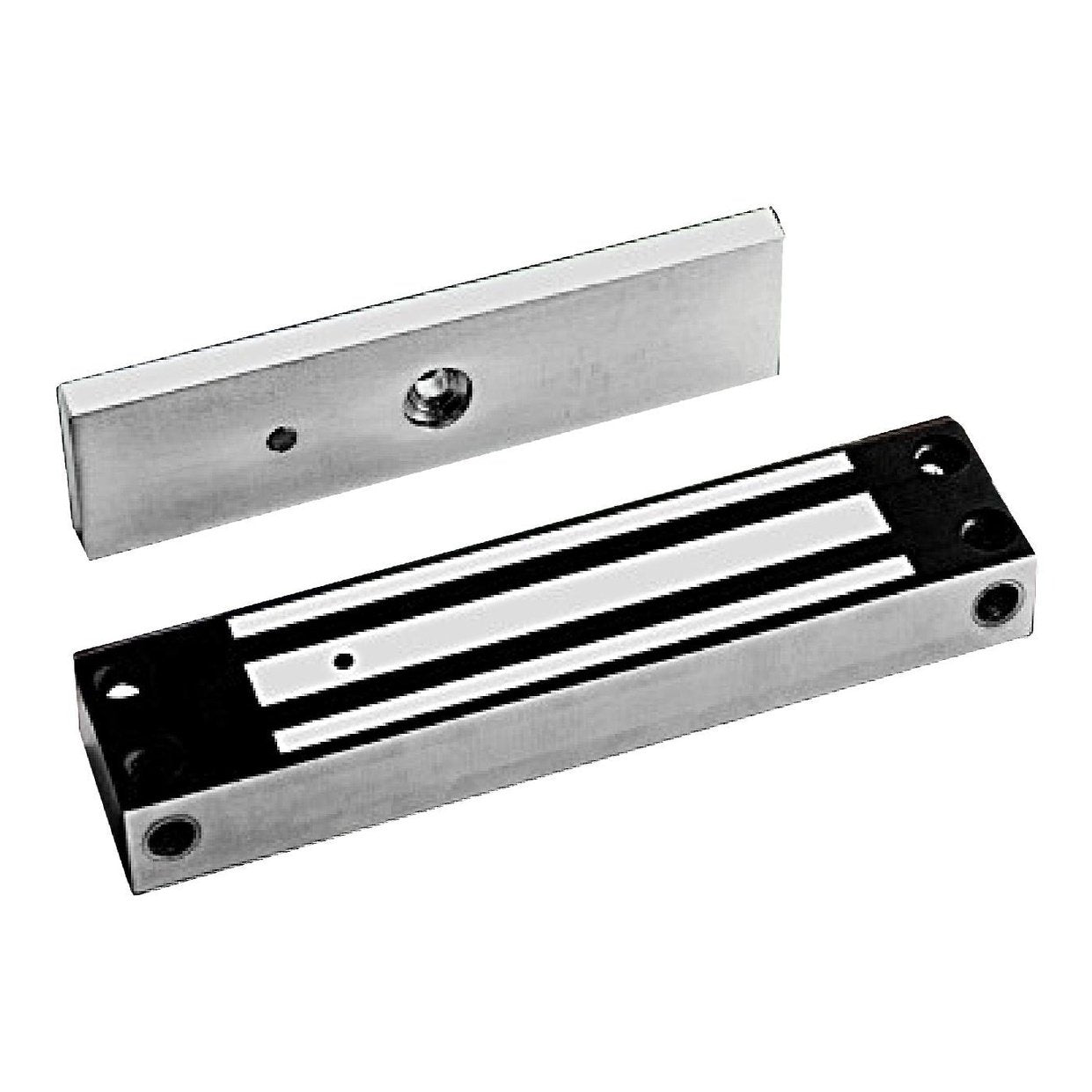

EXT Series 800lbs Water Proof Electromagnetic Lock

• Voltage Input : 12 VDC / 24 VDC
• Current Draw : 12V / 460mA ; 24V / 230mA (±10%)
• Holding Force : Up to 800 lbs (360 kg)
• Anti-Rust Surface Treatment : Nickel Plating
• Operating Temperature : -10~55° C ( 14~131° F)
• Operating Humidity : 0~95% (non condensing)
• Weight : 2.9 kg (±1%)
• Dimensions : Magnet – (H)220x(W)46x(T)30 mm
                             Armature – (H)182x(W)44x(T)12 mm

ALGATEC WATERPROOF ELECTROMAGNETIC LOCK

• 800lbs water proof EM Lock
• Lock Status Monitoring
• Monitored type with built-in reed switch
• 12 / 24Vdc (selectable type)
• Low Current Consumption
• Electroless Nickel (EN) Plated Armature Plate
• Reliable Fail-Safe Mechanism

Installation Guide

ALGATEC WATERPROOF EM LOCK BACK & Z BRACKET

ALGATEC WATERPROOF EM LOCK TOP PLATE

Catalogue

ALGATEC WATERPROOF EM LOCK
