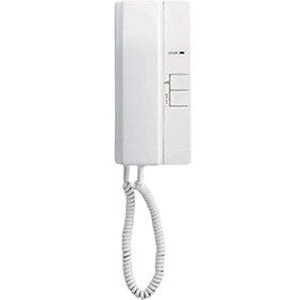

Handset Master Station for IE-1GD Series

• Communication : Handset for privacy
• Door Release : N/O dry contact, 24V AC/DC, 500mA
• Wire Type :
  • Door to master - 2-cond., overall shield,
  • Master to subs - 6-cond., overall shield
• Distance :
  • Door Station to Master Station: 500'(22AWG), 1,180'(18AWG)
  • Master Station to farthest Sub Station: 250'(22AWG), 590'(18AWG)

Handset Master Station for IE-1GD Series

Part Number : IE-1GD



• 1 door station and 3 master stations
• Door release
• All Call type room calling
• Chime tone cutout at sub station
• AC or DC powered (12~16V AC or 12~24V DC)

Installation Guide

IE-1GD CHIME-TONE INTERCOM INSTALLATION MANUAL

Catalogue

IE-1GD CHIME-TONE INTERCOM
