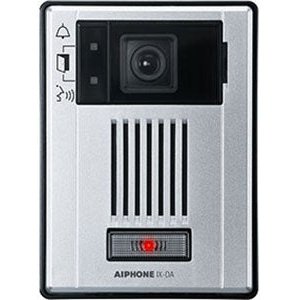

IP Audio/Video Door Station

The IX-DA is a weather resistant, surface mount IP addressable video door station.

• Network Interface: Hardwired Stations: 10 BASE-T / 100 BASE-TX Ethernet (RJ-45)

• Network Protocols: IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP

• Bandwidth Usage: Audio (G.711): 64Kbps x 2 for communication, Video (H.264): 24Kbps ~ 2,048Kbps
• Communication: Hands-free
• Camera: Type: 1/4" color CMOS VGA
• Wire Type: Cat-5e or Cat-6
• Wire Distance: 330'
• Protection Rating: IP55
• Temperature Rating: -40° to 140° F

• 802.3af PoE, Class 0
• White LED for low light illumination
• Single contact output (door release, external signaling)
• Single trigger input
• 600Ω audio output
• IP55 rated, weather resistant, surface mount IP addressable audio only door station
