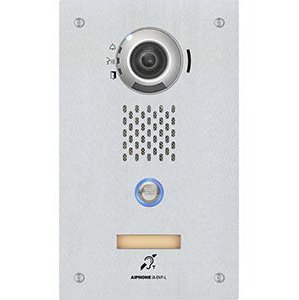

IP Video Door Station with T-Coil Compatibility for the IX Series

IP Video Door Station with T-Coil Compatibility for the IX Series

• Power Source: PoE (IEE 802.3af class 0) and 24V DC (PS-2420UL)
• Power Draw: 5.28W
• Camera: ⅓" CMOS 1.23 megapixel
• Min. illumination: 5 lux
• Audio Codec: G.711 (μ-law, A law), G.722
• Video Codec: H.264/AVC, motion JPEG
• Protocols: IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, SFTP, DHCP, NTP, DNS
• Port Security: IEEE 802.1X
• Operating Temp: -40° ~ 140°F (-40° ~ 60°C)
• Protection: IP65, IK08
• Dimensions: 11-11⁄16" H x 7" W x 2-1⁄16" D

• SIP 2.0 compliant
• 1.23 megapixel fixed color video camera
• White LED for low light illumination
• ONVIF Profile S compliant
• Camera vertical adjustment +15º, 0º, or -8º (manual)
• Slot for microSD™ card (not provided by Aiphone)
• Weather and vandal resistant
• 2 contact outputs/6 trigger inputs
• T-coil hearing aid support
• Stainless steel
• 802.3af PoE compliant
• RJ45 in/out with PoE pass-through (802.3at Type 2 PoE+)
