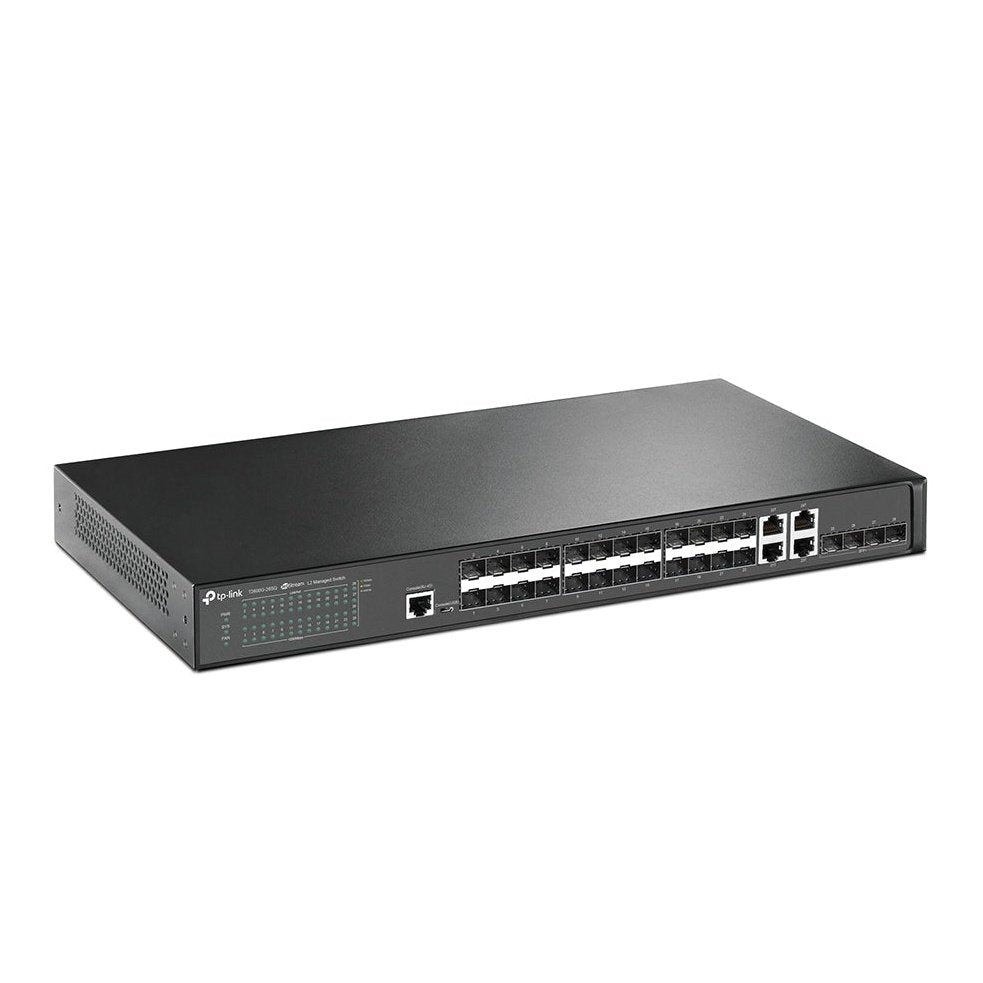

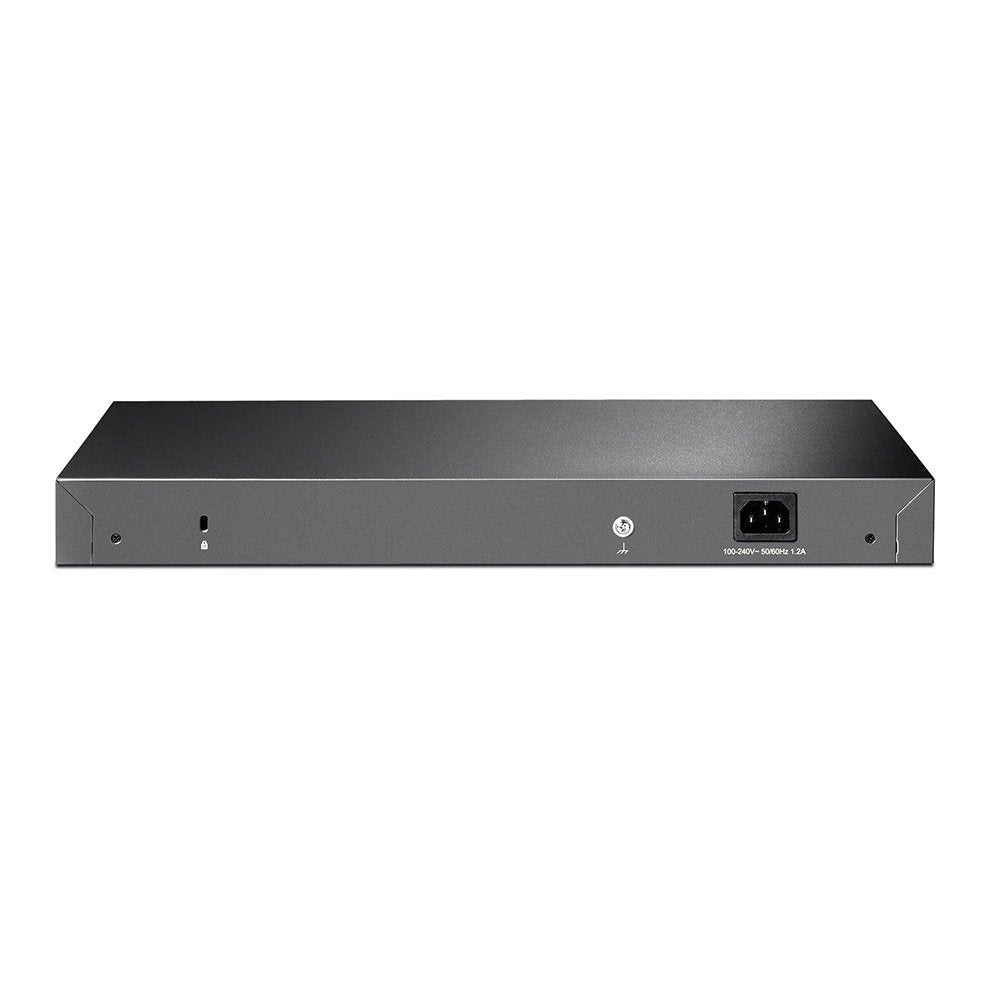

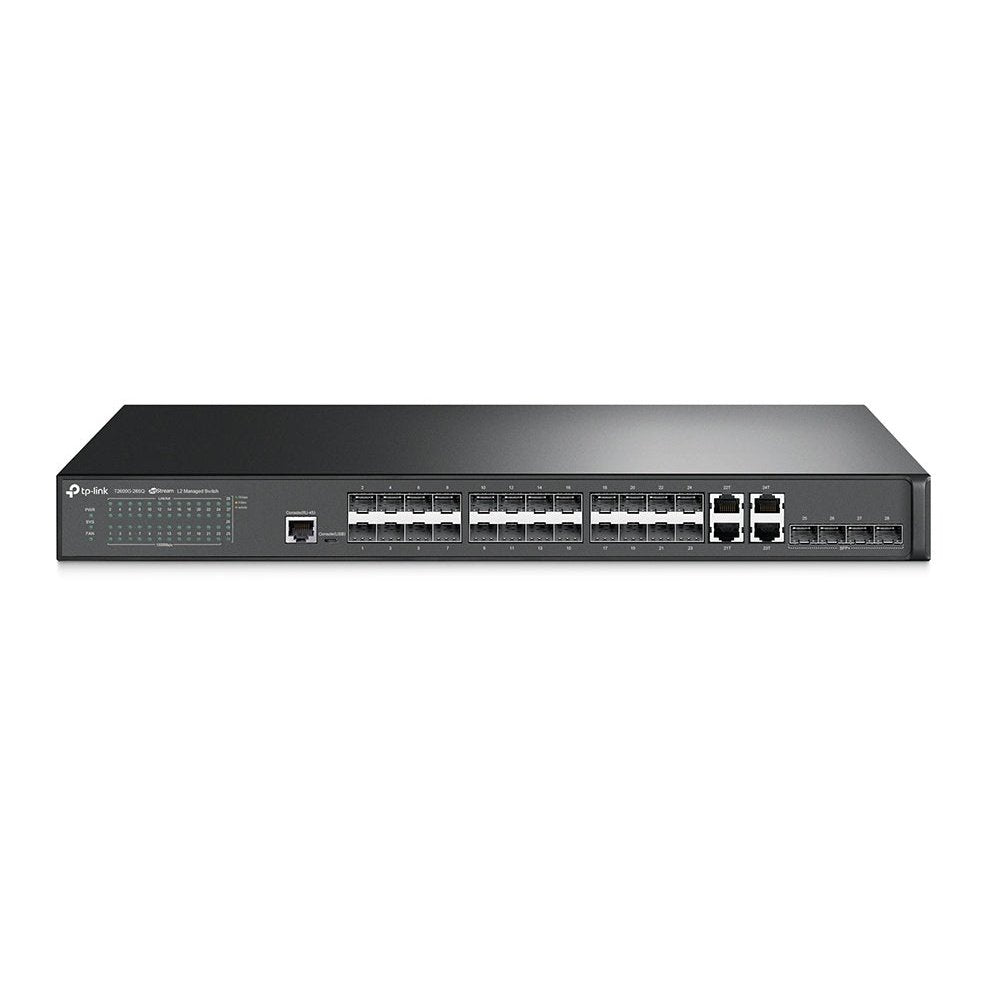

JetStream™ 24-Port Gigabit SFP L2 Managed Switch
JetStream™ 24-Port Gigabit SFP L2 Managed Switch
Low stock: 1 left
- 24 Gigabit fiber connections and 10G SFP+ fiber interfaces provide more than enough bandwidth and stability for hi-speed data transmission
- 4 Combo Gigabit Ethernet ports for easy copper wiring
- L2+ feature——Static Routing, helps to route traffic between subnets without an extra router
- IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X Authentication and Radius provide all the tools you need for robust security policies
- L2/L3/L4 QoS and IGMP snooping optimize voice and video application
- IPv6 functions including dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery
- Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image for easy management and monitoring
HARDWARE FEATURES | |
---|---|
Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p |
Interface | 24 Gigabit SFP Slots 4 Combo 10/100/1000 Mbps RJ45 Ports 4 10G SFP+ Slots 1 RJ45 Console Port 1 Micro-usb Console Port |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 1000BASE-X: MMF, SMF 10GBASE-X:MMF, SMF 10GSFP+CU “SFP+ Direct Attach Cable” (TXC432-CU1M, TXC432-CU3M) |
Fan Quantity | 2 |
Physical Security Lock | Yes |
Power Supply | 100~240VAC, 50/60Hz |
Dimensions ( W x D x H ) | 17.3 × 8.7 × 1.7 in. (440 × 220 × 44 mm) |
Mounting | 19" 1U rack mountable |
Max Power Consumption | 29.7W |
Max Heat Dissipation | 101.2 BTU/h |
PERFORMANCE | |
---|---|
Bandwidth/Backplane | 128Gbps |
Packet Forwarding Rate | 95.2Mpps |
MAC Address Table | 16k |
Jumbo Frame | 9216 Bytes |
SOFTWARE FEATURES | |
---|---|
Quality of Service | Support 802.1p CoS/DSCP priority Support 8 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow- based Rate Limiting Voice VLAN |
L2 and L2+ Features | Static Routing DHCP Relay IGMP Snooping V1/V2/V3 802.3ad LACP (Up to 14 aggregation groups, 8 ports per group) Spanning Tree STP/RSTP/MSTP BPDU Filtering/Guard TC/Root Protect Loopback detection 802.3x Flow Control L2PT |
VLAN | Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) 802.1Q/ MAC/Protocol-based/Private VLAN GARP/GVRP |
Security | IP-MAC-Port Binding AAA 802.1x and Radius Authentication DoS Defend Dynamic ARP Inspection (DAI) SSH v1/v2 SSL v3/TLSv1 Port Security Broadcast/Multicast/Unknown-unicast Storm Control |
IPv6 | Dual IPv4/IPv6 stack Multicast Listener Discovery (MLD) Snooping IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 IPv6 ACL DHCPv6 Snooping IPv6 Interface |
IPv6 Applications | DHCPv6 Client Ping6 Tracert6 Telnet(v6) IPv6 SNMP IPv6 SSH IPv6 SSL Http/Https IPv6 TFTP IPv6 ACL IPv6 Interface IPv6 Routing DHCPv6 Snooping |
Management | Web-based GUI and CLI management SNMP v1/v2c/v3, compatible with public MIBs and TP-Link private MIBs RMON (1, 2, 3, 9 groups) sFlow PPPoE Circuit ID DHCP Relay DHCP Server DHCP/BOOTP Client, DHCP Snooping, DHCP Option82 Dual Image CPU Monitoring Port Mirroring Time Setting: SNTP Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBS Password Recovery |
Access Control | L2_L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID Time Range Based |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS |
Package Contents | Switch Power Cord Installation Guide Resource CD Rackmount Kit Rubber Feet |
Environment | Operating Temperature: 0_~40_ (32_~104_); Storage Temperature: -40_~70_ (-40_~158_) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
