TP-Link

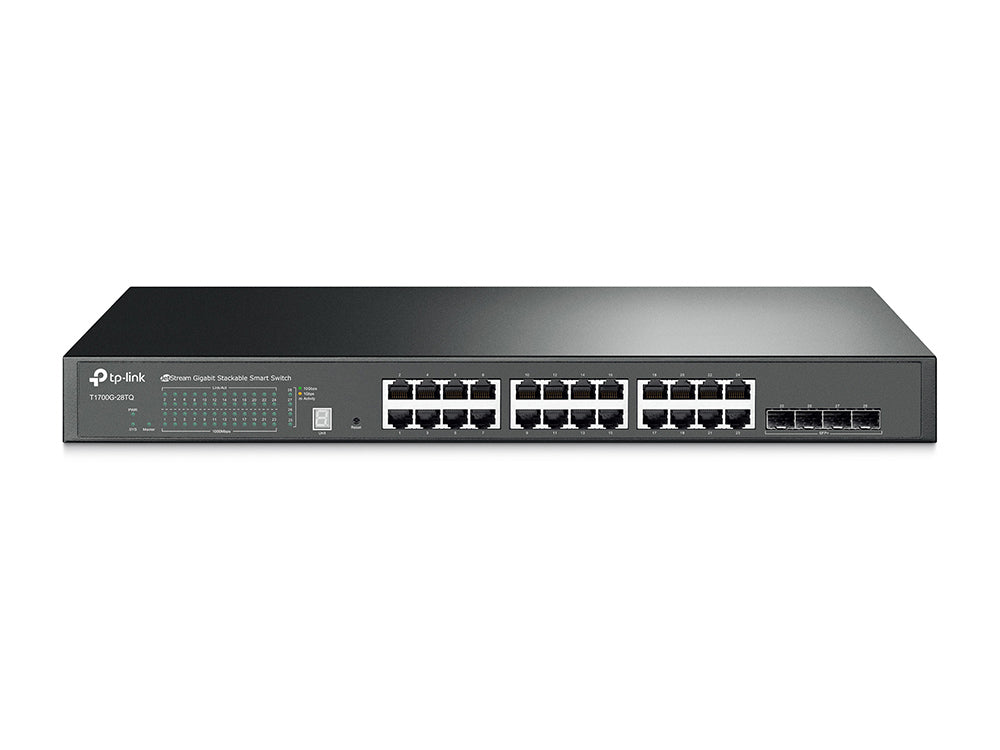

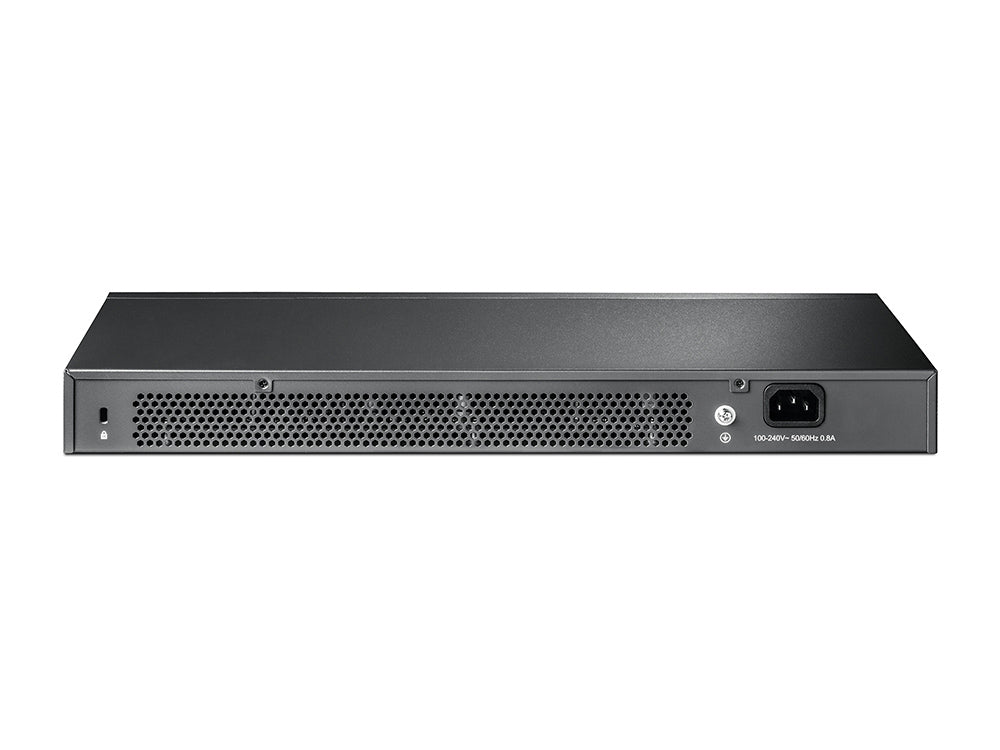

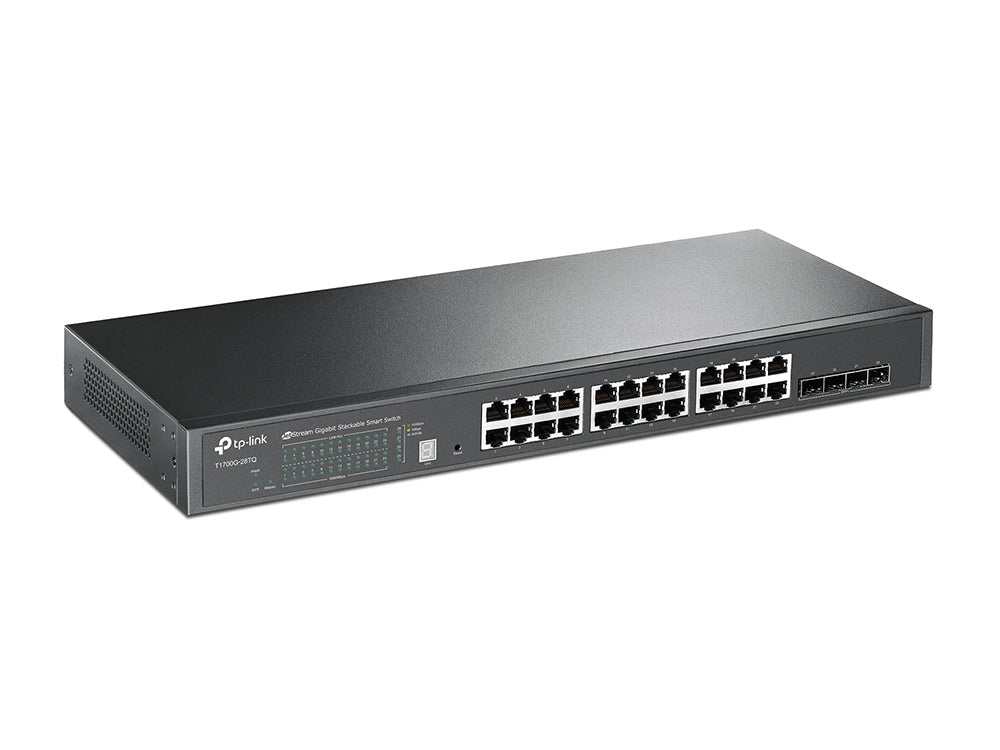

JetStream™ 24-port Pure-Gigabit Smart Switch

JetStream™ 24-port Pure-Gigabit Smart Switch

T1700G-28TQ

Low stock: 1 left

Login to see prices
Login to see prices Login to see prices
Sale Sold out
Shipping calculated at checkout.
  • True physical stacking supports up to 6 units and 40Gbps bi-directional bandwidth for high scalability and efficient redundancy
  • 10G SFP+ ports for stacking and/or uplink, providing support for high-bandwidth applications for congestion relief and smooth data delivery
  • L2+ feature, Static Routing help route internal traffic for more efficient use of network resources
  • Advanced security features include IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, and Radius Authentication
  • IPv6 support provides dual IPv4/IPv6 stacking, MLD snooping, and IPv6 neighbor discovery
  • WEB/CLI managed modes, SNMP, RMON, and Dual Image  enhance management



Specifications
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i
IEEE 802.3u
IEEE 802.3ab
IEEE802.3z
IEEE 802.3ae
IEEE 802.3ad
IEEE 802.3x
IEEE 802.1d
IEEE 802.1s
IEEE 802.1w
IEEE 802.1Q
IEEE 802.1x
IEEE 802.1p
Interface 24 × 10/100/1000Mbps RJ45 Ports
4 × 10G SFP+ Slots
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
1000BASE-X: MMF, SMF
10GBASE-LR
10GBASE-SR
Fan Quantity Fanless
Physical Security Lock Yes
Power Supply 100-240V, 50/60Hz
Weight 6.2lb
Dimensions ( W x D x H ) 17.32 × 7.1 × 1.73 in.
(440 × 180 × 44 mm)
Mounting 19" 1U Rack Mountable
Max Power Consumption 21.8W
Max Heat Dissipation 74.4.BTU/h



SOFTWARE FEATURES
Quality of Service Support 802.1p CoS/DSCP priority
Support 8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
IPv6 QoS
Voice VLAN
L2 and L2+ Features Static Routing
DHCP Relay
IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 14 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loopback detection
802.3x Flow Control
LLDP, LLDP-MED
VLAN Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
MAC/Protocol-based VLAN
Access Control List L2_L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports
IPv6 ACL
Security AAA
Port Security
DHCP Snooping
IP-MAC-Port Binding
ARP Inspection
802.1x and Radius Authentication
SSH v1/v2
SSL v3/TLSv1
Broadcast/Multicast/Unknown-unicast Storm Control
Dos Defend
IPv6 Dual IPv4/IPv6 stack
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 Applications DHCPv6 Client
Ping6
Tracert6
Telnet (v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP
Management Web-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and
TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
Dual Image
Specifications
PHYSICAL STACKING
Max Number of Stacking Ports Installable 2 SFP+
No. of Units Per Stack Up to 6 units
Stacking Speed (Per Port) 20Gbps (Full-Duplex)



PERFORMANCE
Switching Capacity Up to 128Gbps for a standalone switch
Packet Forwarding Rate Up to 95.2Mpps for a standalone switch
MAC Address Table 16K
Packet Buffer Memory 1.5MB
Jumbo Frame 9KB
Number of Static Routes 32 IPv4
Number of IP Interfaces 16



OTHERS
Certification CE, FCC, RoHS
Package Contents T1700G-28TQ
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet
Environment Operating Temperature: 0_~40_ (32_~104_);
Storage Temperature: -40_~70_ (-40_~158_)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~90%RH non-condensing
