TP-Link
JetStream™ 52-port Pure-Gigabit L3 Managed Switch
JetStream™ 52-port Pure-Gigabit L3 Managed Switch
SKU:T3700G-52TQ
Low stock: 1 left
Shipping calculated at checkout.
Couldn't load pickup availability
- Abundant Layer 3 routing protocols including RIP/OSPF/ECMP/VRRP that support a scalable network
- True Physical Stacking technology supports up to 8 units for high scalability and efficient redundancy
- 10 Gigabit Ethernet uplink provides high-bandwidth applications for congestion relief and smooth data delivery

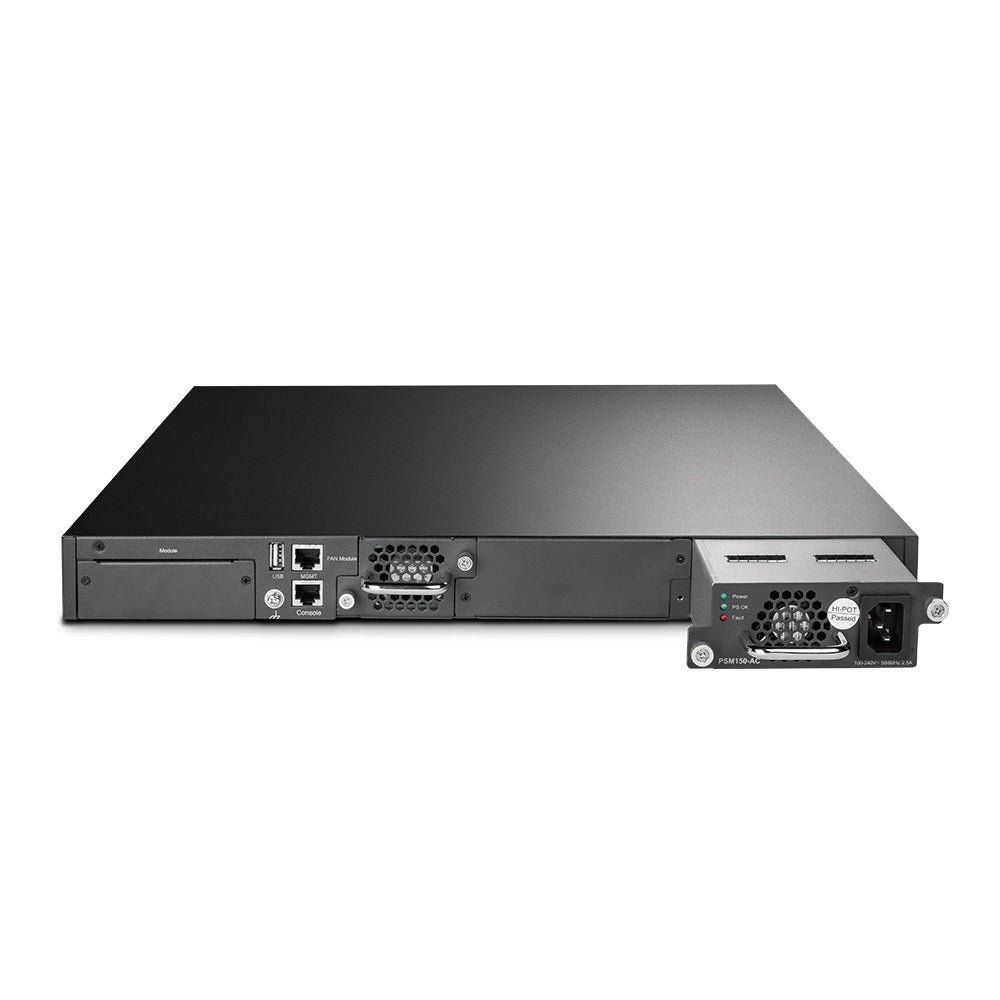

- Dual removable power units minimize downtime
- PIM-SM/PIM-DM/IGMP Snooping for resilient video deployments
- RJ45/Micro-USB Console ports and out-of-band Management port provide a range of management options
- A USB 2.0 port makes it easy to import files and restore configurations
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p |
| Interface | 48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 4 Combo Gigabit SFP Slots Up to 4 10G SFP+ Slots (2 fixed and 2 optional) 1 Micro-USB, 1 RJ45 Console Port 1 Management Port 1 USB Slot |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 100BASE-FX: MMF, SMF 1000BASE-X: MMF, SMF 10GBASE-LR 10GBASE-SR |
| Fan Quantity | 2 Removable |
| Physical Security Lock | No |
| Power Supply | 100~240VAC, 50/60Hz Dual Hot-swappable power supply module: PSM150 (Maximum Output Power: 150W) |
| Dimensions ( W x D x H ) | 17.32*16.55*1.73 in. (440*420*44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 58.82W (220V/50Hz) |
| Max Heat Dissipation | 200.69 BTU/h |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | Support 802.1p CoS/DSCP priority Support 8 priority queues Queue scheduling: SP, WRR, SP+WRR Ingress/Egress DiffServ Port/Flow- based Rate Limiting Voice VLAN |
| L2 Features | IGMP Snooping V1/V2/V3 MVR 802.3ad LACP (Up to 64 aggregation groups, 8 ports per group) Spanning Tree STP/RSTP/MSTP BPDU Filtering/Guard TC/Root Protect Loop back detection 802.3x Flow Control |
| VLAN | Supports up to 4K VLANs simultaneously IEEE 802.1Q VLAN/MAC VLAN/Protocol VLAN/QinQ/Private VLAN/GVRP |
| Security | IP-MAC-Port-VID Binding IEEE 802.1X AAA Radius/Tacacs+ Authentication and Accounting DoS Defence Dynamic ARP inspection (DAI) IP Source Guard SSH v1/v2 SSL v2/v3/TLSv1 Port Security Access Control list Broadcast/Multicast/Unknown-unicast Storm Control |
| L3 Features | Wire-speed IP forwarding Static Routing RIP v1, v2 OSPF v2 ECMP PIM-SM/PIM-DM/IGMP DHCP Server/Relay ARP Proxy VRRP |
| Management | Web-based GUI and CLI management SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups) DHCP/BOOTP Client, DHCP Snooping, DHCP Option82 CPU Monitoring Port Mirroring Time Setting: SNTP Firmware Upgrade: TFTP & Web SYSLOG & Public MIBS Dual Image IPv6 Management |
| PHYSICAL STACKING | |
|---|---|
| Installable SFP+ Transceivers and Direct Attach Copper (DAC) Cables | TXM431-SR TXM431-LR TXC432-CU1M TXC432-CU3M |
| Max Number of Stacking Ports Installable | 2 SFP+ |
| No. of Units Per Stack | 8 |
| Stacking Speed (Per Port) | 20 Gbps (Full-Duplex) |
| Switching Capacity | Up to 176Gbps for a standalone switch |
|---|---|
| Packet Forwarding Rate | Up to 130.9Mpps for a standalone switch |
| MAC Address Table | 32K |
| Packet Buffer Memory | 4MB |
| Jumbo Frame | 12KB |
| Number of Routes | 8K IPv4 |
| Number of Static Routes | 256 IPv4 |
| Number of IP Interfaces | 128 IPv4 |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | Switch; Power Cord; Quick Installation Guide; Resource CD; Rackmount Kit; Rubber Feet |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | Operating Temperature: 0_~40_ (32_~104_) Storage Temperature: -40_~70_ (-40_~158_) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
