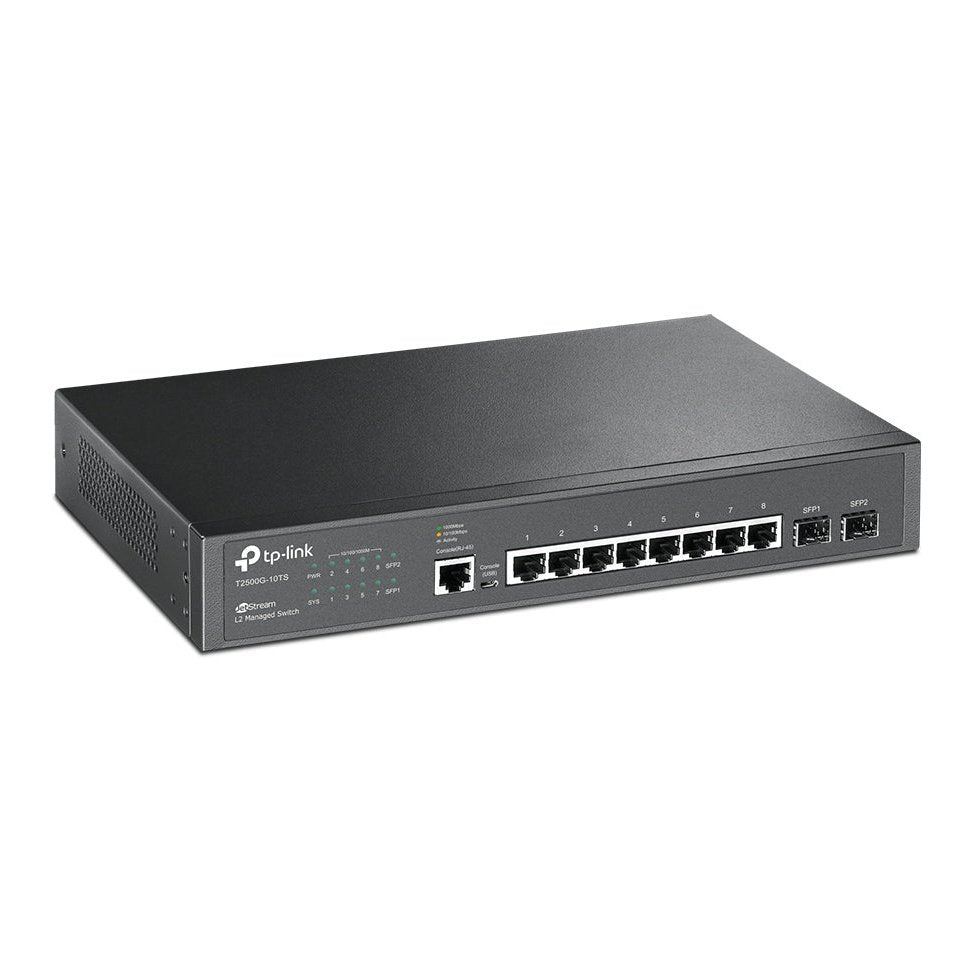

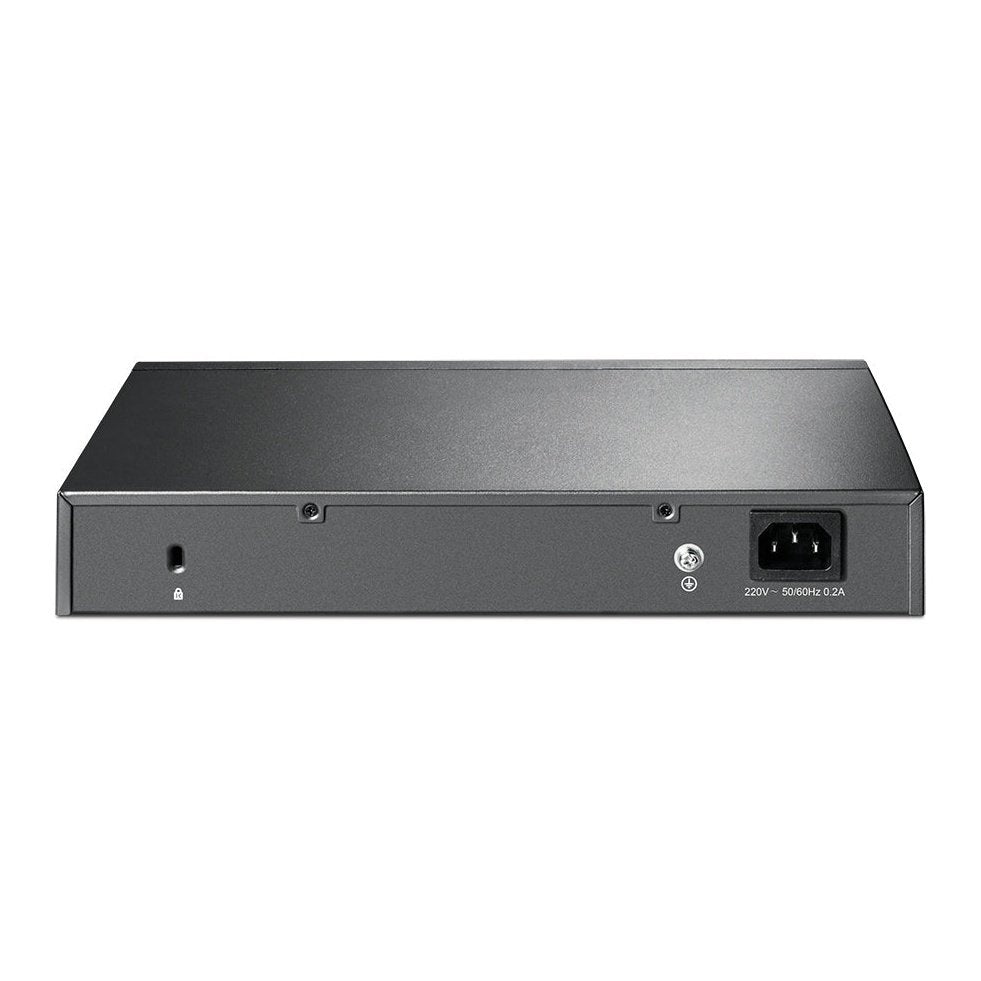

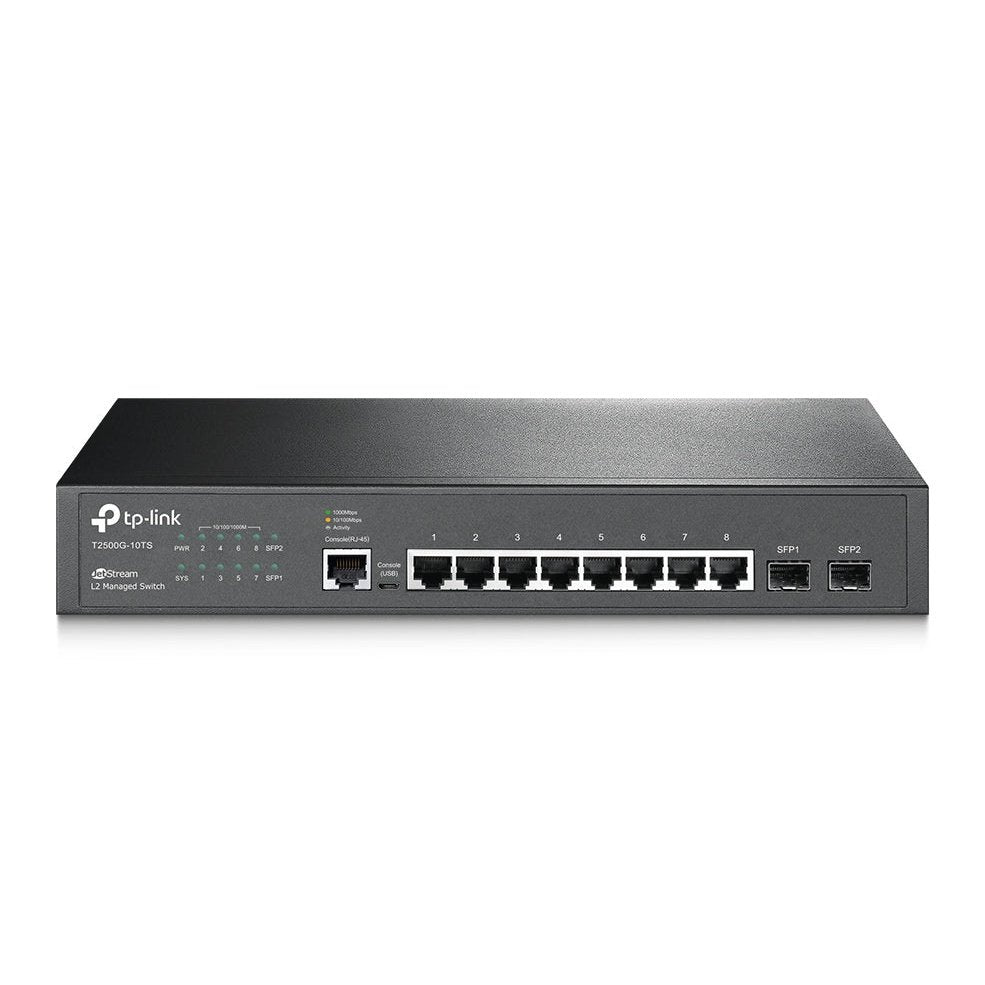

JetStream™ 8-port Pure-Gigabit L2 Managed Switch
JetStream™ 8-port Pure-Gigabit L2 Managed Switch
Low stock: 1 left
- Gigabit Ethernet connections on all ports provide full speed of data transferring
- Selective RJ45 console port and Micro-USB console port
- Advanced security features include IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X and Radius Authentication
- L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
- Web/CLI managed modes, SNMP, RMON and Dual Image bring abundant management features
HARDWARE FEATURES | |
---|---|
Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p |
Interface | 8 10/100/1000Mbps RJ45 ports (Auto Negotiation/Auto MDI/MDIX) 2 Gigabit SFP Slots 1 RJ45 Console Port 1 Micro-USB Console Port |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m) 1000BASE-X: MMF, SMF |
Fan Quantity | Fanless |
Physical Security Lock | Yes |
Power Supply | 100_240VAC, 50/60Hz |
Power Consumption | Maximum: 8.38W (220V/50Hz) |
Dimensions ( W x D x H ) | 11.6 × 7.1 × 1.7 in. (294 × 180 × 44 mm) |
Mounting | Rack Mountable |
Max Power Consumption | 6.836 W (220 V/50 Hz) |
Max Heat Dissipation | 23.32 BTU/h |
PERFORMANCE | |
---|---|
Bandwidth/Backplane | 20Gbp |
Packet Forwarding Rate | 14.9Mpps |
MAC Address Table | 8k |
Packet Buffer Memory | 4Mb |
Jumbo Frame | 9KB |
SOFTWARE FEATURES | |
---|---|
Quality of Service | Support 802.1p CoS/DSCP priority Support 4 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow- based Rate Limiting Voice VLAN |
L2 Features | IGMP Snooping v1/v2/v3 MLD v1/v2 Snooping 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group) Spanning Tree STP/RSTP/MSTP Port isolation BPDU filtering/guard TC/Root protect Loop back detection 802.3x Flow Control LLDP/LLDP-MED DHCP VLAN Relay L2PT |
VLAN | Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) MAC/Protocol-based VLAN GARP/GVRP VLAN VPN (QinQ) Management VLAN configuration |
Access Control List | L2_L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID; Time Range Based |
Security | IP-MAC-Port-VID Binding AAA DHCP Snooping IEEE 802.1X Port/MAC Based authentication, Radius, Guest VLAN DoS Defend Dynamic ARP inspection (DAI) SSH v1/v2 SSL v2/v3/TLSv1 Port Security Broadcast/Multicast/Unknown-unicast Storm Control PPPoE |
IPv6 | Dual IPv4/IPv6 stack Multicast Listener Discovery (MLD) Snooping IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 |
IPv6 Applications | DHCPv6 Client Ping6 Tracert6 Telnet(v6) IPv6 SNMP IPv6 SSH IPv6 SSL Http/Https IPv6 TFTP |
Management | Web-based GUI and CLI management SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups) DHCP/BOOTP Client,DHCP Snooping,DHCP Option82 CPU Monitoring Port Mirroring Dual Image Time Setting: SNTP Integrated NDP/NTDP feature Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBS |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS |
Package Contents | Switch; Power Cord; Quick Installation Guide;Resource CD; Rackmount Kit; Rubber Feet |
System Requirements | Microsoft® Windows® 10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux. |
Environment | Operating Temperature: 0_~40_ (32_~104_); Storage Temperature: -40_~70_ (-40_~158_) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
