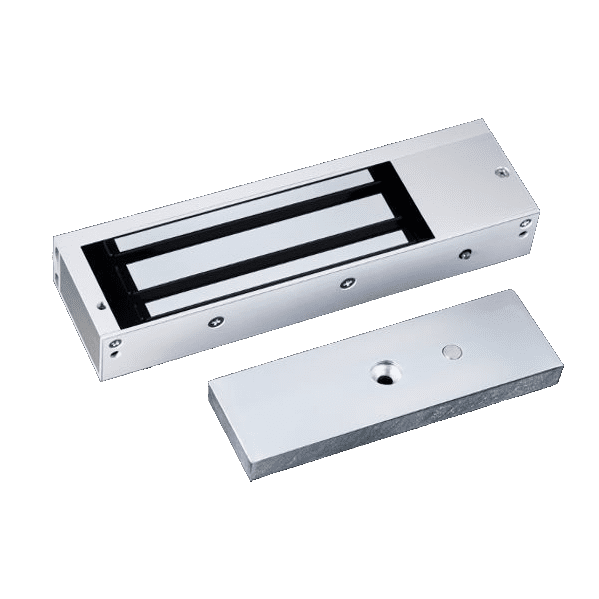

L-Series 1200lbs Single Electromagnetic Lock

• Voltage Input : 12 VDC / 24 VDC
• Current Draw : 12V / 420mA ; 24V / 210mA (±10%)
• Holding Force : Up to 1200 lbs (545 kg)
• Anti-Rust Surface Treatment : Nickel Plating (Armature)
• Operating Temperature : -10~55° C ( 14~131° F)
• Operating Humidity : 0~95% ( non condensing)
• Weight : 4.71 kg (±1%)
• Dimensions : Magnet – (H)266x(W)67x(T)40 mm
                             Armature – (H)185x(W)67x(T)16.5 mm

ALGATEC 1200LBS SINGLE ELECTROMAGNETIC LOCK

Part Number : UL545-DL

• 1200LBS EM Lock
• Lock Status Monitoring
• Monitored Type with Built-in Reed Switch
• Built-in Integrated Magnet On Armature (Optional)
• 12 / 24VDC (selectable type)
• Low Current Consumption
• Electroless Nickel (EN) Plated Armature Plate
• Anodized Aluminium Housing
• Instantaneous Release With In-built Electronic Device
• CE Compliance
