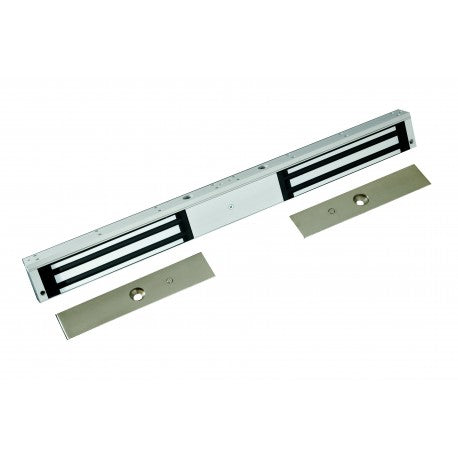

L-Series 600lbs Double Electromagnetic Lock

• Voltage Input : 12 VDC / 24 VDC
• Current Draw : 12V / 420mA ; 24V / 210mA (±10%)
• Holding Force : Up to 600 lbs (275 kg) X2
• Anti-Rust Surface Treatment : Nickel Plating (Armature)
• Operating Temperature : -10~55° C ( 14~131° F)
• Operating Humidity : 0~95% ( non condensing)
• Weight : 3.7 kg (±1%)
• Dimensions : Magnet – (H)500x(W)42x(T)26 mm
                             Armature – (H)180x(W)38x(T)11 mm

ALGATEC 600LBS DOUBLE ELECTROMAGNETIC LOCK

Part Number : UL275-DL

• 600LBS EM Lock
• Lock Status Monitoring
• Monitored Type with Built-in Reed Switch
• Built-in Integrated Magnet On Armature (Optional)
• 12 / 24VDC (selectable type)
• Low Current Consumption
• Electroless Nickel (EN) Plated Armature Plate
• Anodized Aluminium Housing
• Instantaneous Release With In-built Electronic Device
• CE Compliance

Installation Guide

EM LOCK BASIC INSTALLATION

UL275-DL STANDARD INSTALLATION



Catalogue

ALGATEC UL275-DL ELECTROMAGNETIC LOCK
