ALGATEC

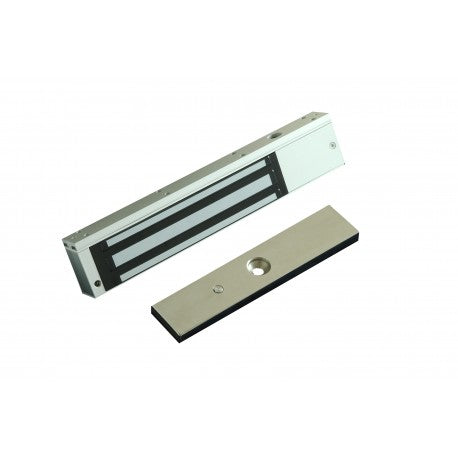

L-Series 600lbs Single Electromagnetic Lock

L-Series 600lbs Single Electromagnetic Lock

SKU:UL275-SL

Low stock: 1 left

Regular price Login to see prices
Regular price Login to see prices Sale price Login to see prices
Sale Sold out
Shipping calculated at checkout.
  • Voltage Input : 12 VDC / 24 VDC
  • Current Draw : 12V / 420mA ; 24V / 210mA (±10%)
  • Holding Force : Up to 600 lbs (275 kg)
  • Anti-Rust Surface Treatment : Nickel Plating (Armature)
  • Operating Temperature : -10~55° C ( 14~131° F)
  • Operating Humidity : 0~95% ( non condensing)
  • Weight : 3.7 kg (±1%)
  • Dimensions : Magnet – (H)250x(W)42x(T)26 mm
                               Armature – (H)180x(W)38x(T)11 mm
ALGATEC 600LBS SINGLE ELECTROMAGNETIC LOCK

Part Number : UL275-SL

  • 600LBS EM Lock
  • Lock Status Monitoring
  • Monitored Type with Built-in Reed Switch
  • Built-in Integrated Magnet On Armature (Optional)
  • 12 / 24VDC (selectable type)
  • Low Current Consumption
  • Electroless Nickel (EN) Plated Armature Plate
  • Anodized Aluminium Housing
  • Instantaneous Release With In-built Electronic Device
  • CE Compliance
View full details
