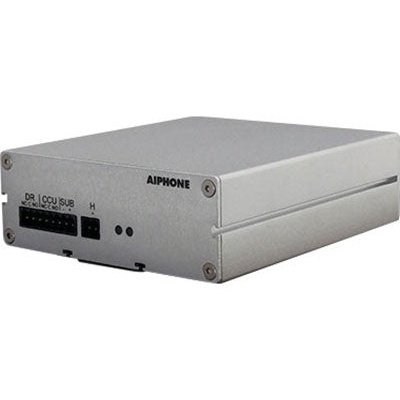

LE/NE Sub Station Adaptor for IX Series (Discontinued 12/31/22)

LE/NE Sub Station Adaptor for IX Series
Single Station

• Network Interface: Hardwired Stations: 10 BASE-T / 100 BASE-TX Ethernet (RJ-45)
• Network Protocols: IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP
• Audio Codec: G.711
• Temperature Rating: 32°F ~122°F (0°C ~ 50°C)
• Material: Aluminum
• Wire Type: Adaptor to Network Node: Cat-5e or Cat-6, Adaptor to Sub: 2-cond., overall shield - use Aiphone #821802 or #822202
• Distance: Adaptor to Sub: 650'(22 AWG) 1600'(18 AWG), Adaptor to Network Node: 330'

• PoE 802.3af, Class 0
• Compatible with LE and NE style stations (Ex. LE-D, LE-SS/A, NE-JA, NE-NVP/C, etc.)
• One station per IX-1AS
• Reuse existing two or three conductor wire
• Built-in Form C contact output for door release (N/O or N/C)
• Secondary built-in Form C contact output for external signaling or camera call-up (N/O or N/C)
