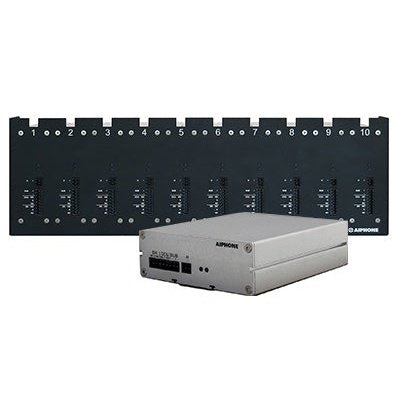

Legacy Intercom to IP Adaptor (Discontinued 12/31/2022)

Legacy Intercom to IP Adaptor

• Power Source: PoE (802.3af)
• Network Interface: 10 BASE-T / 100 BASE-TX Ethernet (RJ-45)
• Network Protocols: IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP,
• Bandwidth Usage: Audio (G.711): 64Kbps x 2 for communication
• Communication: Hands-free (full-duplex)
• Wire Type: IX-1AS to Network: Cat-5e or Cat-6 IX-1AS to Sub station: Stranded 18 to 22awg with overall shield.
• Wiring Distance: IX-1AS to Network: 100m (Approx. 330') IX-1AS to Sub station: 22awg 650', 18awg 1570'

• Compatible with LE and NE style stations
• Reuse existing two or three conductor wire
• One station per IX-1AS, up to 10 stations per IX-10AS
• PoE Powered (IEEE 802.3af Class 0)
• Built-in Form C contact output for door release (N/O or N/C)
• Secondary built-in Form C contact output for external signaling or camera call-up (N/O or N/C)
