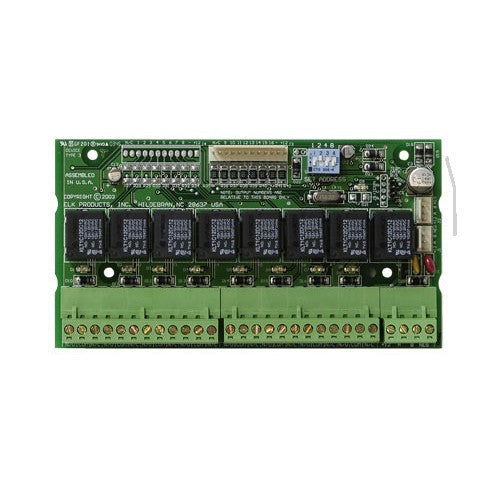

M1 M1OVR 16 Output Expander

Adds 16 outputs (8 voltage + 8 relays) to M1 Gold and EZ-24 Control Boards.

NESS M1 16 OUTPUT EXPANDER

Part Number : 101-212

Adds 16 outputs (8 voltage + 8 relays) to M1 Gold and EZ-24 Control Boards.



Operates on a 4 wire data bus.



Voltage outputs can used for triggering low current devices (50 mA max. each) the 8 relays have C.O. contacts.



Up to 12 output expanders can be used per system for a total of up to 208 outputs.



The voltage outputs can be converted to additional relay outputs using 101-123 M1-RB relay Board/s.

• 8 Voltage outputs

• 8 Single-pole, double-pole relay outputs rated 7A @30VdC

•operates on the 4-Wire data Bus

• dip Switch Address Settings

• flash Memory for firmware updating

• flying Lead Wire harness supplied

• Voltage outputs may be converted to relays using M1rB relay Boards (Ness part No. 101-213)

• Status LED with diagnostic display

• Vertical Mounting using eLK-SWg glides (supplied)
