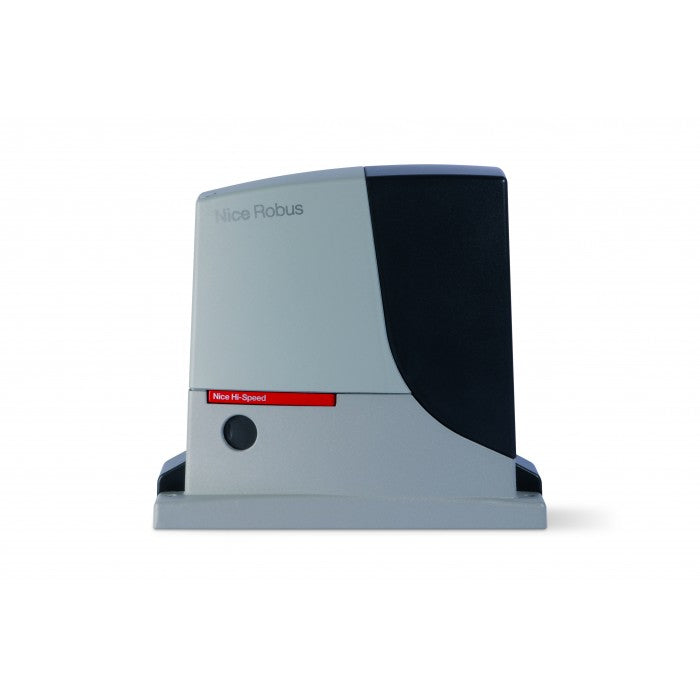

Nice Robus Hi-Speed RB500HS-M
Nice Robus Hi-Speed RB500HS-M
Low stock: 1 left
Nice 500kgs 24VDC High Speed Sliding Motor with
• 1pc Built-in Electronic Control Panel (RBA3/HS)
• 2pcs Limit Switch Bracket w/ Screw (3-Nice-RB/LSB)
• 2pcs Release Key (3-Nice-RB/RK)
• 1pc Base Plate w/ Screw (3-Nice-RB/BP)
Nice Robus 500 HS sliding gates weighing up to 500 kg.
Compatible for operation with Nice Solemyo and O-View
Features & Benefits:
- Speed: class leading speed up to 0.43 m/s thanks to superb mechanical engineering and uncompromising component quality.
- Endurance: Robus redefines intensive use as a standard. Robus 500 guarantees no less than 450 operations per day.
- Reliability: a genuine battery back-up system (optional extra) guarantees continued operation during power outages. The intelligent charger and system design ensures battery longevity.
- Intelligence: the smart controller offers:
- - 8 programming levels and self-diagnosis; a master/slave selection automatically synchronizes two motors
- - up to 7 pairs of safety beams can be added using only 2 wires, thanks to the Nice BlueBUS technology
- - Temperature sensor to automatically adapt to climatic conditions.
- Durability: base and release in pressure die cast aluminium and epoxy paint finish.
- Silence: gear motor on bearings ensures silent operation.
- Compatible with the Nice Opera system: connect to the hand held O-View programmer for a simple and easy to use interface. You don’t’ have to be on your knees to program a Robus!
- Compatible with Nice Solemyo solar power kit: Just plug it in to harness the power of the sun and enjoy a cable free installation!
- Compatible with the Nice IT4WIFI module: Control your Robus with your smart phone!
Technical Specifications
Code |
RB500 HS |
Electrical data | |
Power supply (Vac 50 Hz) |
230 |
Absorption (A) |
2.2 |
Power (W) |
450 |
Performance data | |
Speed (m/s) |
0.43 |
Force (N) |
360 |
Work cycle (cycles/day) |
450 |
Operations in standby with battery |
20 |
Dimensional and general data | |
Protection level (IP) |
44 |
Working temp. ( °C Min/Max) |
-20 ÷ +50 |
Dimensions (mm) |
330x210x303 h |
Weight (kg) |
11 |
