Nice Robus RB600A-CP1
Nice Robus RB600A-CP1
Low stock: 1 left
Nice 600kgs 24VDC double speed sliding motor complete set with :
• 1pc built-in electronic control panel (RBA3)
• 2pcs limit switch bracket w/ screw (3-Nice-RB/LSB)
• 2pcs release key (3-Nice-RB/RK)
• 1pc base plate w/ screw (3-Nice-RB/BP)
• 3pcs 2 channel transmitter (3-RCS1-TX)
• 1pc 2 channel receiver (3-RCS1-RX)
• 4pcs gear rack (3-GR-01)

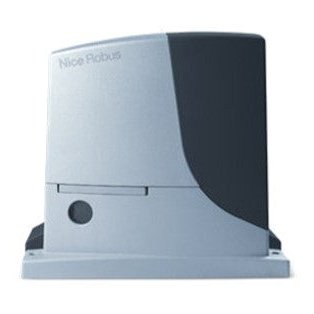

Nice Robus 600
For sliding gates weighing up to 600 kg. Electromechanical gear motor with Nice BlueBUS technology. Versions with electromechanical limit switch (RB600)
Features & Benefits:
Compatible for operation with Solemyo and Opera systems.
- User-friendly: the Nice BlueBUS technology, enables to power and control a maximum of seven couples of photocells from the MoonBus series using two wires only.
- Practical: the control unit and PS124 buffer battery (optional) can be connected by means of a simple connector and can be housed directly inside the motor.
- Advanced: RB600 is equipped with a temperature sensor: adapt the motor power to the climatic conditions and at the same time thermal cut-out. A master/slave selection automatically synchronises two motors. This means it is possible to automate 2-leaf sliding gates set opposite each other.
- Intelligent: thanks to the obstacle detection system and automatic programming of the working times. Self-diagnosis by means of a ?ashing light. 8 programming levels.
- Safe: acceleration and deceleration can be adjusted at the beginning and end of each opening and closing manoeuvre.
- Sturdy: base and release in pressure die cast with easy to open handle.
- Very quiet: gear motor on bearings.
Technical Specifications
Code |
RB600 |
Electrical data | |
Power supply (Vac 50 Hz) |
230 |
Absorption (A) |
2.5 |
Power (W) |
515 |
Built-in capacitor (?F) |
- |
Performance data | |
Speed (m/s) |
0.31 |
Force (N) |
600 |
Work cycle (cycles/hour) |
40 |
Dimensional and general data | |
Protection level (IP) |
44 |
Working temp. ( °C Min/Max) |
-20 ÷ +50 |
Dimensions (mm) |
330x210x303 h |
Weight (kg) |
11 |
