Nice 2500kg 230VAC sliding motor complete set c/w:

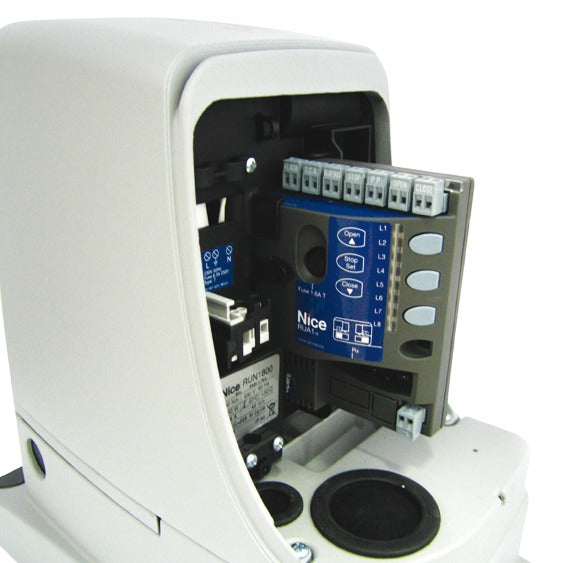

• 1pc built-in RUA1 electronic control panel
• 2pcs limit switch bracket w/ screw

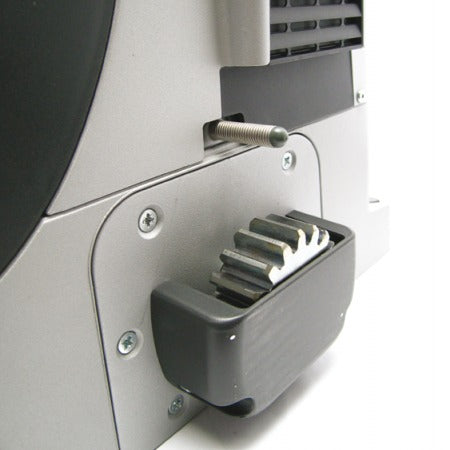

• 2pcs release key
• 1pc base plate w/ screw

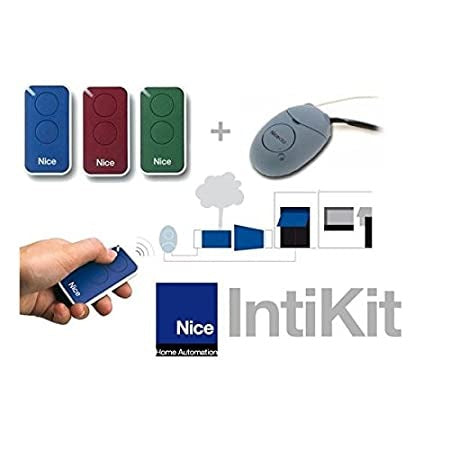

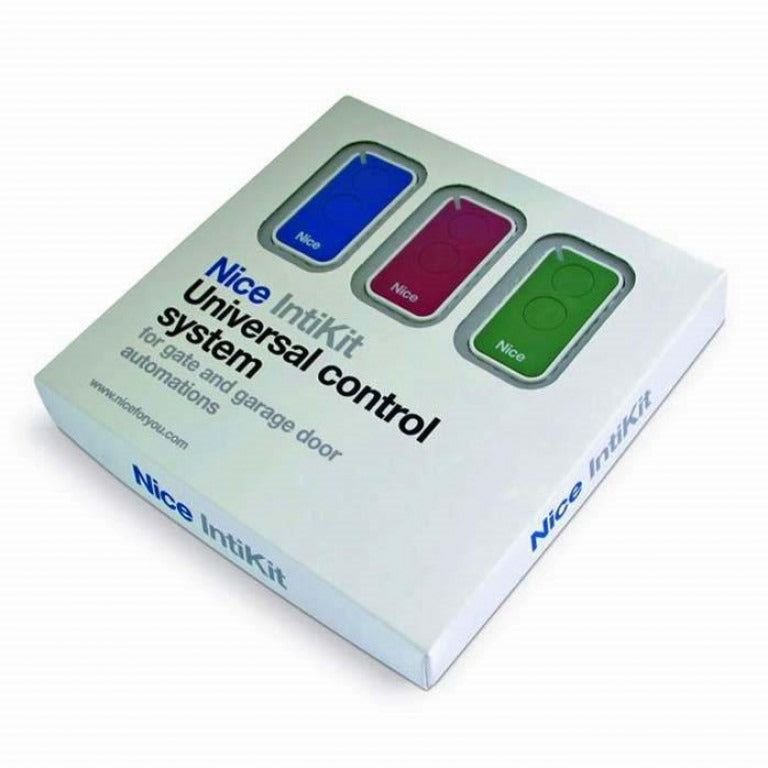

• 3pcs Nice 2 channels transmitter (R/B/G) (ERA-INTI)
• 1pc Nice 2 channel receiver (OX2)
• 4pc gear rack (3-GR-01)

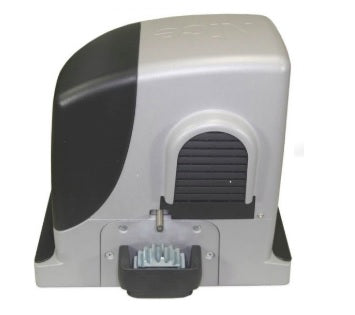

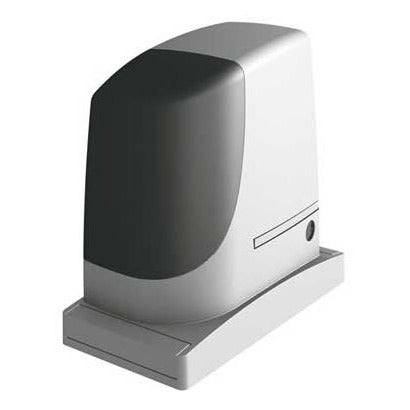

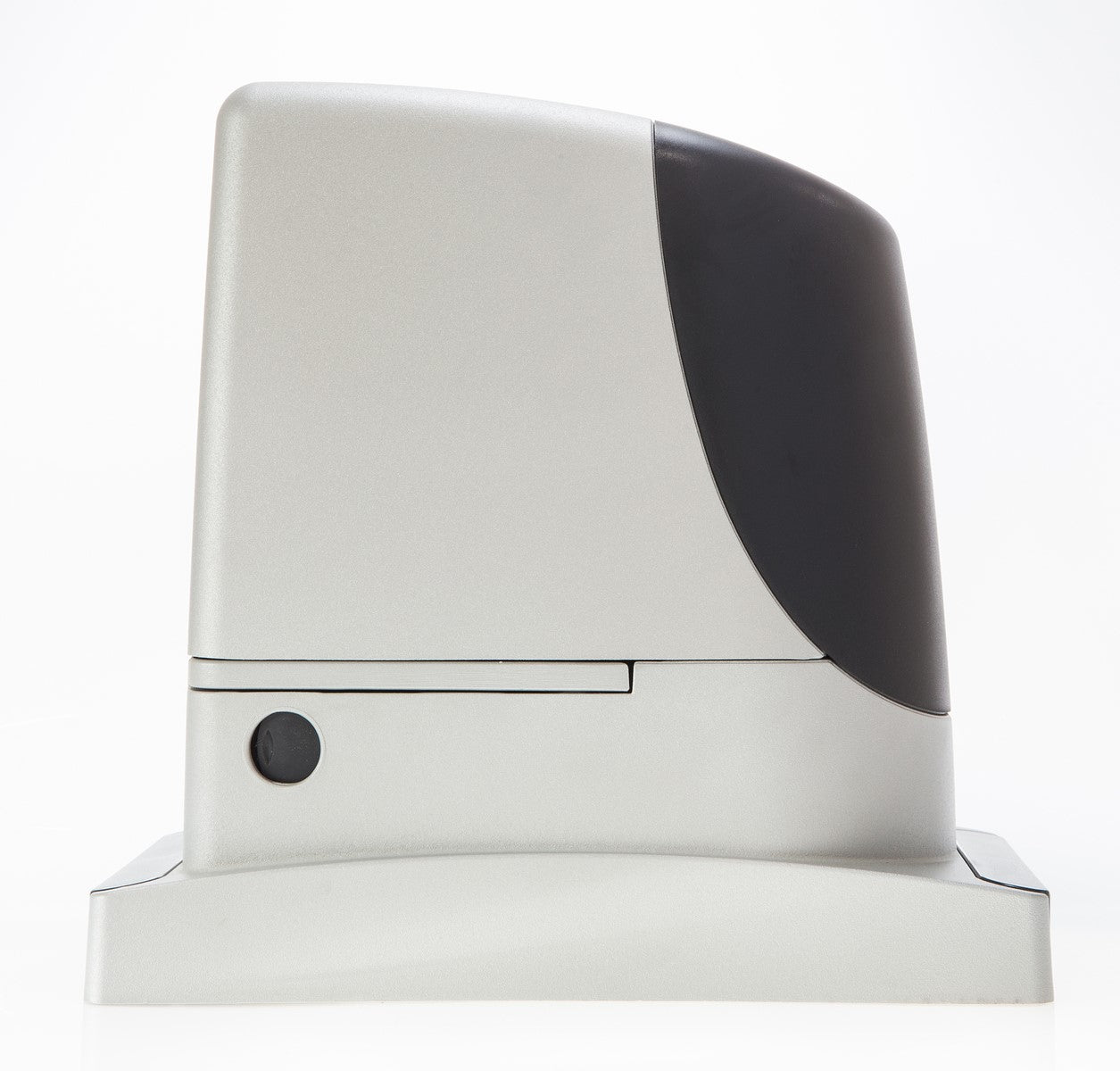

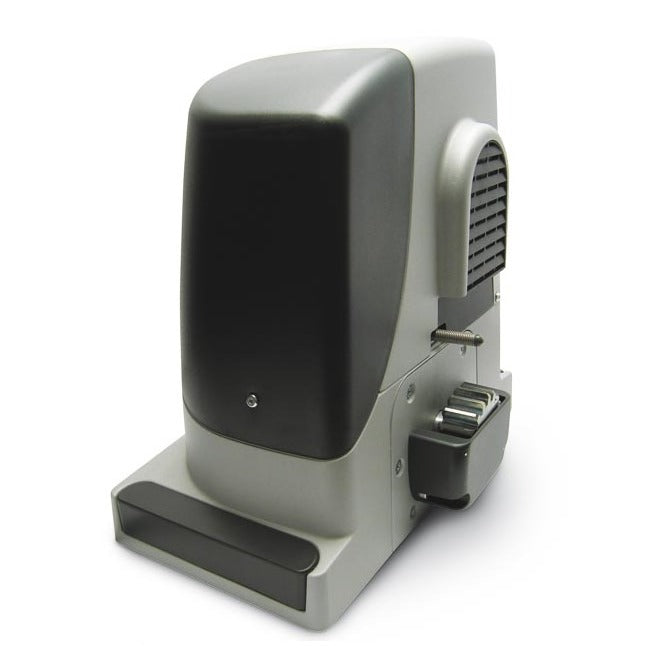

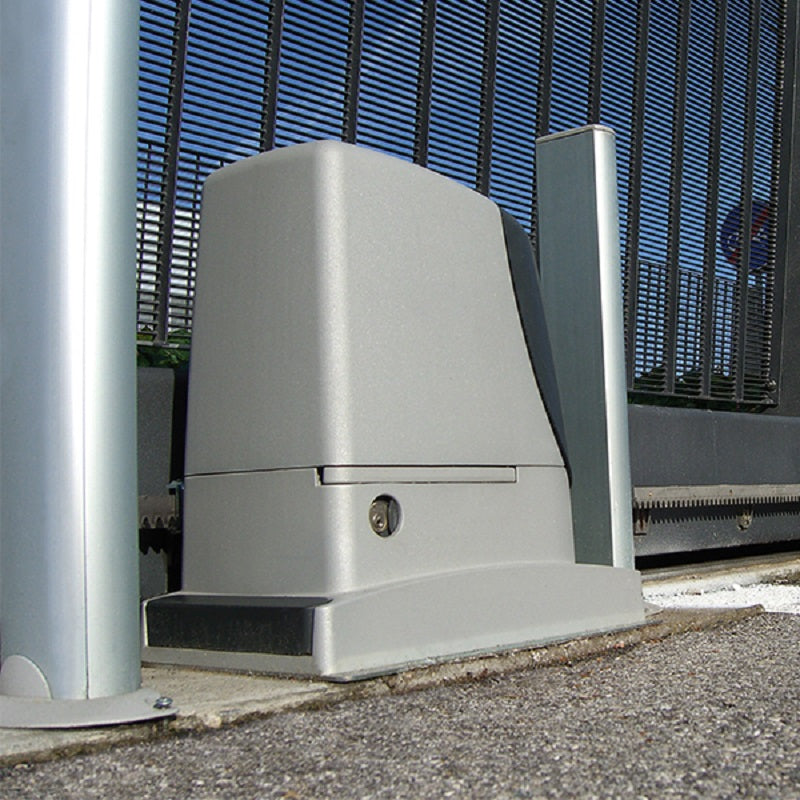

Nice RUN 2500
Nice RUN 2500
For sliding gates weighing up to 2500 kg (RUN2500) with Nice BlueBUS technology. Electromechanical limits switch (RUN2500/RUN2500l). Suitable to operate in extreme conditions, in systems for intensive use.
Features & Benefits:
Compatible for operation with Opera system.
– Simple to install: the BlueBUS system enables connections by means of just two wires between the control unit and up to 15 control safety and signalling devices
– Safe: the acceleration settings (at the start of the manoeuvre) and the deceleration settings (at the end of the manoeuvre) are precise and reliable
– The temperature sensor: Run is able to manage force, adapting it to the different climatic and environmental conditions, while adapting the thermal cut-out protection and intensity of self-ventilation, depending on the temperature reading. A master/slave selection also automatically synchronises 2 motors, enabling the automation of sliding gates with two opposing leafs
– Practical and functional: the control unit housed inside Run, can be simply connected by means of the practical connector guide
– Very quiet: gear motor on bearings
Technical specifications
Technical specifications:
| Code |
RUN2500I
|
| Electrical data |
|
| Power supply (Vac 50 Hz) |
230
|
| Absorption (A) |
3.7
|
| Power (W) |
650
|
| Built-in capacitor (?F) |
14
|
| Performance data |
|
| Speed (m/s) |
0.26
|
| Force (N) |
1660
|
| Work cycle (cycles/hour) |
28
|
| Dimensional and general data |
|
| Protection level (IP) |
44
|
| Working temp. ( °C Min/Max) |
-20 ÷ +50
|

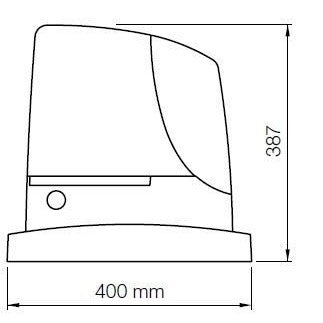

| Dimensions (mm) |
400x255x390 h
|
| Weight (kg) |
25
|
