Nice

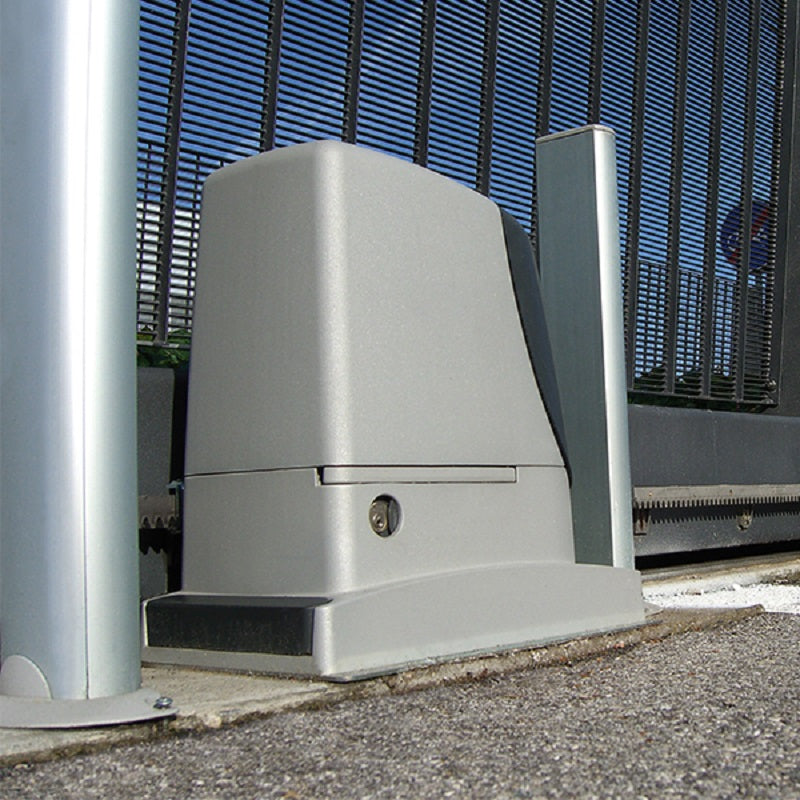

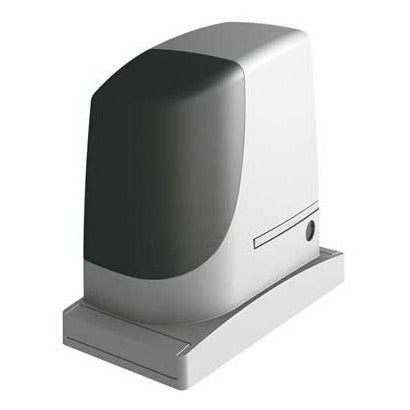

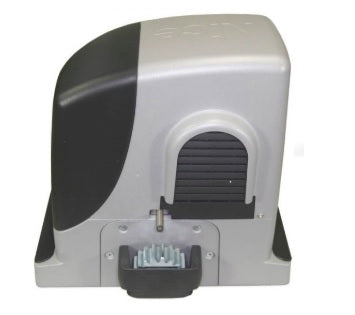

Nice RUN2500I/A-CP2

Nice RUN2500I/A-CP2

SKU:RUN2500I/A-CP2

Low stock: 1 left

Regular price Login to see prices
Regular price Login to see prices Sale price Login to see prices
Sale Sold out
Shipping calculated at checkout.

Nice 2500kg 230VAC sliding motor complete set c/w:
• 1pc built-in RUA2 electronic control panel
• 1pc built-in RUA3 inverter kit
• 2pcs limit switch bracket w/ screw
• 2pcs release key
• 1pc base plate w/ screw

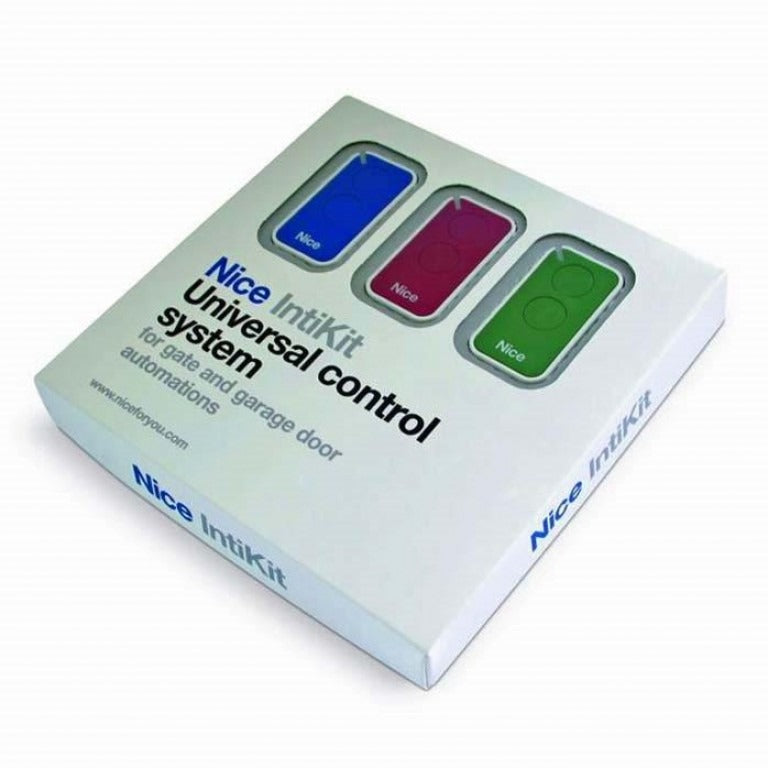

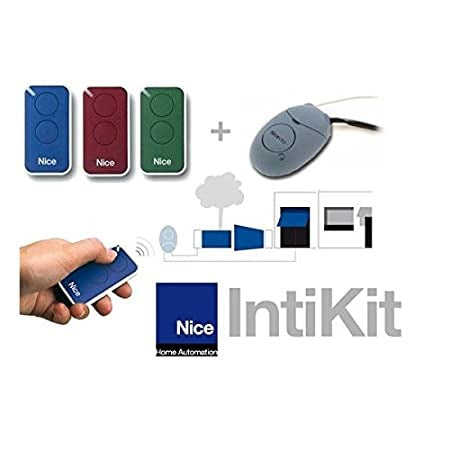

• 3pcs 2 channels transmitter (R/B/G) (ERA-INTI)
• 1pc 2 channel receiver (OX2)
• 4pc gear rack (3-GR-01)

Notes:

(Inverter technology for faster speed)

Nice RUN 2500I

Nice RUN 2500I

For sliding gates weighing up to 2500 kg (RUN2500) with Nice BlueBUS technology. Electromechanical limits switch (RUN2500/RUN2500l). Suitable to operate in extreme conditions, in systems for intensive use.

Features & Benefits:

Compatible for operation with Opera system.

  • Simple to install: the BlueBUS system enables connections by means of just two wires between the control unit and up to 15 control safety and signalling devices
  • Safe: the acceleration settings (at the start of the manoeuvre) and the deceleration settings (at the end of the manoeuvre) are precise and reliable
  • The temperature sensor: Run is able to manage force, adapting it to the different climatic and environmental conditions, while adapting the thermal cut-out protection and intensity of self-ventilation, depending on the temperature reading. A master/slave selection also automatically synchronises 2 motors, enabling the automation of sliding gates with two opposing leafs

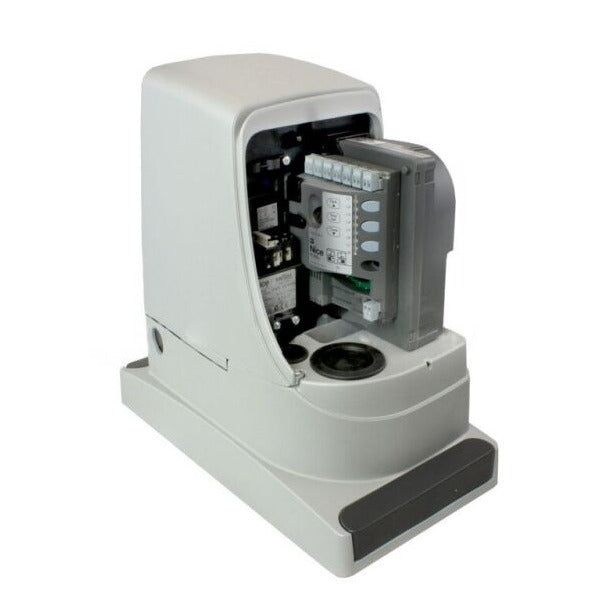

  • Practical and functional: the control unit (and inverter on version RUN2500I), housed inside Run, can be simply connected by means of the practical connector guide
  • Very quiet: gear motor on bearings
  • New version RUN2500I with built-in inverter: Perfect movement: the inverter enables the power supply and drive of the 3-phase motor with single-phase current at 230 Vac, acting on the frequency to adjust speed of the automation from a minimum of 8.2 m/min to maximum 15.4 m/min. In the automation deceleration phase, the inverter, which dialogues with the control unit, increases the torque, thus improving performance and reducing the risk of the automation blocking on impact with obstacles.
Technical specifications

Technical specifications:

Code

RUN2500I

Electrical data
Power supply (Vac 50 Hz)

230

Absorption (A)

3.7

Power (W)

650

Built-in capacitor (?F)

14

Performance data
Speed (m/s)

0.26

Force (N)

1660

Work cycle (cycles/hour)

28

Dimensional and general data
Protection level (IP)

44

Working temp. ( °C Min/Max)

-20 ÷ +50

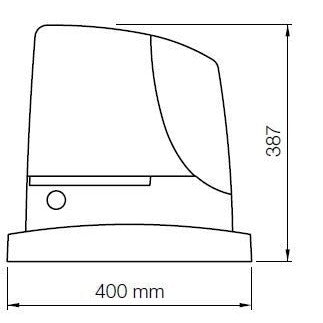

Dimensions (mm)

400x255x390 h

Weight (kg)

25

Catalogue

Nice Run2500 & Run2500I

User Manual User Manual

Nice INTI KIT Pairing Video
