TP-Link

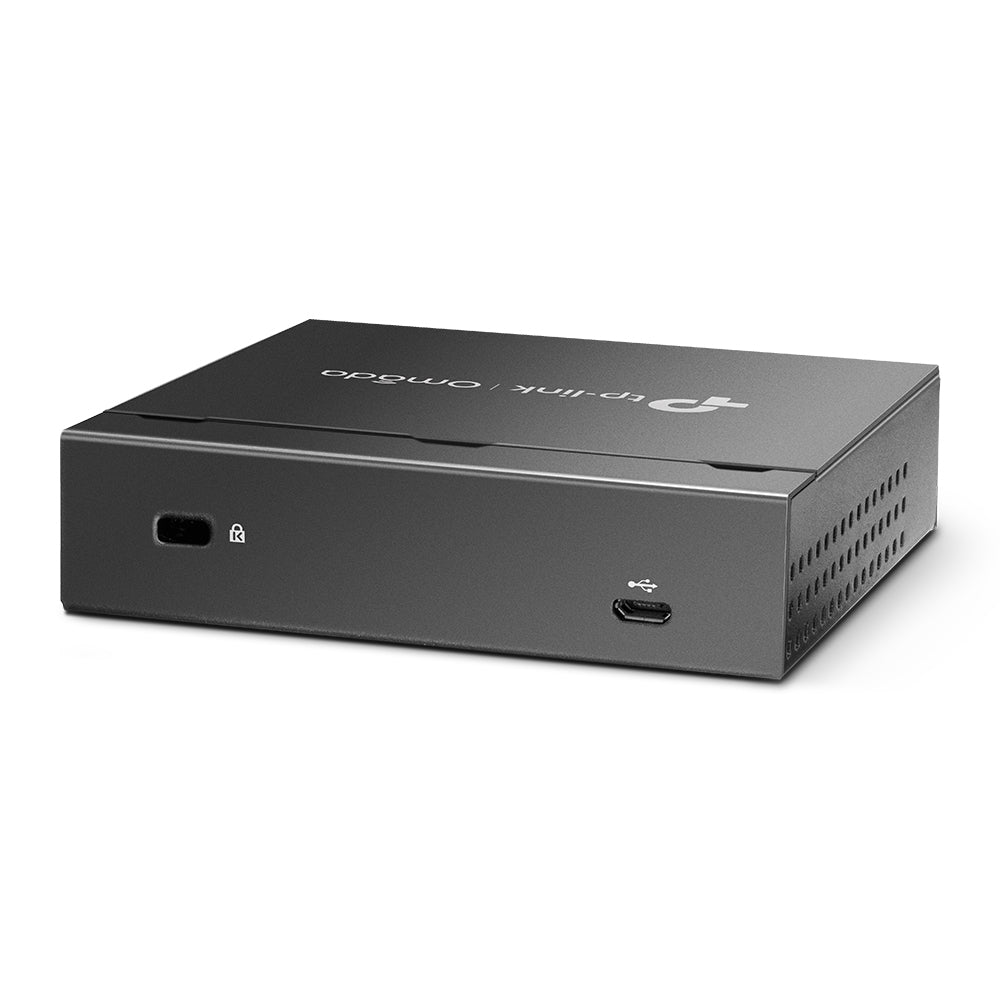

Omada Cloud Controller
Omada Cloud Controller
SKU:OC200
Low stock: 1 left
Shipping calculated at checkout.
Couldn't load pickup availability
- Omada Wi-Fi network controller
- Accessible through direct access, cloud portal or mobile app
- Pre-installed Omada controller software. Power it on and start to play.
- No license fee, no monthly fee, manage from anywhere, anytime
- Dual power selection PoE (802.3af/802.3at) and micro USB flexible installations
- Powerful CPU and USB auto backup for robustness and stability
- Secure guest network with multiple login options(Facebook Wi-Fi, SMS login, Voucher)
| HARDWARE FEATURES | |
|---|---|
| Interface | 2 × 10/100Mbps Ethernet Port 1 × USB 2.0 Port for configuration backup 1 × Micro USB Port for power |
| Power Supply | 802.3af/at PoE or Micro USB_DC 5V/1A_ |
| Power Consumption | 5 W |
| Dimensions | 3.9 × 3.9 × 1.0in. (100 × 98 × 25mm) |
| FEATURES | |
|---|---|
| Management Scale | 50 EAPs |
| Wireless Fuction | L3 Management Multi-SSID Load Balance Band Steering Airtime Fairness Beamforming Rate Limit Wireless Schedule QoS |
| Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection |
| AP Management | Automatic Discovery Unified Configuration Reboot Schedule Batch Firmware Upgrade LED ON/OFF |
| Authentication | WPA Personal and Enterprise Captive Portal Facebook login SMS authentication Voucher authentication |
Specifications
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Centralized Management | Up to 100 Omada access points, JetStream switches, and SafeStream routers |
| Cloud Access | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management Features | • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration |
| OTHERS | |
|---|---|
| Certification | FCC, RoHS |
| Package Contents | Omada Cloud Controller OC200 Quick Installation Guide Ethernet Cable |
| System Requirements | Internet |
| Environment | Operating Temperature: 0_~40_ (32_~104_) Storage Temperature: -40_~70_ (-40_~158_) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
