TP-Link

PoE Splitter Adapter

PoE Splitter Adapter

SKU:TL-PoE10R

Low stock: 1 left

Regular price Login to see prices
Regular price Login to see prices Sale price Login to see prices
Sale Sold out
Shipping calculated at checkout.
  • IEEE 802.3af compliant
  • Selectable power output
  • Gigabit speed support
  • Plug-and-Play, requires no configuration
Specifications
HARDWARE FEATURES
Interface 2 10/100/1000Mbps RJ45 Port
AUTO Negotiation/AUTO MDI/MDIX

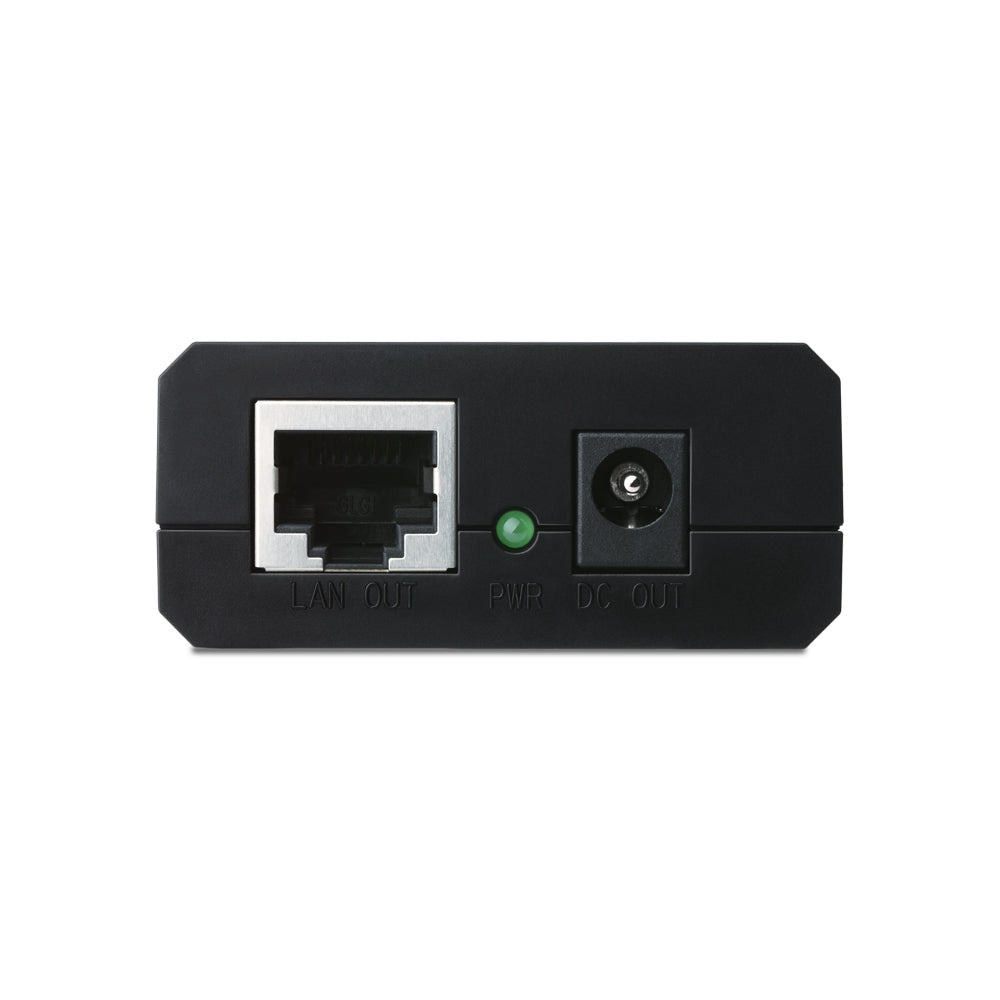

1 POWER OUTPUT PORT (5.5 mm round barrel)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

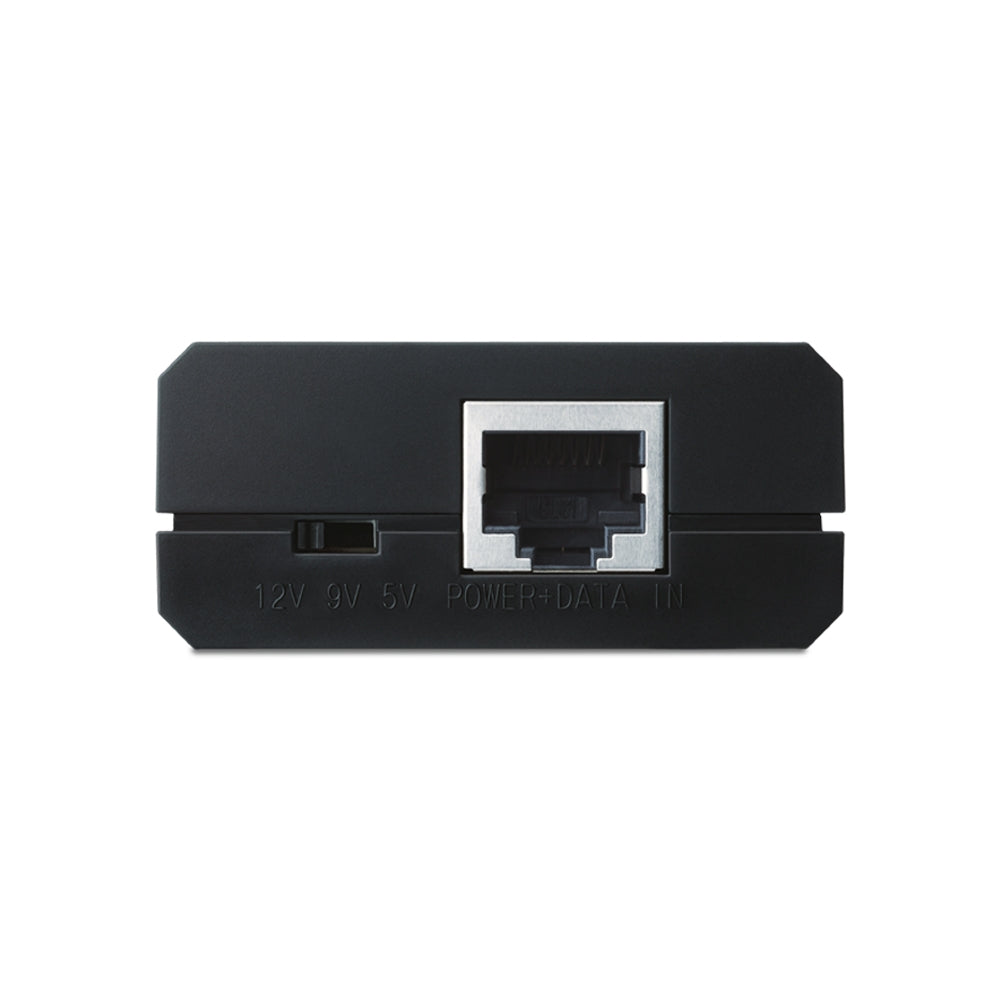

Power Supply 12VDC 1A, 9VDC 1A, 5VDC 2A selectable
Basic Function Compatible With IEEE 802.3af Compliant PSEs
Delivers Power Up To 100 Meters
Optional 12VDC, 9VDC or 5VDC Power Output
LED Indicator PWR
Dimensions ( W x D x H ) 3.2 × 2.1 × 0.9 in.
(81 × 54 × 24 mm)



SOFTWARE FEATURES
Basic Function Compatible with IEEE 802.3af compliant power sources (PSE)
Delivers power up to 100 meters
Selectable 12VDC, 9VDC or 5VDC power output
Specifications
OTHERS
Certification FCC, RoHS
Package Contents PoE Splitter TL-POE10R
Power Cord
RJ45 Cable
Installation Guide
Environment Operating Temperature: 0_~40_ (32_~104_)
Storage Temperature: -40_~70_ (-40_~158_)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
