TP-Link

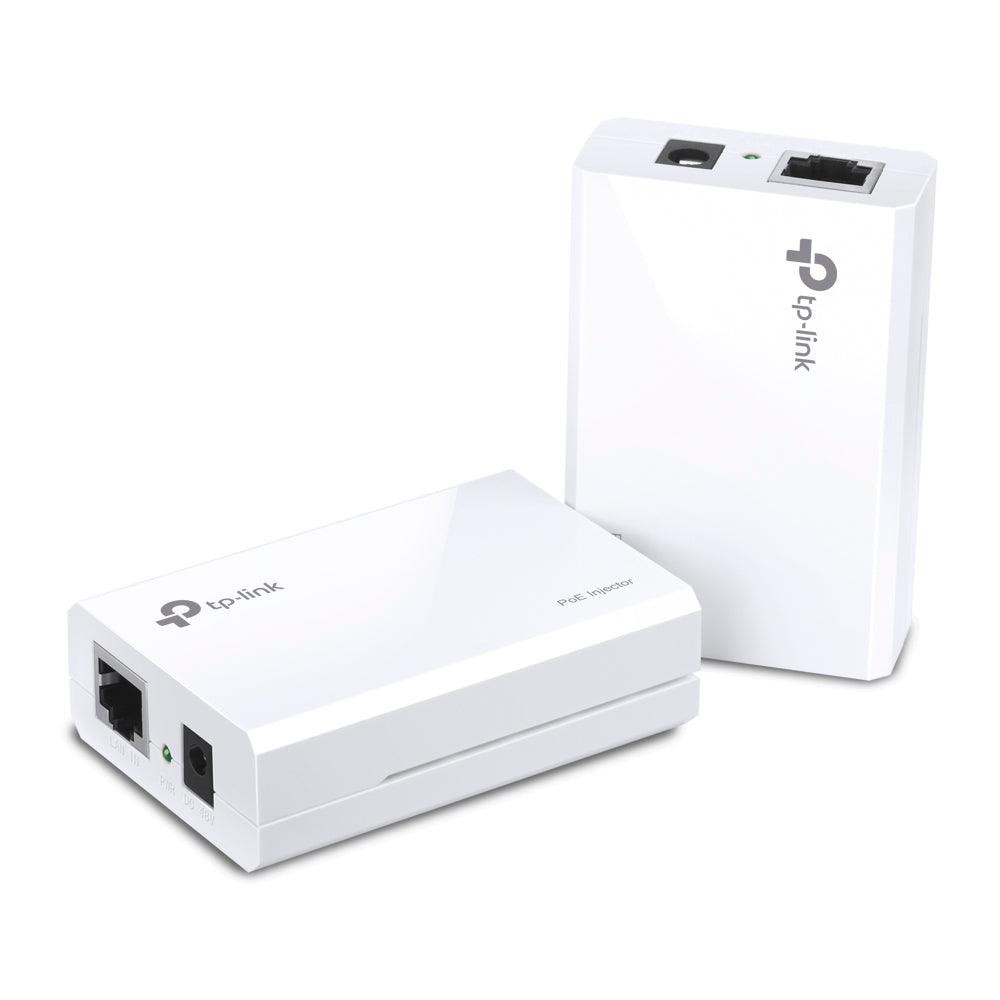

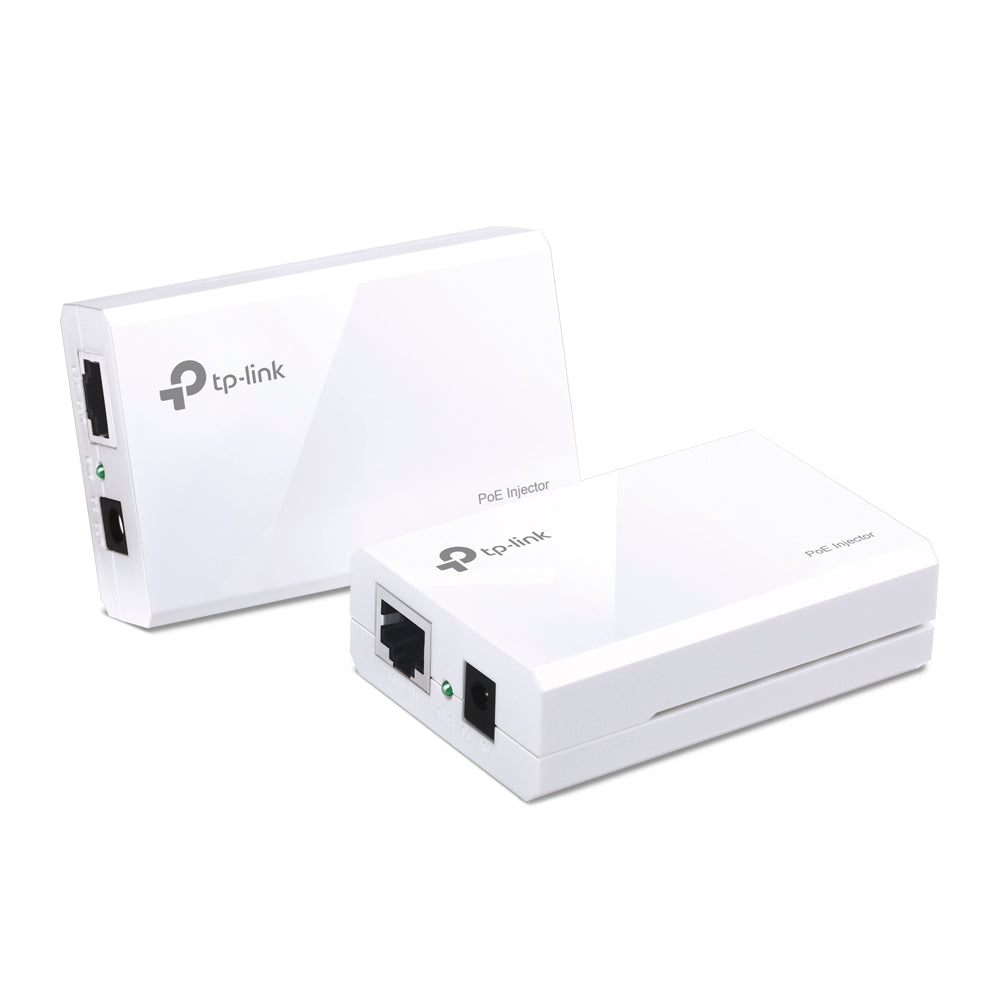

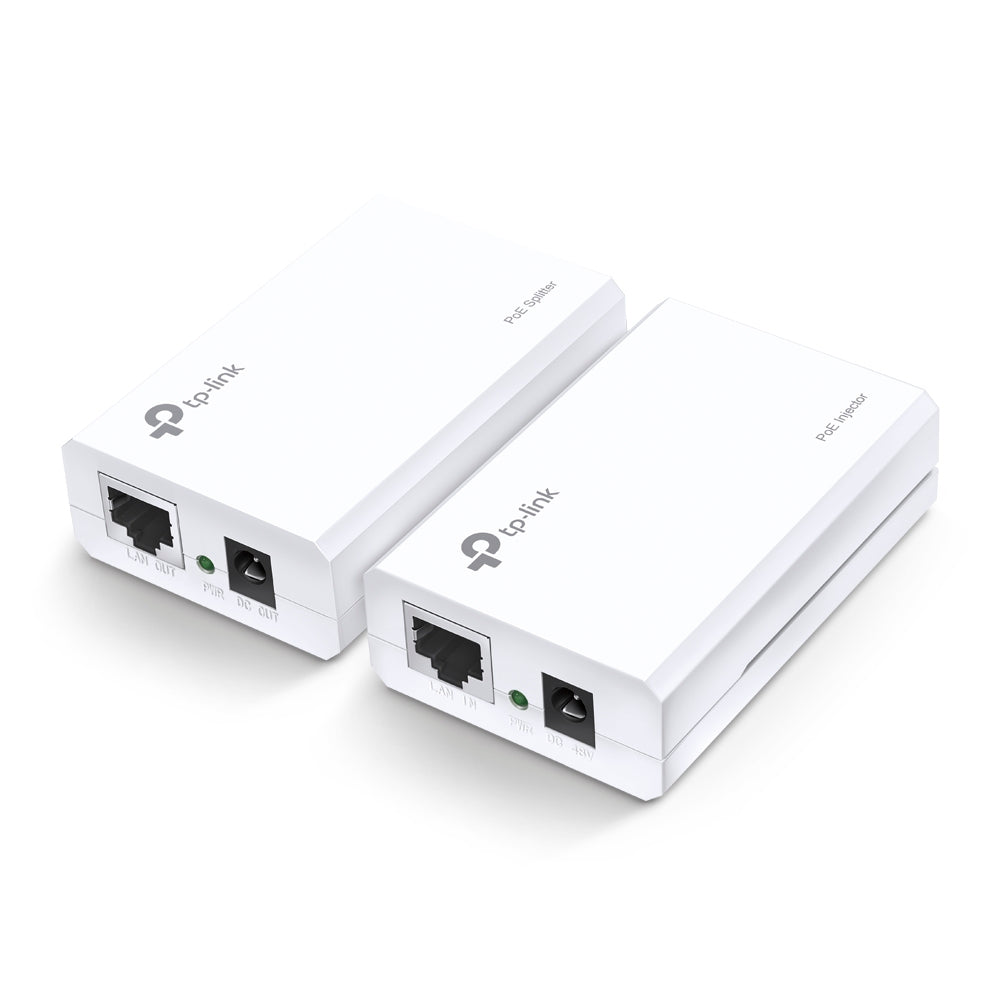

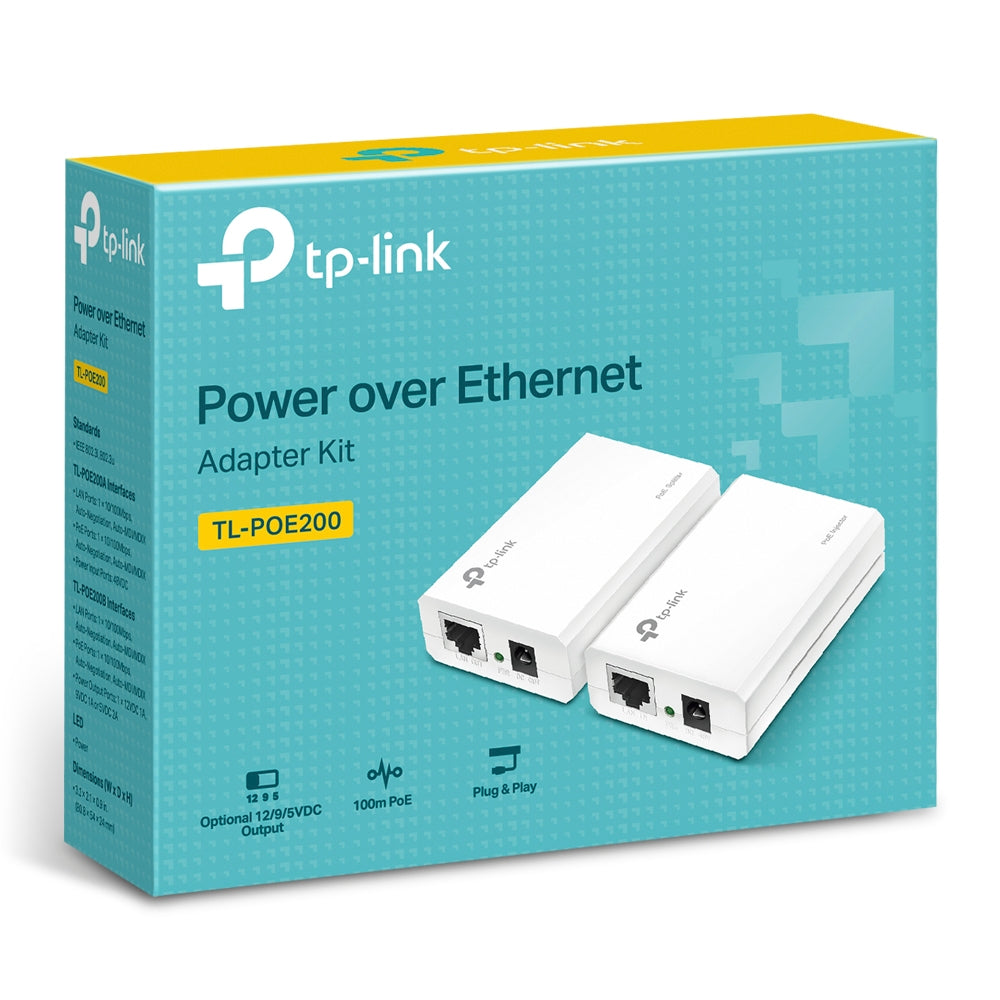

Power over Ethernet Adapter Kit
Power over Ethernet Adapter Kit
SKU:TL-PoE200
Low stock: 1 left
Shipping calculated at checkout.
Couldn't load pickup availability
- Carries power & data over a single Ethernet cable up to 100 meters (328 feet) away
- 12VDC, 9VDC, or 5VDC selectable power output
- Plug-and-Play, requires no configuration
| HARDWARE FEATURES | |
|---|---|
| Interface | For POE200A_ 1 10/100Mbps Auto-Negotiation/Auto MDI/MDIX RJ45 LAN port 1 10/100Mbps Auto-Negotiation/Auto MDI/MDIX RJ45 PSE port 1 48VDC power input port For POE200B: 1 10/100Mbps Auto-Negotiation/Auto MDI/MDIX RJ45 LAN port 1 10/100Mbps Auto-Negotiation/Auto MDI/MDIX RJ45 PD port 1 12/9/5VDC power output port (5.5 mm round barrel) |
| LED Indicator | PWR |
| Dimensions ( W x D x H ) | 3.2 × 2.1 × 0.9 in. (81 × 54 × 24 mm) |
| OTHERS | |
|---|---|
| Power Supply Unit of PoE Injector | Input: 100~240VAC Output: 48V, 0.5A Switching PSU |
| Output Power For PoE Splitter | 12, 9, 5VDC selectable |
| Environment | Operating Temperature: 0_~40_ (32_~104_) Storage Temperature: -40_~70_ (-40_~158_) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
