TP-Link

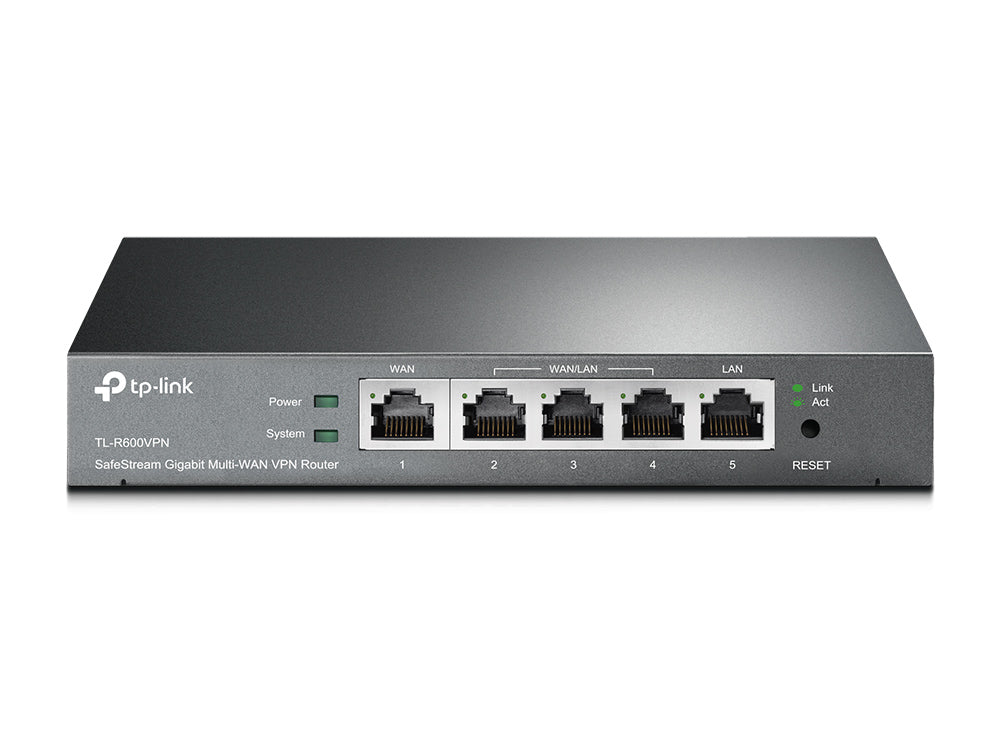

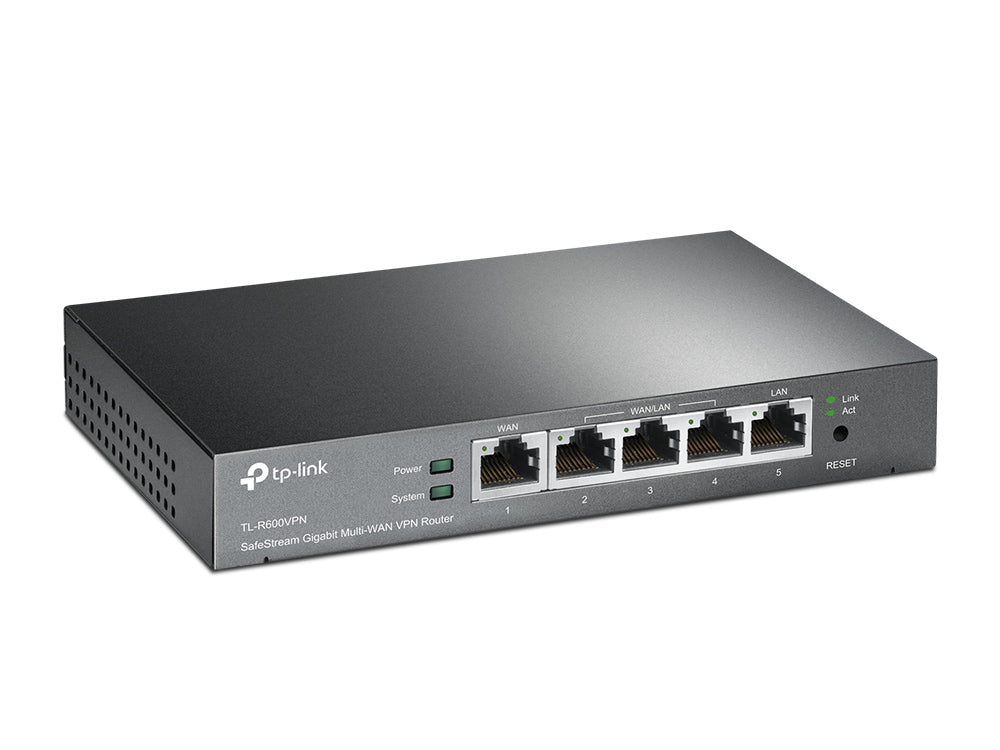

SafeStream™ Gigabit Broadband VPN Router
SafeStream™ Gigabit Broadband VPN Router
SKU:TL-R600VPN
Low stock: 1 left
Shipping calculated at checkout.
Couldn't load pickup availability
- 1 Gigabit WAN port, 1 Gigabit LAN Port, and 3 Gigabit WAN/LAN ports provide high-speed wired connectivity
- Supports IPSec, L2TP/IPSec, and PPTP VPN protocols, Simultaneous supports up to 20 IPsec VPN tunnels, 16 L2TP VPN tunnels and 16 PPTP VPN tunnels
- SPI firewall and DoS defense protect your network from most known Internet attacks
- Professional 4KV lightning protection keeps your investment safe and sound1
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3, 802.3u, 802.3ab TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP |
| Interface | 1 Fixed Gigabit WAN Port 1 Fixed Gigabit LAN Port 3 Changeable Gigabit WAN/LAN Ports |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) |
| Button | Reset Button |

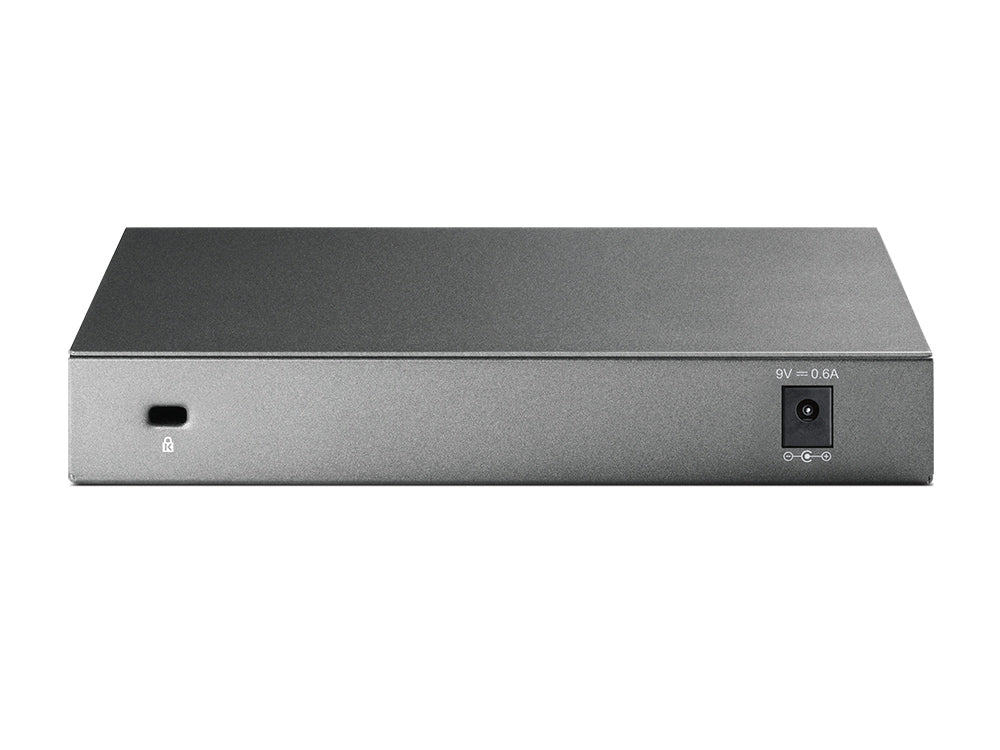

| Power Supply | External 9V/0.6A DC Adapter |
| Flash | SPI 16MB |
| DRAM | DDR II 128MB |
| LED | PWR, SYS, WAN, LAN |
| Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in. (158 × 101 × 25mm) |
| PERFORMANCE | |
|---|---|
| Concurrent Session | 20K |
| NAT Throughput | 680Mbps |
| IPsec VPN Throughput (3DES) | 13Mbps |
| BASIC FUNCTIONS | |
|---|---|
| WAN Connection Type | Static/Dynamic IP,PPPoE/Russian PPPoE, PPTP/Russian PPTP, L2TP/Russian L2TP, Bigpond Cable |
| DHCP | DHCP Server/Client DHCP Address Reservation |
| MAC Clone | Modify WAN MAC Address |
| ADVANCED FUNCTIONS | |
|---|---|
| ACL | IP/MAC/Domain Name Filtering |
| Advanced Routing | Static Routing Policy Routing |
| ARP Inspection | IP/MAC Binding |
| Bandwidth Control | IP/Port-based Bandwidth Control Guarantee & Limited Bandwidth |
| Forwarding | Virtual Server Port Triggering DMZ UPnP |
| Security | SPI Firewall VPN Passthrough FTP/TFTP/H.323/RTSP ALG DoS Defence, Ping of Death Local Management |
| VPN | |
|---|---|
| IPsec VPN | 20 IPsec VPN Tunnels LAN-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm MD5, SHA1 Authentication Algorithm Manual, IKE Key Management Mode Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS) |
| PPTP VPN | 16 PPTP VPN Tunnels PPTP VPN Server PPTP with MPPE Encryption |
| L2TP VPN | 16 L2TP VPN Tunnels |
| MANAGEMENT | |
|---|---|
| Service | Dynamic DNS (DynDNS and No-IP) |
| Maintenance | Time Setting Diagnostic Firmware Upgrade Factory Defaults/Reboot Backup&Restore System Log Remote Management Statistics |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | TL-R600VPN Power Adapter RJ-45 Ethernet Cable Quick Installation Guide |
| Environment | Operating Temperature: 0_~40_ (32_~104_); Storage Temperature: -40_~70_ (-40_~158_) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
