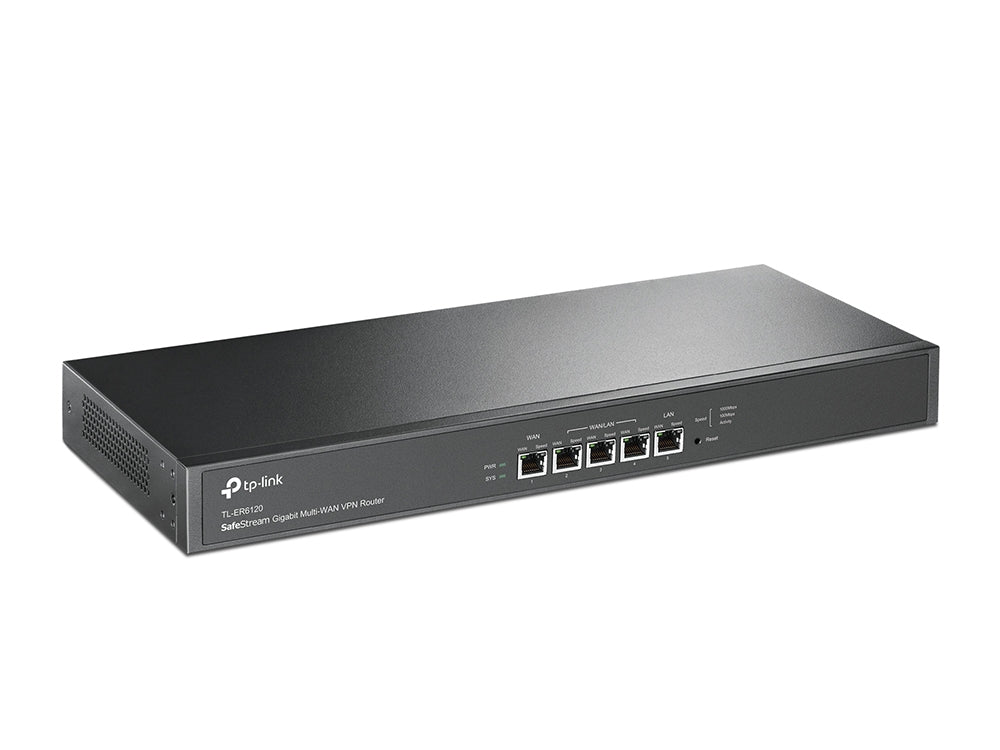

SafeStream™ Gigabit Dual-WAN VPN Router
SafeStream™ Gigabit Dual-WAN VPN Router
Low stock: 1 left
- 64-bit network dedicated processor, 512MB DDRIII high-speed memory, for higher business network performance
- Equipped with 1 Gigabit WAN port, 3 Gigabit WAN/LAN ports and 1 Gigabit LAN port
- Supports multiple VPN protocols including IPsec/PPTP/L2TP, helping users to establish VPN connections more flexibly
- Supports up to 100 IPsec VPN tunnels with a hardware-based VPN engine
- Captive portal provides a convenient method for guest authentication
- Abundant features including load balance, bandwidth control and access control
- Professional 4KV lightning protection keeps your investments as safe as possible
HARDWARE FEATURES | |
---|---|
Standards and Protocols | IEEE 802.3, IEEE802.3u, IEEE802.3ab TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP |
Interface | 1 Gigabit WAN port 3 Gigabit WAN/LAN ports 1 Gigabit LAN port |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) |
Button | Reset Button |
Power Supply | Internal Universal Power Supply AC100-240V~ 50/60Hz Input |
Flash | 32MB |
DRAM | DDRIII 512MB |
LED | PWR, SYS, Link/Act, Speed |
Dimensions ( W x D x H ) | 17.3x7.1x1.7 in.(440x180x44 mm) |
PERFORMANCE | |
---|---|
Concurrent Session | 150000 |
NAT Throughput | 800Mbps |
NAT(iMIX) | 936Mbps |
NAT(DHCP) | 878Mbps |
NAT(PPPoE) | 665Mbps |
IPsec VPN Throughput (AES256) | 373Mbps |
IPsec VPN Throughput (3DES) | 180Mbps |
BASIC FUNCTIONS | |
---|---|
WAN Connection Type | Static/Dynamic IP, PPPoE/Russian PPPoE, PPTP/Russian PPTP, L2TP/Russian L2TP, Bigpond Cable |
DHCP | DHCP Server/Client DHCP Reservation |
MAC Clone | Modify WAN/LAN/DMZ MAC Address |
IPTV | Bridge, Custom |
IPv6 | IPv6 Support |
VLAN | 802.1Q VLAN, Port VLAN |
ADVANCED FUNCTIONS | |
---|---|
Load Balance | Intelligent Load Balance Link Backup (Timing, Failover) Online Detection |
NAT | One-to-One NAT Multi-nets NAT Virtual Server, DMZ Host, Port Triggering, UPnP FTP/H.323/SIP/IPsec/PPTP ALG |
Routing | Static Routing Policy Routing |
Traffic Control | IP-based Bandwidth Control Guarantee & Limited Bandwidth Time-scheduled Policy IP-based Session Limit |
VPN | |
---|---|
IPsec VPN | 100 IPsec VPN Tunnels LAN-to-LAN, Client-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm MD5, SHA1 Authentication Algorithm IPsec NAT Traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS) |
PPTP VPN | 50 PPTP VPN Tunnels PPTP VPN Server/Client PPTP with MPPE Encryption |
L2TP VPN | 50 L2TP VPN Tunnels L2TP VPN Server/Client L2TP over IPsec |
VPN Pass-through | IPsec (ESP), PPTP, L2TP |
SECURITY | |
---|---|
Attack Defense | TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN |
Filtering | MAC Filtering URL/Keywords Filtering |
ARP Inspection | Sending GARP Packets ARP Scanning by WAN/LAN IP-MAC Binding |
Access Control | Source/Destination IP Based Access Control |
MANAGEMENT | |
---|---|
Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) |
Maintenance | Web Management Interface Remote Management Export & Import Configuration SNMP Diagnostics(Ping & Traceroute) NTP Synchronize Syslog Support |
Web-based Management | Local User Authentication, Radius Sever Authentication, Onekey Online |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS |
Package Contents | TL-ER6120 Power Cord Rack-mount Kit Installation Guide |
System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 MAC OS, NetWare, UNIX or Linux |
Environment | Operating Temperature: 0_~40_ (32_~104_) Storage Temperature: -40_~70_ (-40_~158_) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
