TP-Link

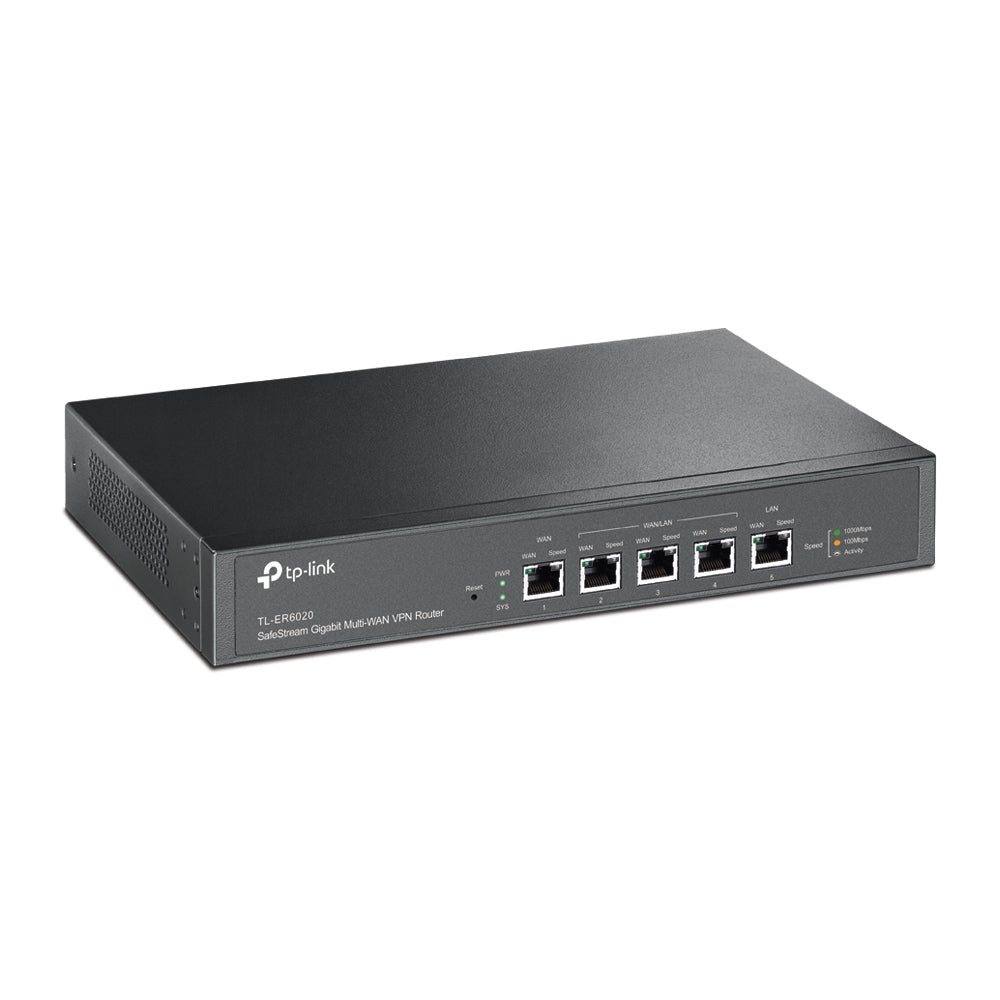

SafeStream™ Gigabit Dual-WAN VPN Router
SafeStream™ Gigabit Dual-WAN VPN Router
SKU:TL-ER6020
Low stock: 1 left
Shipping calculated at checkout.
Couldn't load pickup availability
- 64-bit dual core dedicated processor for outstanding performance
- 1 Gigabit WAN port, 3 Gigabit WAN/LAN ports and 1 Gigabit LAN port
- Supports multiple VPN protocols including IPsec/PPTP/L2TP, which helps users establish their VPN more flexibly
- Supports up to 64 IPsec VPN tunnels with a hardware-based VPN engine
- Captive portal provides a convenient method for guest authentication
- Abundant features including load balance, bandwidth control and access control
- Professional 4kV lightning protection keeps your investments as safe as possible1
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3, IEEE802.3u, IEEE802.3ab TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP |
| Interface | 1 Gigabit WAN port 3 Gigabit LAN/WAN ports 1 Gigabit LAN port |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) |
| Fan Quantity | Fanless |
| Button | Reset Button |
| Power Supply | Internal Universal Power Supply AC100-240V~ 50/60Hz Input |
| Flash | 32MB |
| DRAM | DDRIII 256MB |
| LED | PWR, SYS, Link/Act, Speed |
| Dimensions ( W x D x H ) | 11.6 x 7.1 x 1.7in. (294 x 180 x 44 mm) 13/19-inch Rack-Mount Width, 1U Height |
| PERFORMANCE | |
|---|---|
| Concurrent Session | 40K |
| NAT Throughput | 940Mbps |
| IPsec VPN Throughput (3DES) | 99Mbps |
| BASIC FUNCTIONS | |
|---|---|
| WAN Connection Type | Static/Dynamic IP PPPoE/Russian PPPoE PPTP/Russian PPTP L2TP/Russian L2TP Bigpond Cable |
| DHCP | DHCP Server/Client DHCP Address Reservation |
| MAC Clone | Modify WAN MAC Address |
| IPTV | Bridge, Custom |
| IPv6 | IPv6 Support |
| VLAN | 802.1Q VLAN, Port VLAN |
| TRANSMISSION | |
|---|---|
| Load Balance | Intelligent Load Balance Link Backup (Timing, Failover) Online Detection |
| NAT | One-to-One NAT Multi-nets NAT Virtual Server Port Triggering FTP/H.323/SIP/IPsec/PPTP ALG UPnP |
| Routing | Static Routing Policy Routing |
| Session Limit | IP-based Session Limit |
| Bandwidth Control | IP-based Bandwidth Control |
| VPN | |
|---|---|
| IPsec VPN | 64 IPsec VPN Tunnels LAN-to-LAN, Client-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm MD5, SHA1 Authentication Algorithm IPsec NAT Traversal (NAT-T) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS) |
| PPTP VPN | 16 PPTP VPN Tunnels PPTP VPN Server/Client PPTP with MPPE Encryption |
| L2TP VPN | 16 L2TP VPN Tunnels L2TP VPN Server/Client L2TP over IPsec |
| VPN Pass-through | IPsec (ESP), PPTP, L2TP |
| SECURITY | |
|---|---|
| Attack Defense | TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN |
| Filtering | MAC Filtering URL/Keywords Filtering |
| ARP Inspection | Sending GARP Packets ARP Scanning by WAN/LAN IP-MAC Binding |
| Access Control | Source/Destination IP Based Access Control |
| AUTHENTICATION | |
|---|---|
| Web Authentication | Local User Authentication, Radius Sever Authentication, Onekey Online |
| MANAGEMENT | |
|---|---|
| Service | Dynamic DNS (DynDNS and No-IP) |
| Maintenance | Web Management Interface Remote Management Export & Import Configuration SNMP Diagnostics(Ping & Traceroute) NTP Synchronize Syslog Support |
| OTHERS | |
|---|---|
| Certification | FCC, RoHS |
| Package Contents | TL-ER6020 Power Cord Rack-mount Kit Installation Guide |
| Environment | Operating Temperature: 0_~40_ (32_~104_) Storage Temperature: -40_~70_ (-40_~158_) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
