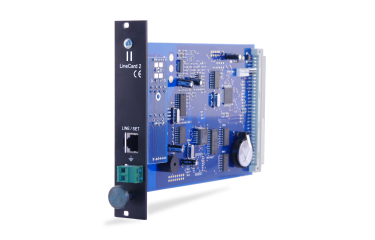

SECOLink Line Card for Secolink CMS Receiver
SECOLink Line Card for Secolink CMS Receiver
SKU:LC2
Low stock: 1 left
Shipping calculated at checkout.
Couldn't load pickup availability
Line card for Secolink CMS receiver
- • support PSTN & PABX line
| Telephone lines | 1 |
| Event log buffer for events and caller ID's | 500 |
| Supporting users | 1 card - until 150 users, 2 cards - until 500 users (if telephone station is in PBX) |
| Speed | It depends on communication format and alarm control panel. |
| Two-way audio communication | Yes |
| Continous monitoring by central processing card | Yes |
| Immediate troubles displaying at LCD display | Yes |
| Standalone mode | If it detects trouble with CPM (Central Processing Card) LC2 automatically switches to standalone operation mode. In this case it continues event receiving, but stores them in its own memory. All received events will be sent automatically to CPM when the connection is restored. |
| Overall dimensions W x H x D in mm | 25 x 127 x 180 |
| Environmental compliance | ROHS |
| Operating temperature | From +10oC to +30oC |
| Weight | 119 grams |
| LC2 communication formats | ||||||
| Name | HSK | Data | Speed | Format | Ext | Kissoff |
| Ademco Slow | 1400 Hz | 1900 Hz Pulse | 10 bps | 3/1, 3/2, 4/1, 4/2 | + | 1400 Hz |
| Silent Knight Fast | 1400 Hz | 1900 Hz Pulse | 14 bps | 3/1, 3/2, 4/1, 4/2 | + | 1400 Hz |
| Franklin Sescoa | 2300 Hz | 1800 Hz Pulse | 20 bps | 3/1, 3/2, 4/1, 4/2 | + | 2300 Hz |
| Radionics | 1400 Hz | 1800 Hz Pulse | 40 bps | 3/1, 4/2, 3/1+p, 4/2+p | + | 1400 Hz |
| Radionics | 2300 Hz | 1800 Hz Pulse | 40 bps | 3/1, 4/2, 3/1+p, 4/2+p | + | 2300 Hz |
| Sescoa SuperSpeed | Dual | 1800 Hz Pulse | 40 bps | 4/3+p | - | 2300 Hz |
| Contact ID | 2300 Hz | DTMF | Contact ID | - | 1400 Hz | |
| Sur-Gard | Dual | DTMF | 4/1, 4/2, 4/3, 4/3+p* | - | 2300 Hz | |
| Sur-Gard 1400 | Dual | DTMF | 4/1, 4/2, 4/3, 4/3+p* | - | 1400 Hz | |
| Ademco Express | Dual | DTMF | 4/2 | - | 1400 Hz | |
| Acron DTMF | Dual | DTMF | 4/8 | - | 1400 Hz | |
| Ademco HighSpeed | Dual | DTMF | 4/8/1 | - | 1400 Hz | |
| SIA FSK level 1, 2, 3 | FSK mark | FSK 110-300 | baud | SIA data packets | - | tone/data |
| BodyGuard CID 2W | DTMF | DTMF | Contact ID | - | DTMF | |
| NGN FB Request | 2100 Hz | - | - | - | - | - |
* Receiving of the format depends on telephone line card settings.
