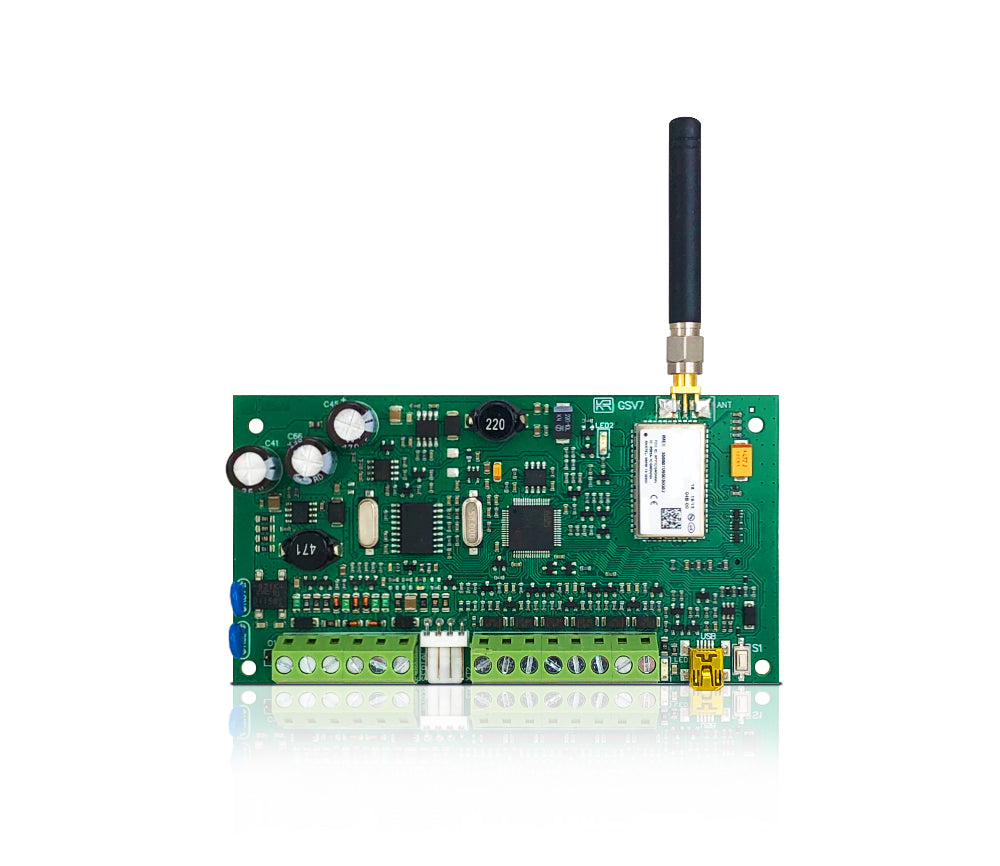

SECOLink Universal GSM/GPRS Communicator GSV7
SECOLink Universal GSM/GPRS Communicator GSV7
SKU:GSV7
Low stock: 1 left
Shipping calculated at checkout.
Couldn't load pickup availability
Secolink 4G - Universal GSM/GPRS communicator
| Description | Versatile GSM/GPRS communicator |
| 3 different versions | • GSV7 for 2G (900/1800. Europe, Asia, Africa, Brazil) • GSV7.4X for 2G, 3G (multi region) • GSV7.M1 for 2G, CAT M1, IoT NB (multi region) |
| Product type | Communicator |
|
In-built wired zones on board |
6 |
| On-Board (open collector type) PGM | 2 |
| Reporting to CMS format | CID by GPRS |
| Reporting protocols for CMS | E2 (Enigma), FIBRO (Sur-gard), CSV (Patriot), SIA |
| Compatibility with control panels via KEYBUS | PC5xx, PC14xx, PC15xx, PC16xx, PC18xx |
| Compatibility with control panels via SERIAL | SP4xxx, SP6xxx, SP7xxx, EVOxxx, MG5xxx |
| Compatible with SG-SYSTEM II , III IP card | Yes |
| Alarm message for end user | SECOLINK PRO app, GSM call, SMS |
| Available language for voice guide |
English (available other languages) |
| Available language for SMS |
English (available other languages) |
| DTMF converting from PSTN to GPRS | Yes (one way) |
| Available in plastic enclosure |
Yes |
| Maximum current into -PGM1 | -0.05 A |
| Maximum current into -PGM2 | -0.05 A |
| Power supply | |
| Power supply | 12-19V (DC) or 16.5V (AC) |
| Current consumption | 50 mA |
| Current consumption with all PGM's | 260 mA |
| Overall dimensions W x H in mm | 120 x 64 |
|
Environmental compliance |
ROHS |
| Operating temperature |
From -10oC to +50oC |
| Interface for communicator settings programming |
USB, SMS messages |
| Interface for communicator firmware updating |
USB, GPRS |
